Electrical Specification

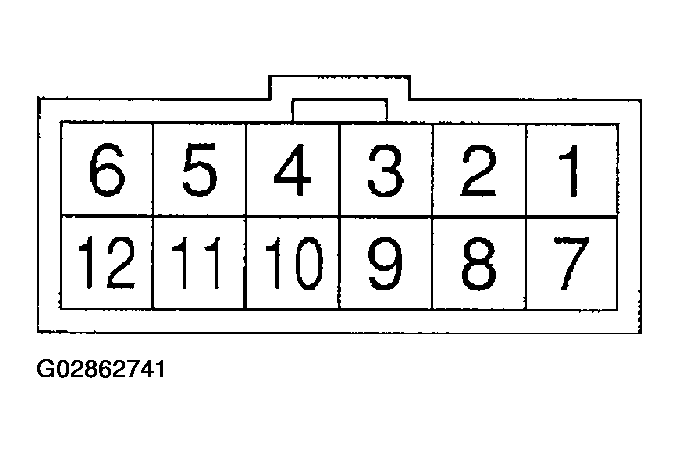

Fig 1: Identifying AT Shift Lock System Connector Terminals
G02862741Courtesy of SUBARU OF AMERICA, INC.

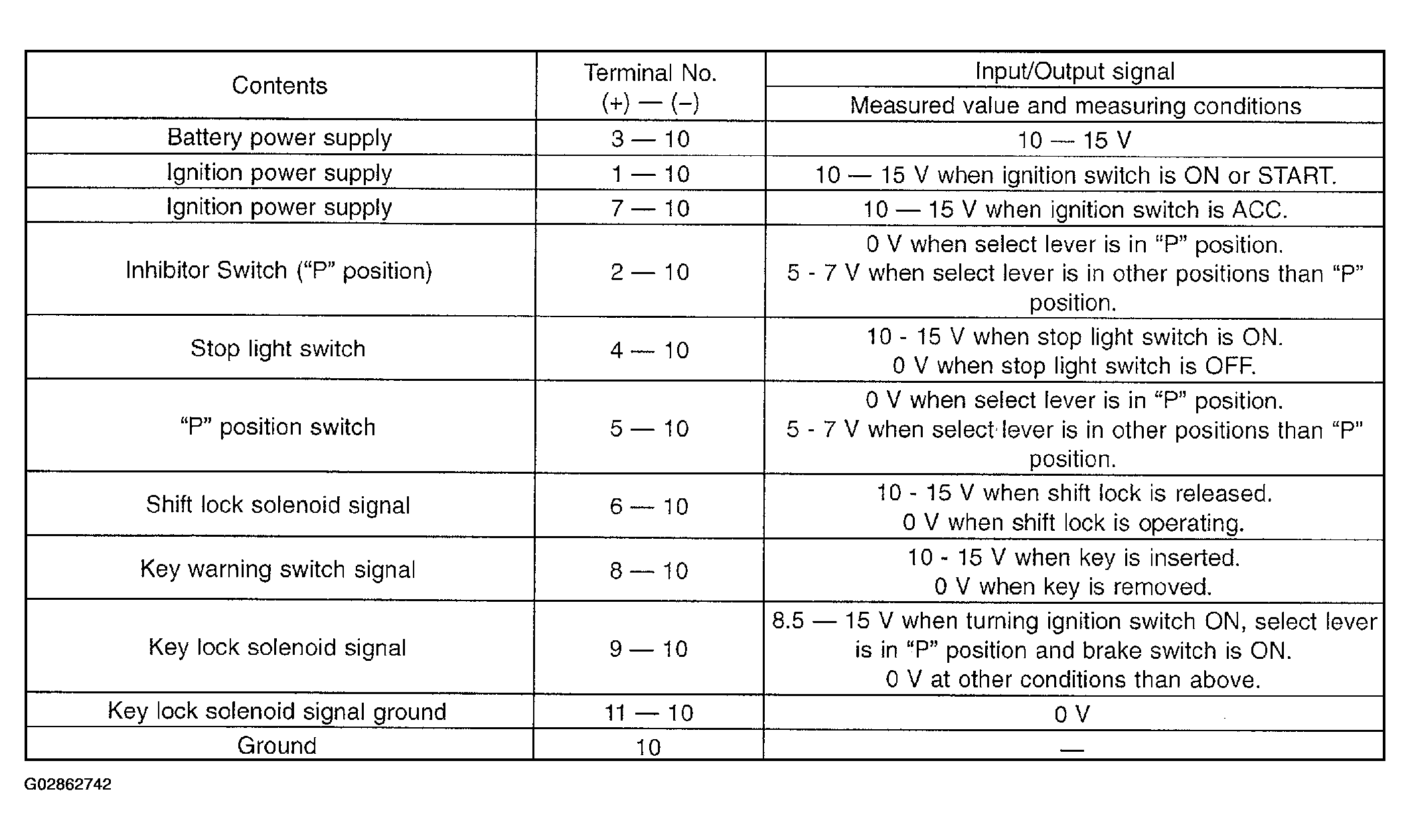

Fig 2: AT Shift Lock System Connector Terminals Specification
G02862742Courtesy of SUBARU OF AMERICA, INC.
