Select Cable: Installation

  1. Install select cable to plate assembly.

    Tightening torque:  32 N.m (3.3 kgf-m, 24 ft-lb)

  2. Install select cable to range select lever.
  3. Install plate assembly to transmission.

    Tightening torque:

    1. T:  24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

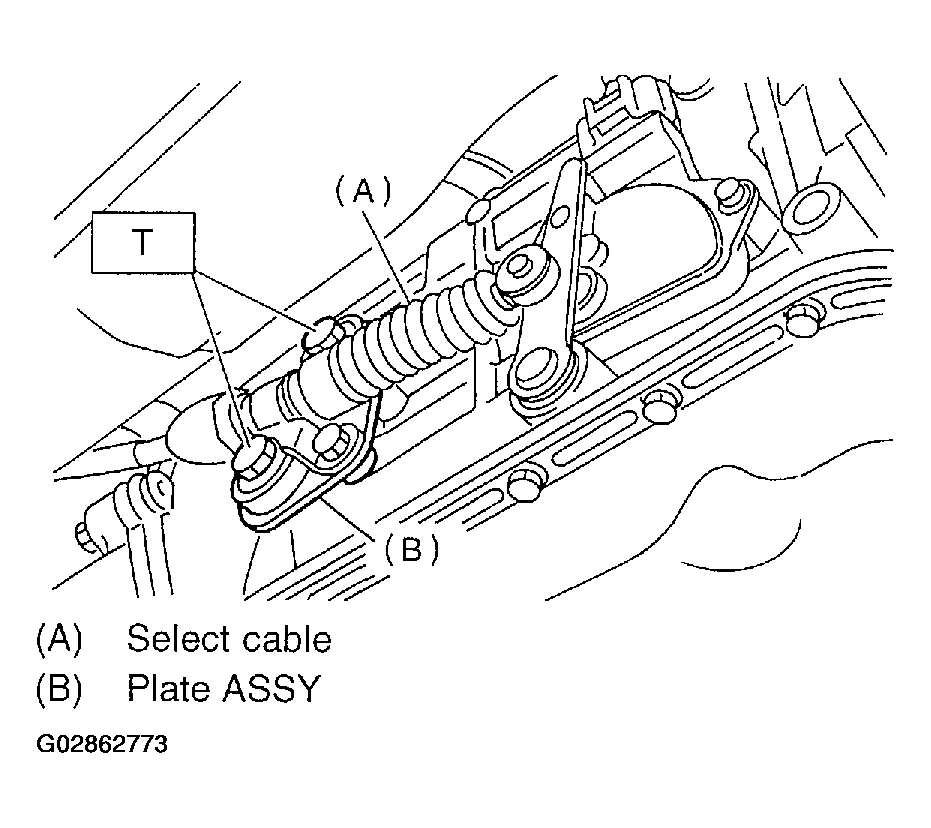

    Fig 1: Installing Plate Assembly To Transmission
    G02862773Courtesy of SUBARU OF AMERICA, INC.
  4. Install snap pin to range select lever.

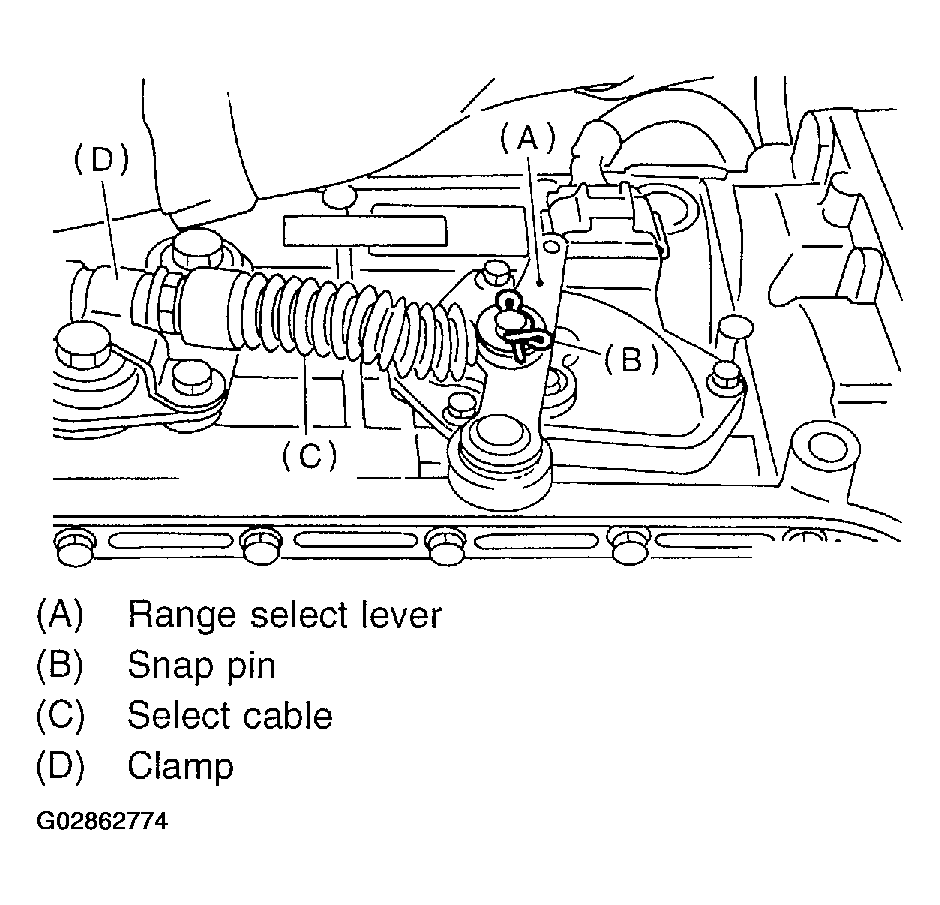

    Fig 2: Installing Snap Pin To Range Select Lever
    G02862774Courtesy of SUBARU OF AMERICA, INC.
  5. Move the select lever to the "N" position, then adjust the select cable position. ADJUSTMENT under Select Cable  .
  6. Install heat shield cover.

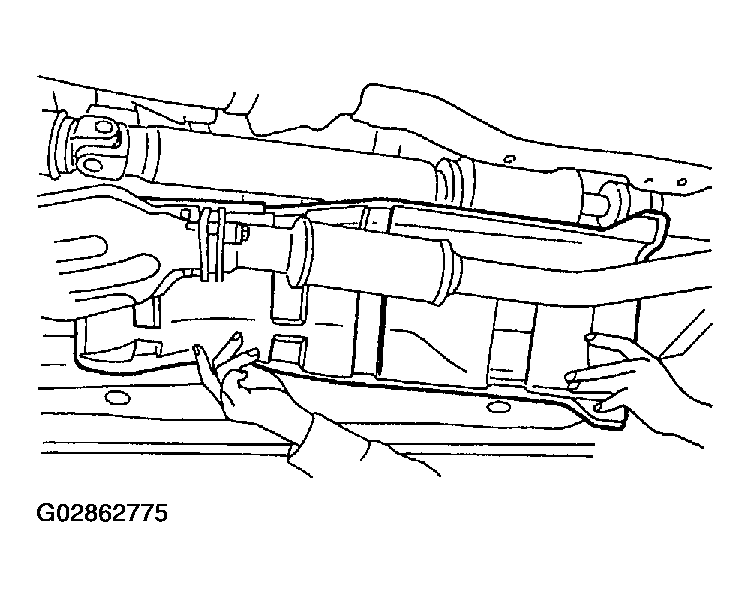

    Fig 3: Installing Heat Shield Cover
    G02862775Courtesy of SUBARU OF AMERICA, INC.
