Home >> Subaru >> 2002 >> Forester L, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems) >> Throttle Position Sensor >> Removal

Throttle Position Sensor: Removal

  1. Disconnect battery ground cable.

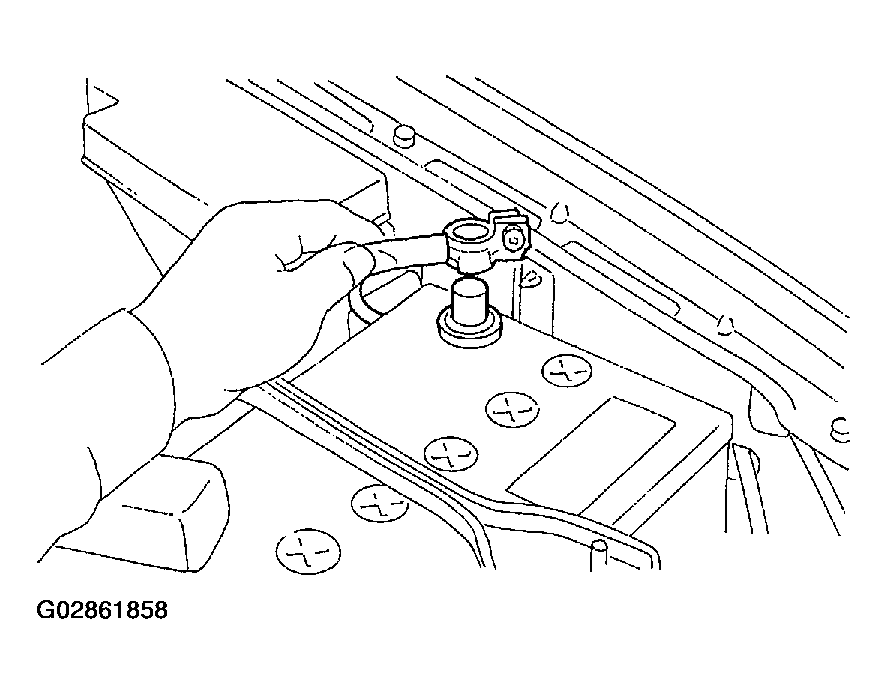

    Fig 1: Disconnecting Battery Ground Cable
    G02861858Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from throttle position sensor.

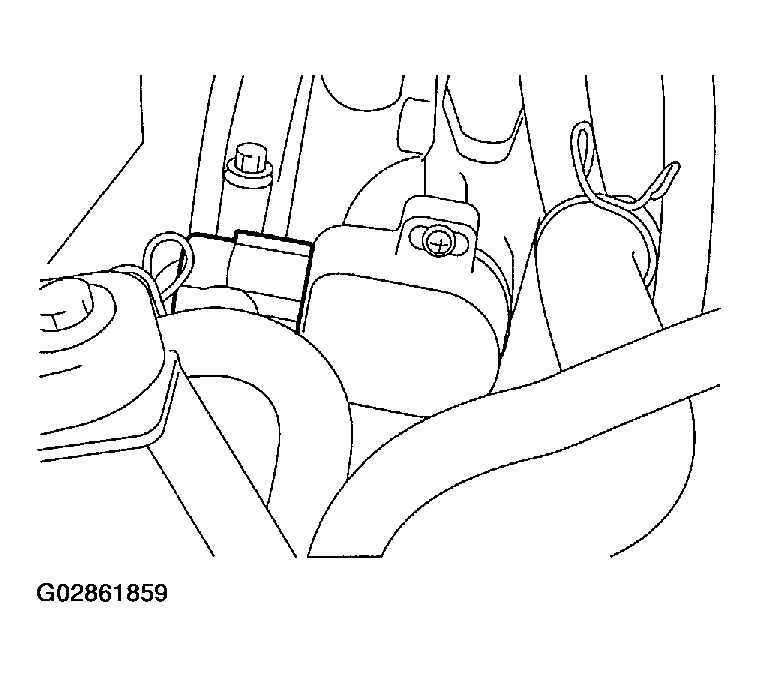

    Fig 2: Disconnecting Connector From Throttle Position Sensor
    G02861859Courtesy of SUBARU OF AMERICA, INC.
  3. Remove throttle position sensor holding screws, and remove it.

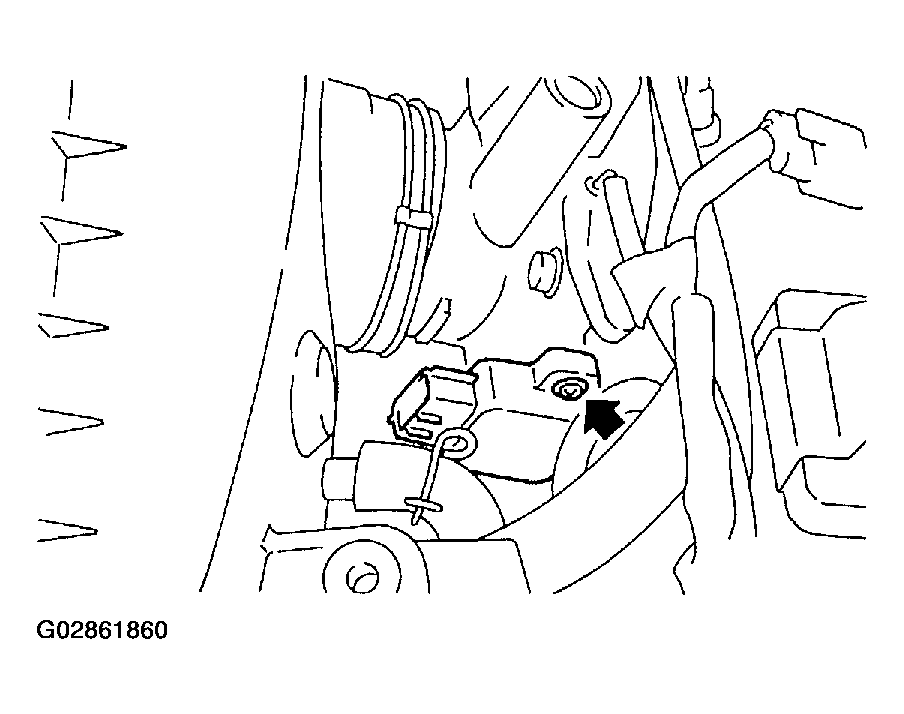

    Fig 3: Removing Throttle Position Sensor
    G02861860Courtesy of SUBARU OF AMERICA, INC.
