Sensor Gap

Clearances (sensor gaps) should be measured one by one to ensure the tone wheel and speed sensor are installed correctly.

NOTE:
  • If clearance is narrow, adjust by using the spacer (Part No. 26755AA000).
  • If clearance is wide, check the outputted voltage then replace the ABS sensor or tone wheel if the outputted voltage is outside the specification.

ABS sensor clearance:  0.7 - 1.2 mm (0.028 - 0.047 in)

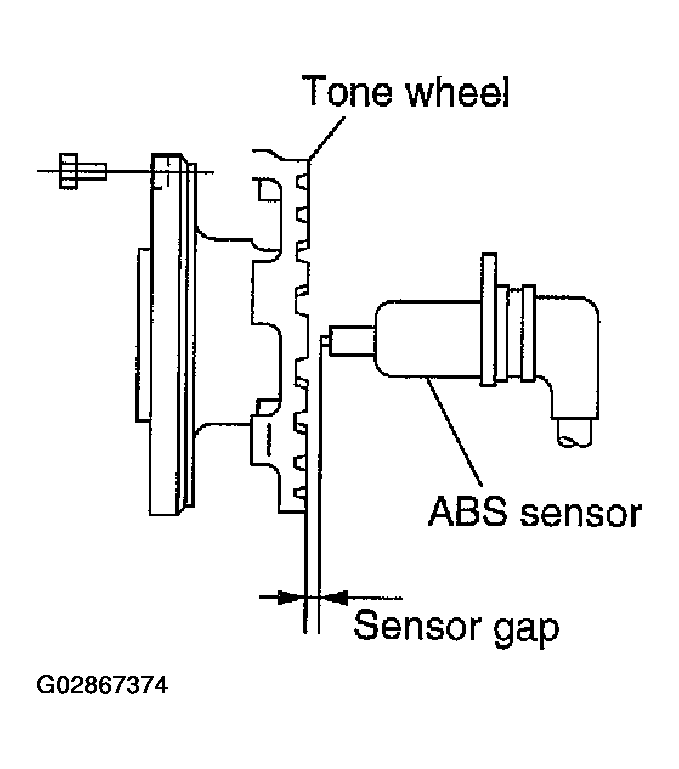

Fig 1: Measuring ABS Sensor Clearance
G02867374Courtesy of SUBARU OF AMERICA, INC.
