Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

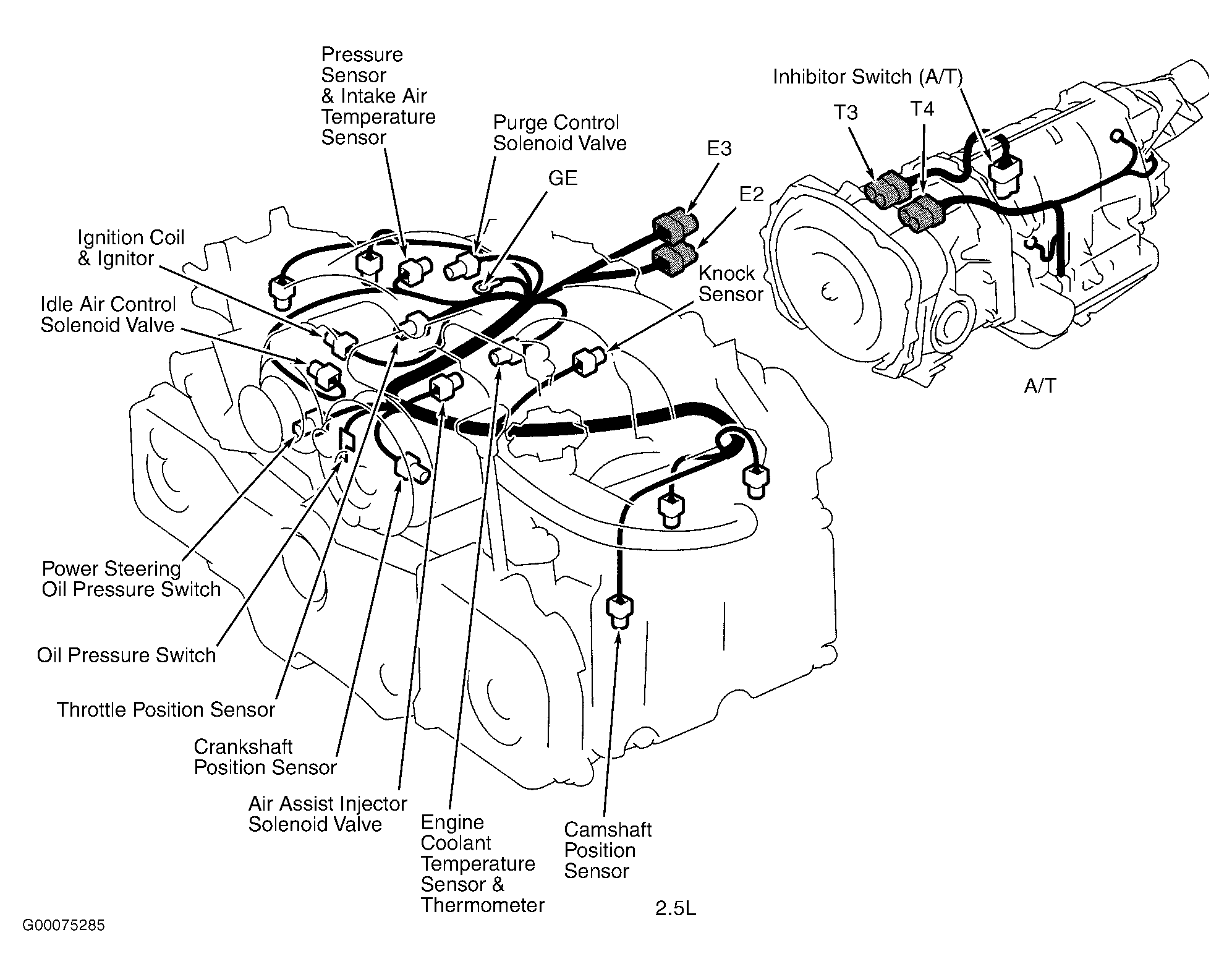

Fig 1: Engine (2.5L)

Courtesy of SUBARU OF AMERICA, INC.

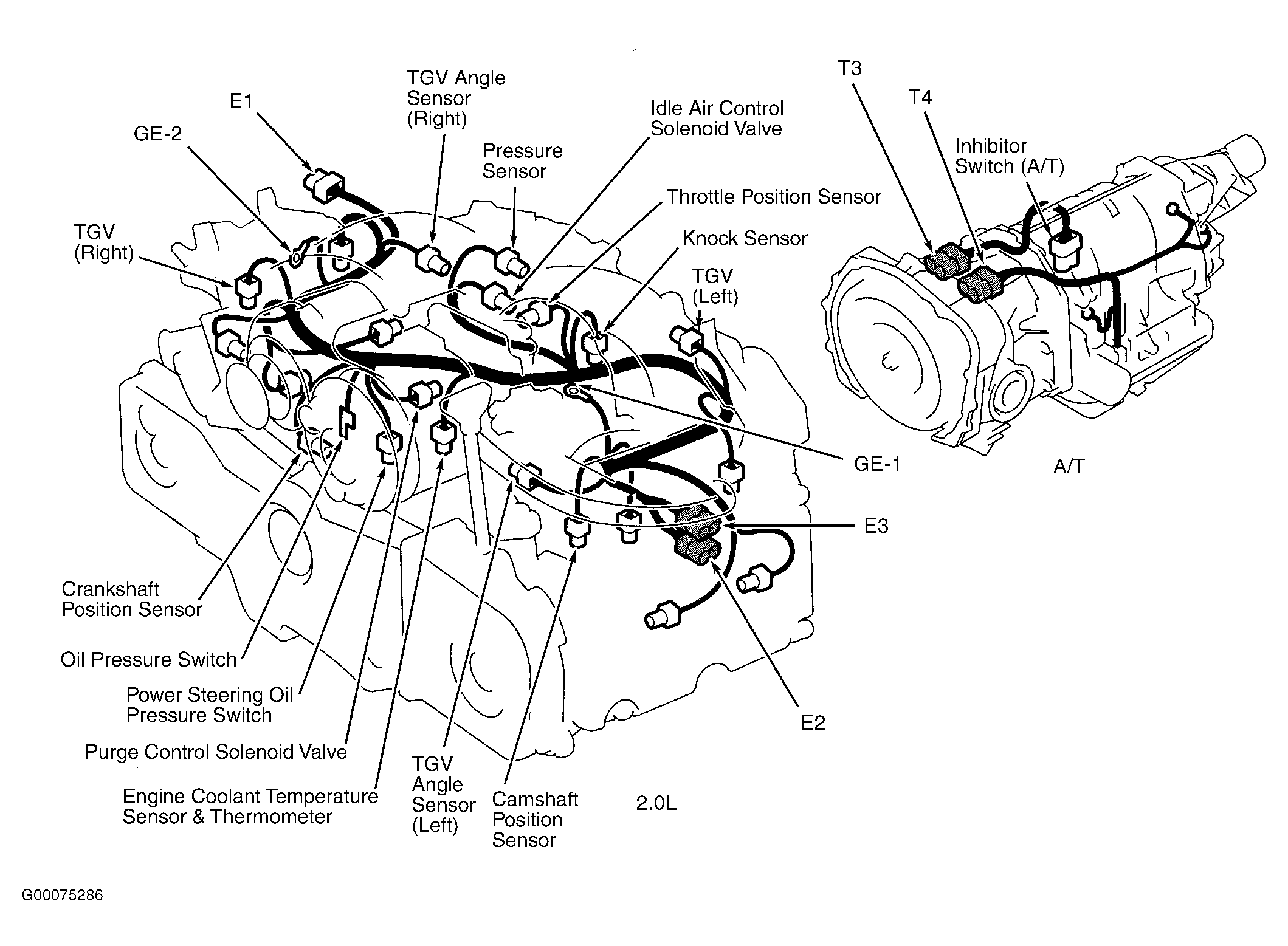

Fig 2: Engine (2.0L)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Engine Compartment (2.5L)

Courtesy of SUBARU OF AMERICA, INC.

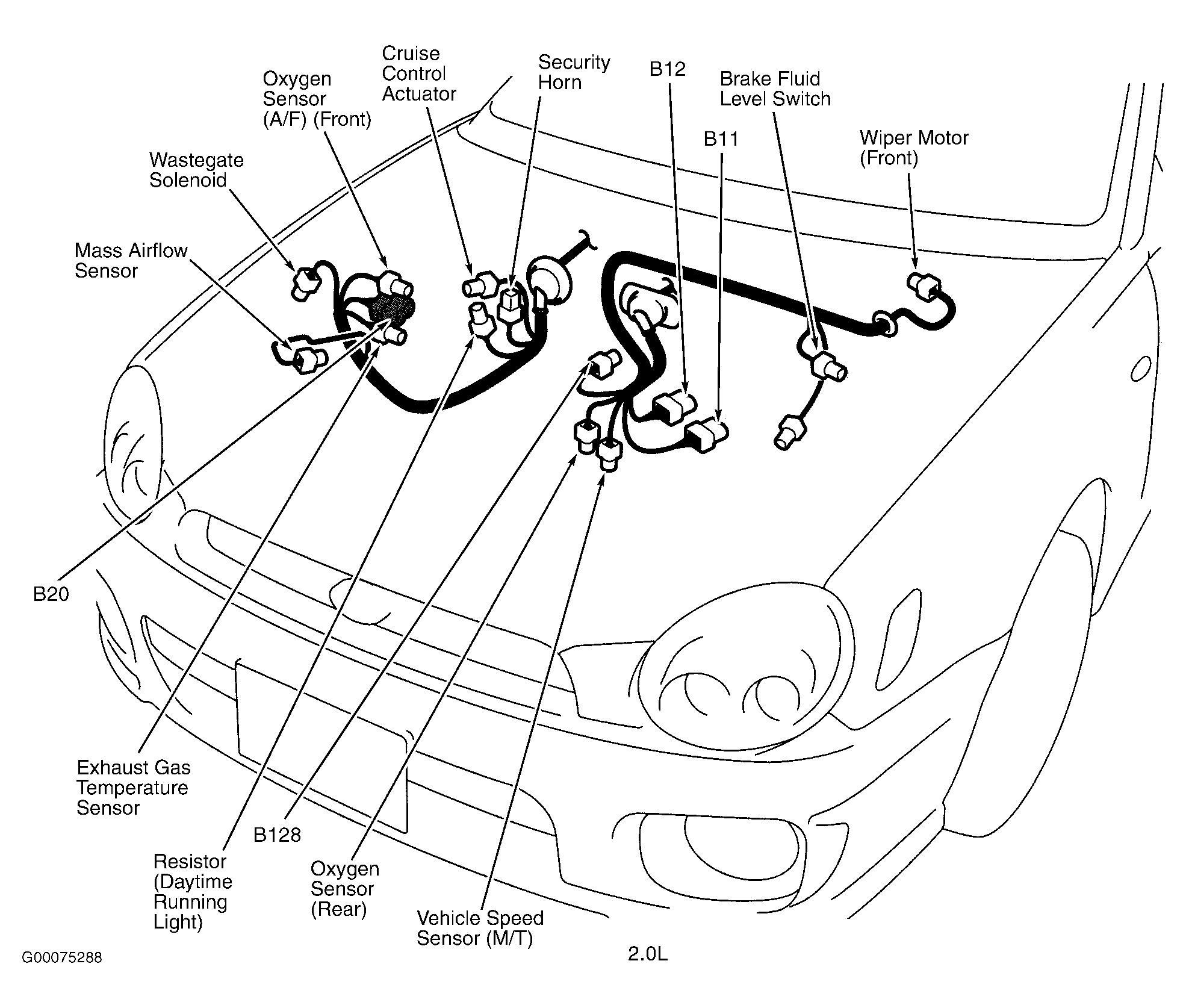

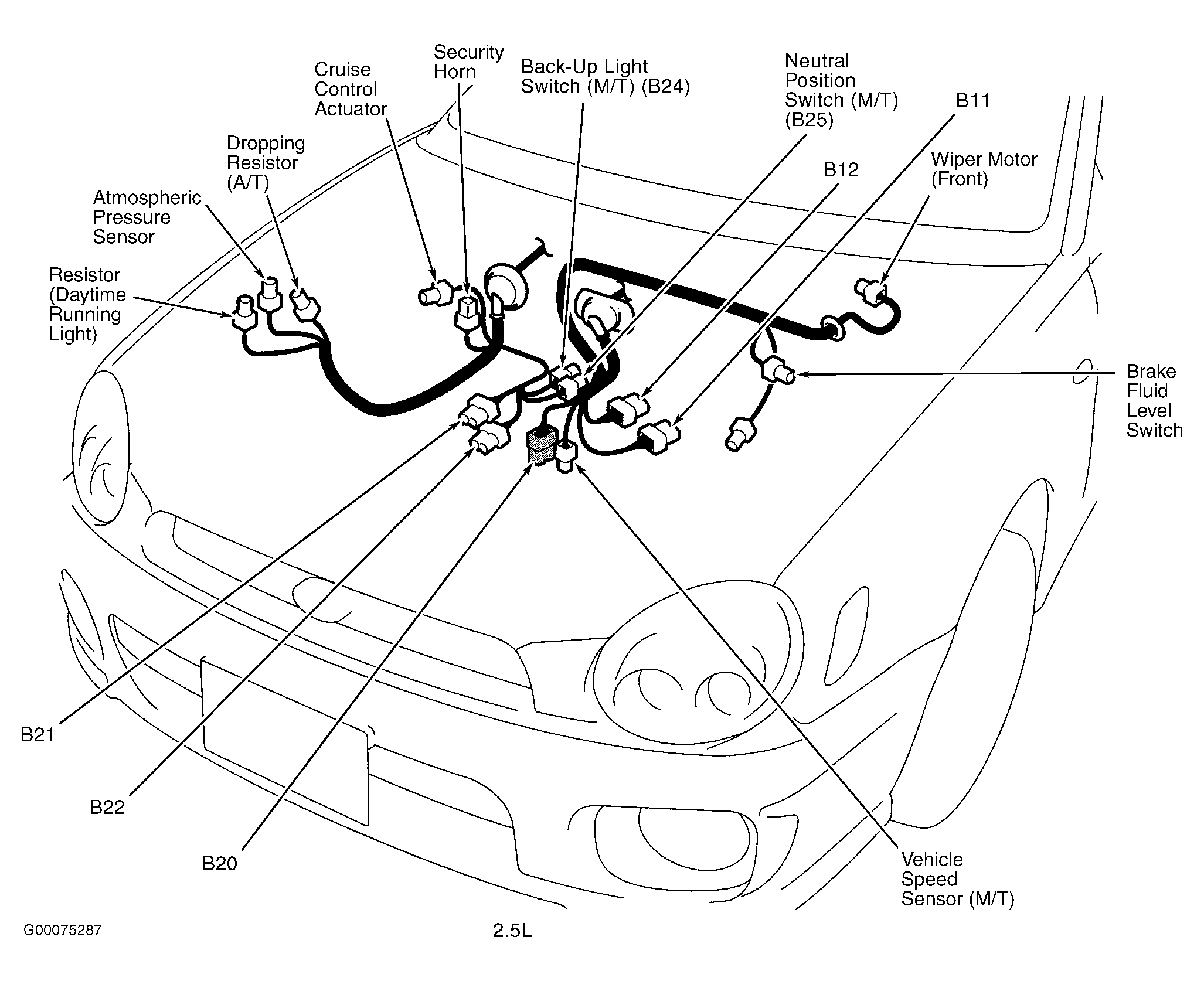

Fig 4: Engine Compartment (2.0L)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Vehicle Overview

Courtesy of SUBARU OF AMERICA, INC.

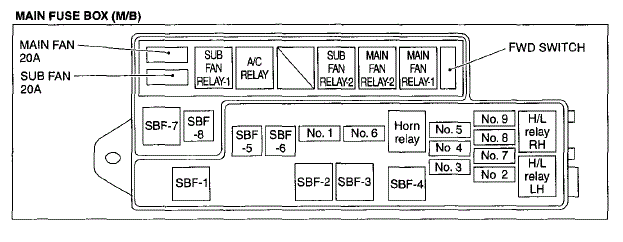

Fig 6: Main Fuse Box

Courtesy of SUBARU OF AMERICA, INC.
