Electrical Specification

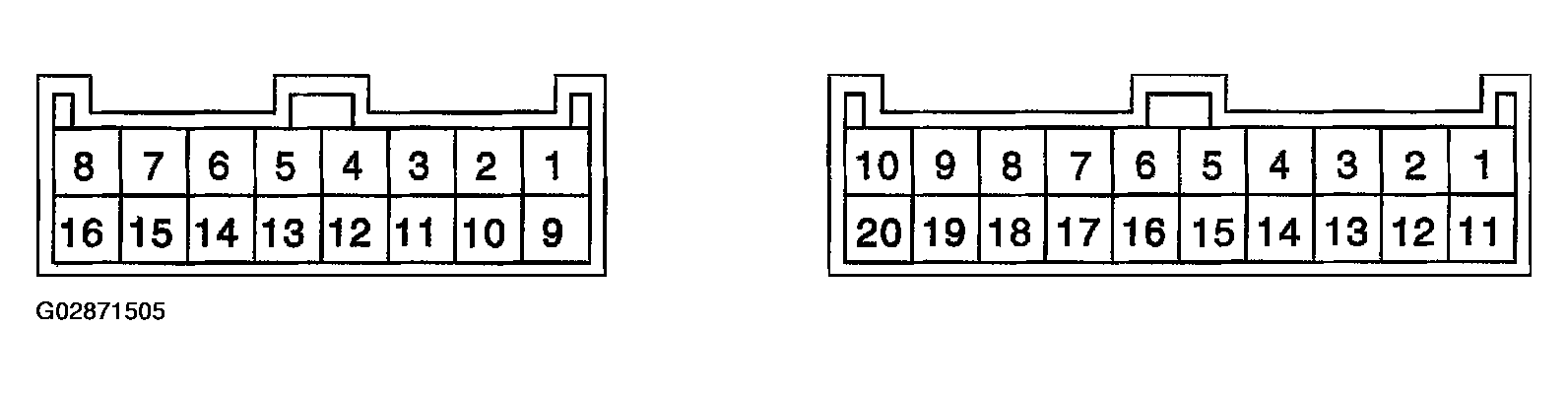

Fig 1: Identifying Terminals Of AT Shift Lock System
G02871505Courtesy of SUBARU OF AMERICA, INC.

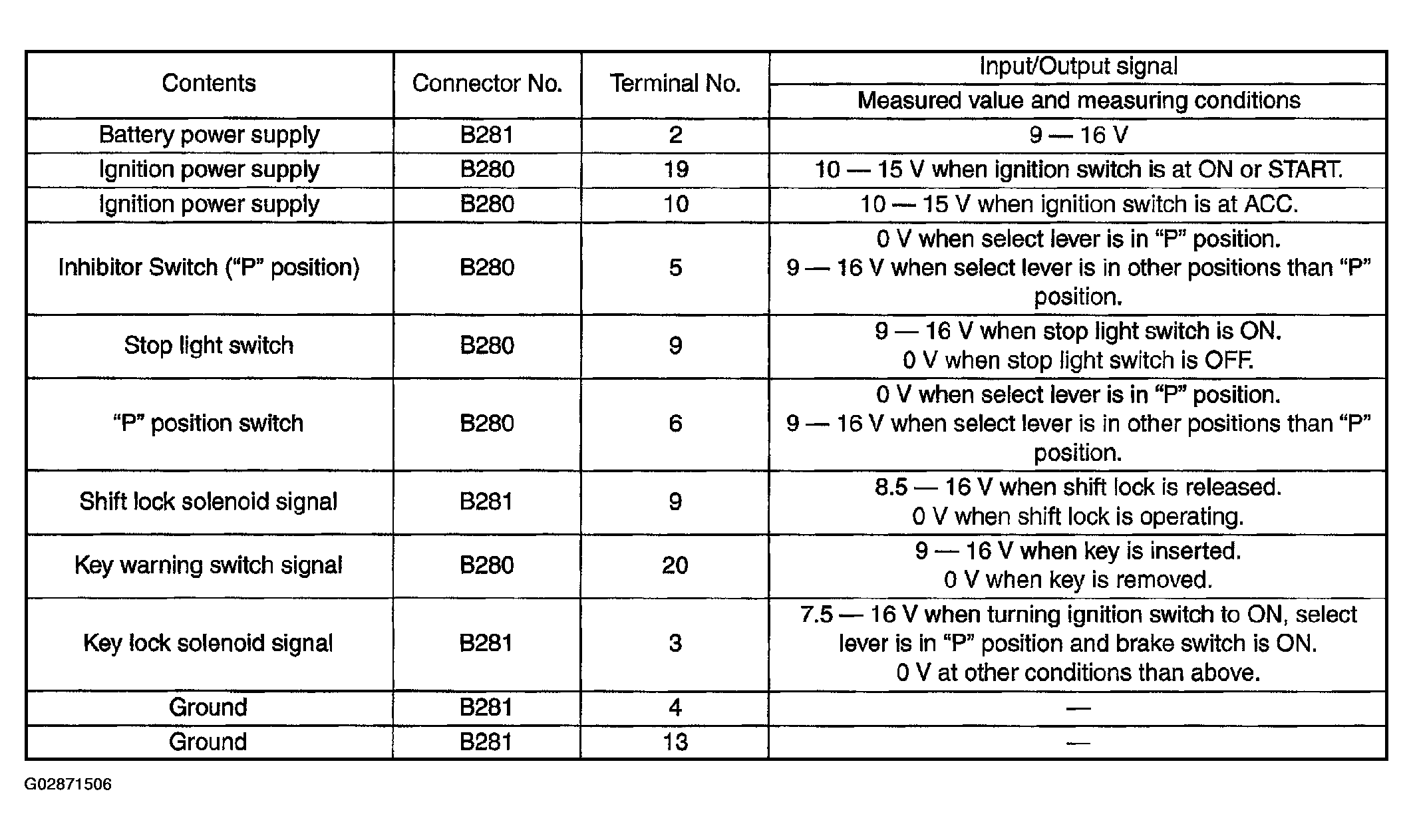

Fig 2: AT Shift Lock System Pin Voltage Chart
G02871506Courtesy of SUBARU OF AMERICA, INC.
