AT Shift Lock System: Schematic

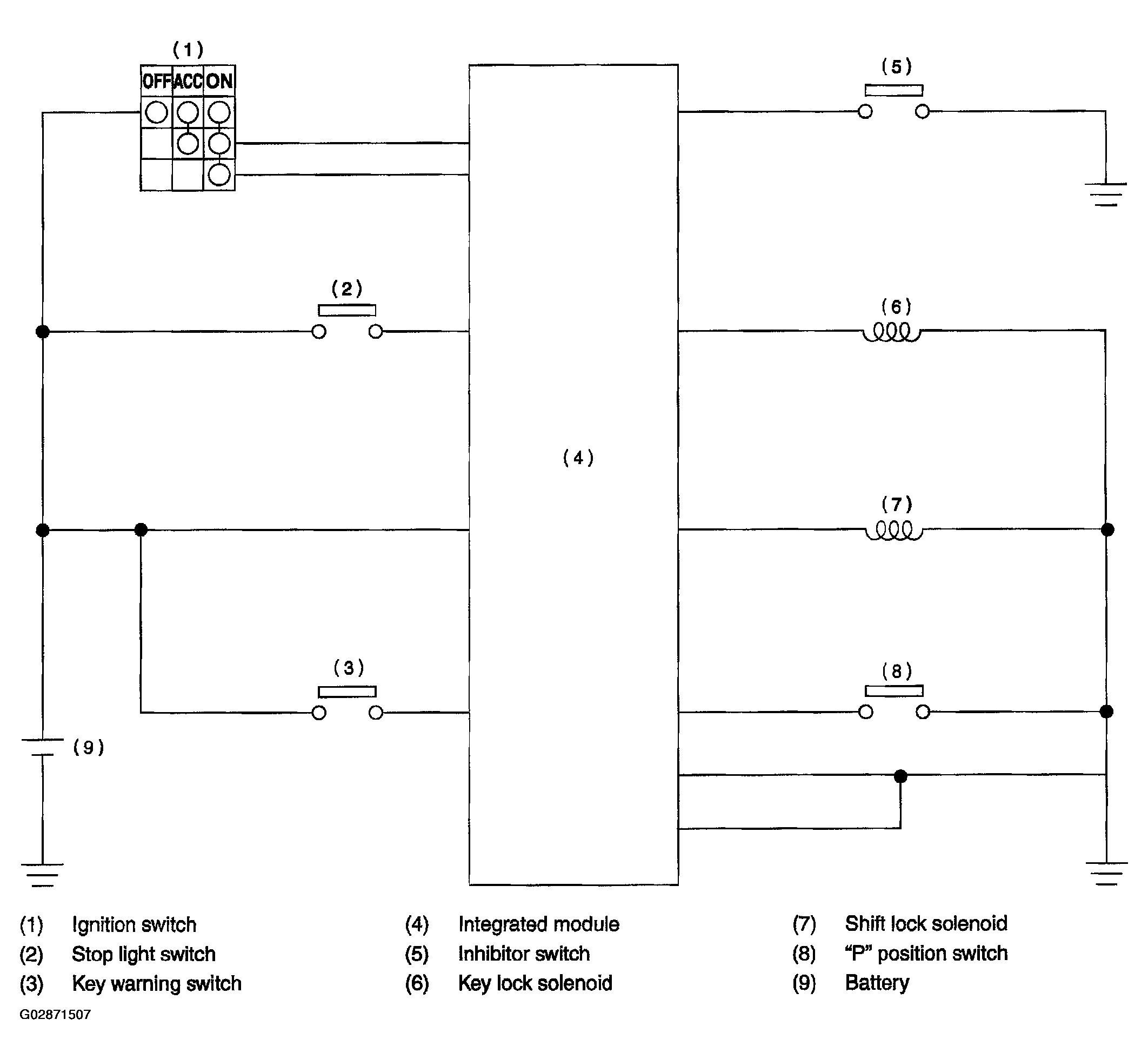

Fig 1: Schematic - AT Shift Lock System

G02871507

Courtesy of SUBARU OF AMERICA, INC.
