Home >> Subaru >> 2002 >> Impreza TS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs >> Front Abs Sensor >> Inspection >> Abs Sensor

Abs Sensor

  1. Check the pole piece of the ABS sensor for foreign particles or damage. If necessary, clean the pole piece or replace the ABS sensor.
  2. Measure the ABS sensor resistance.

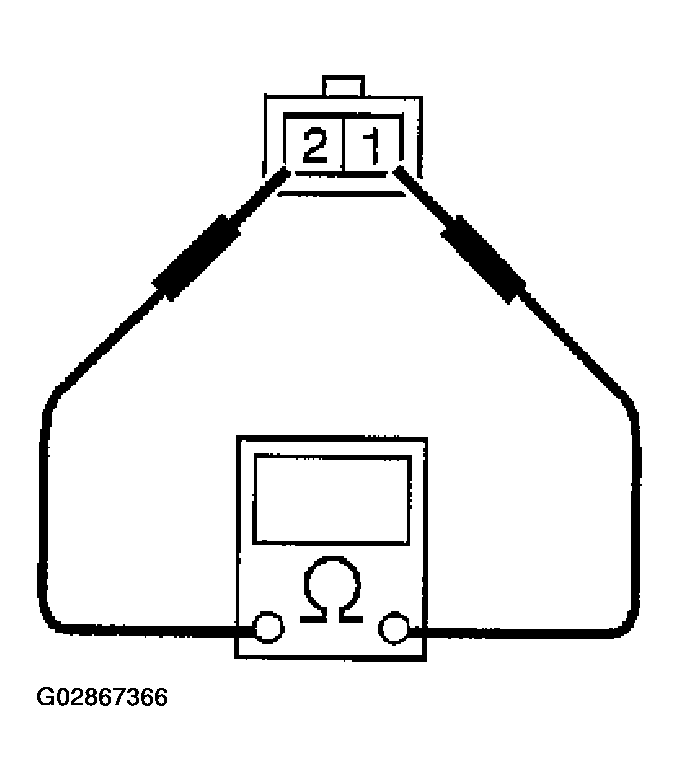

    Fig 1: Measuring ABS Sensor Resistance
    G02867366Courtesy of SUBARU OF AMERICA, INC.
    ABS SENSOR RESISTANCE SPECIFICATION

    Terminal No. Standard
    1 and 2 1.25 +/- 0.25 kΩ
CAUTION: If resistance is outside the standard value, replace the ABS sensor with a new one.
NOTE: Check the ABS sensor cable for discontinuity. If necessary, replace with a new one.
