Front Abs Sensor: Removal

  1. Disconnect the ground terminal from battery.
  2. Jack-up the vehicle, support it with rigid racks, and remove the wheel.
  3. Disconnect the front ABS sensor connector located next to the front strut mounting house in engine compartment.
  4. Remove the bolts which secure sensor harness to strut.

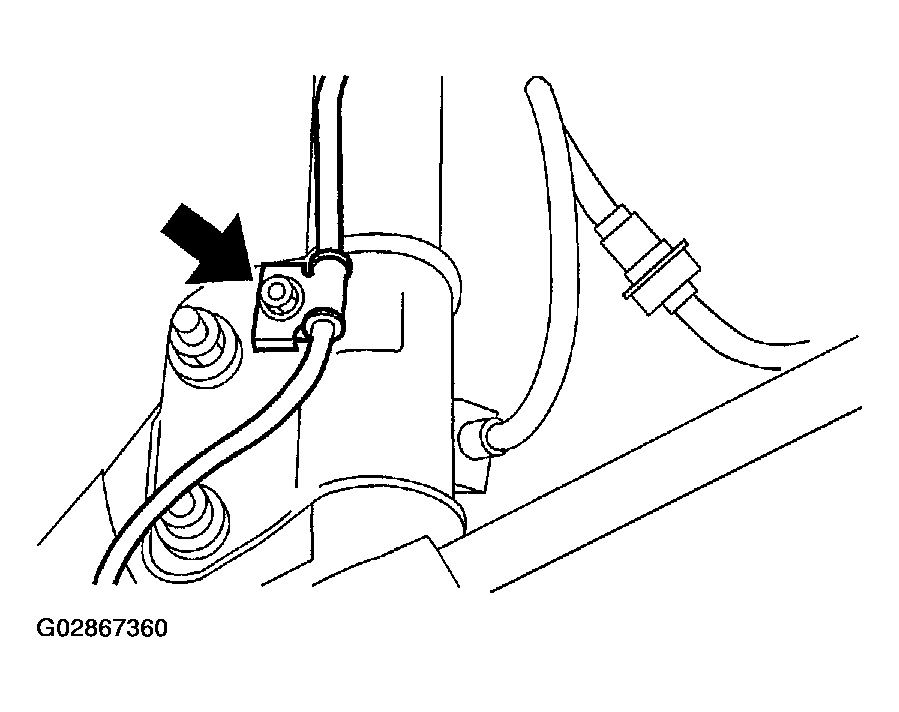

    Fig 1: Removing Bolts Securing Sensor Harness To Struts
    G02867360Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolts which secure sensor harness to body.

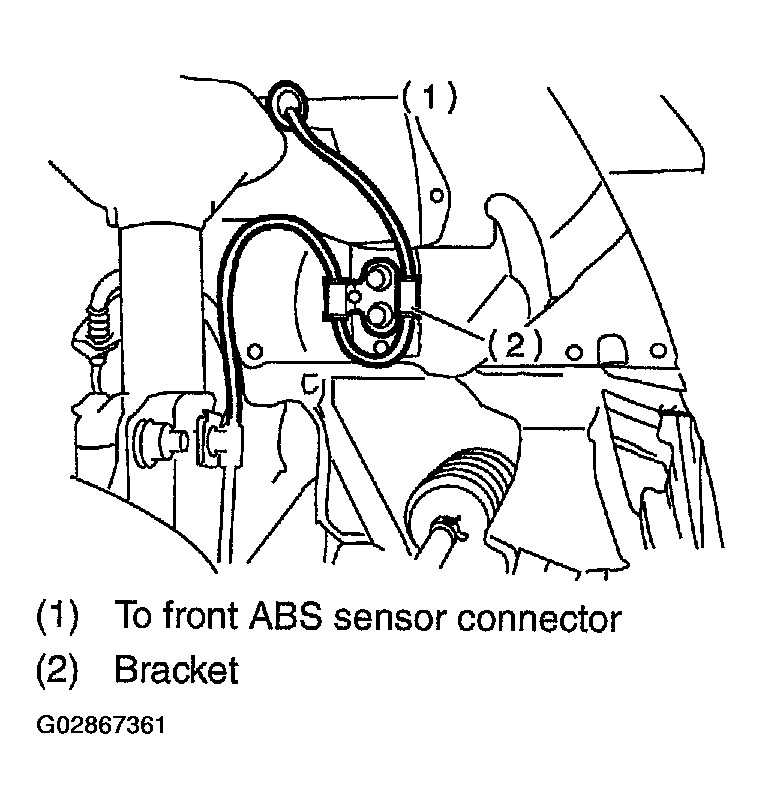

    Fig 2: Removing Bolts Securing Sensor Harness To Body
    G02867361Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bolts which secure front ABS sensor to housing, and remove the front ABS sensor.
    CAUTION:
    • Be careful not to damage the pole piece located at tip of the sensor and teeth faces during removal.
    • Do not pull the sensor harness during removal.

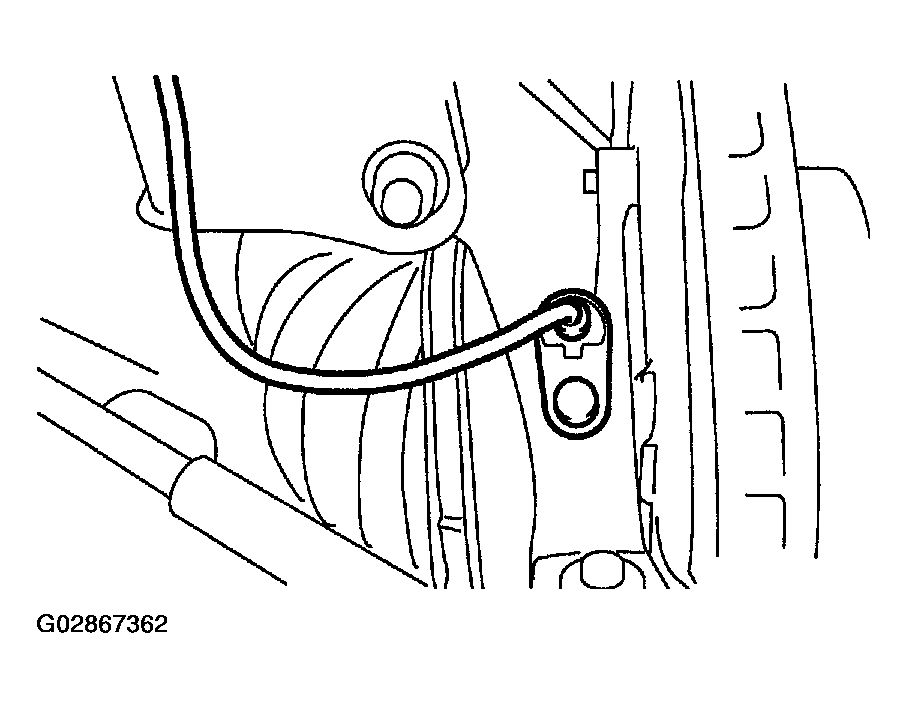

      Fig 3: Removing Front ABS Sensor From Housing
      G02867362Courtesy of SUBARU OF AMERICA, INC.
