Traction Control: Abs: Sensor: Removal

  1. Disconnect the ground terminal from battery.

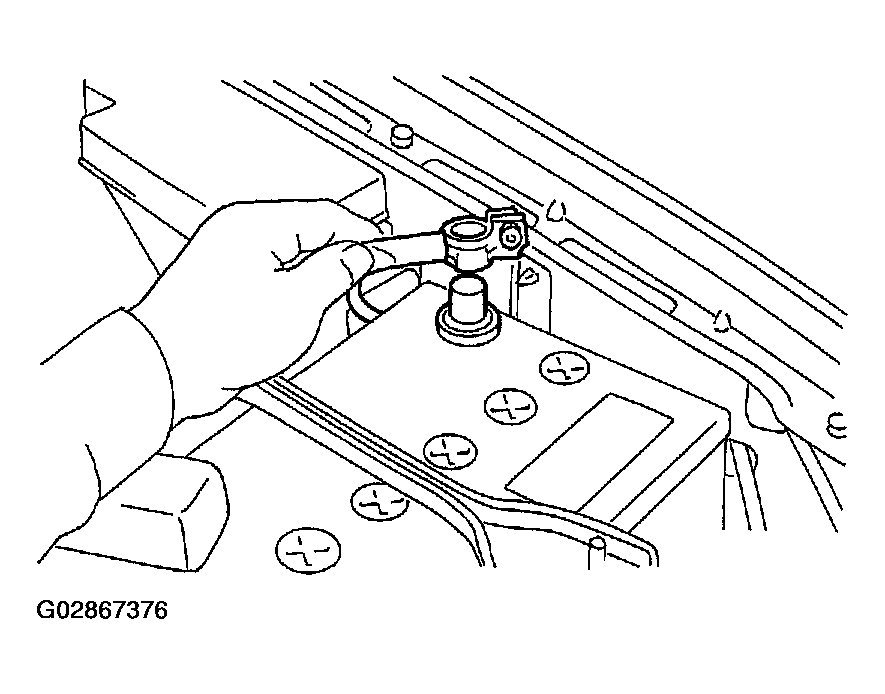

    Fig 1: Disconnecting Ground Terminal From Battery
    G02867376Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the console cover.

    < Ref. to REMOVAL , Console Box.>

  3. Disconnect the connector from G sensor.
  4. Remove the G sensor from body.
    CAUTION: Do not drop or bump the G sensor.

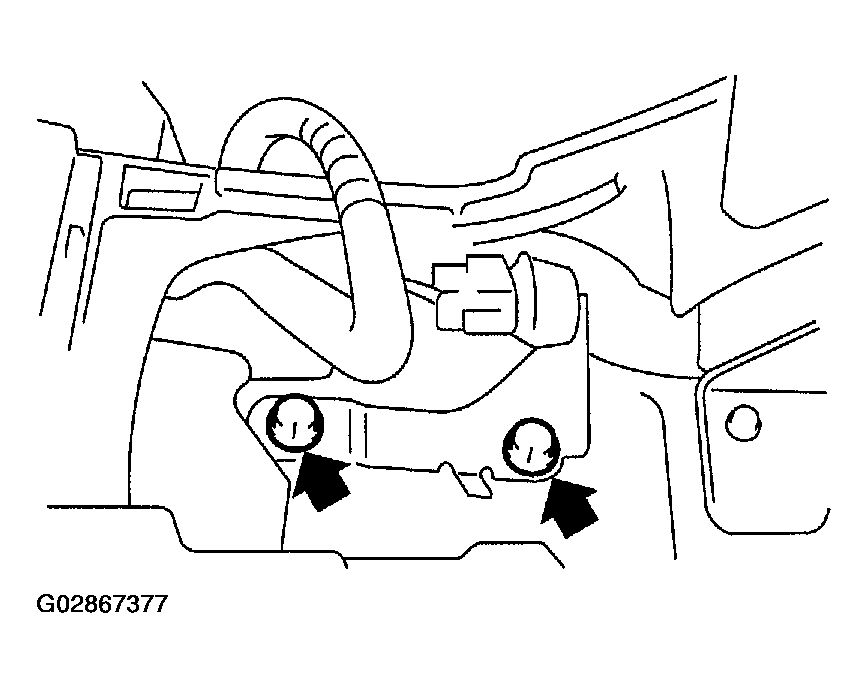

    Fig 2: Removing G Sensor From Body
    G02867377Courtesy of SUBARU OF AMERICA, INC.
