Integrated Module: Removal

  1. Disconnect the ground terminal from battery.

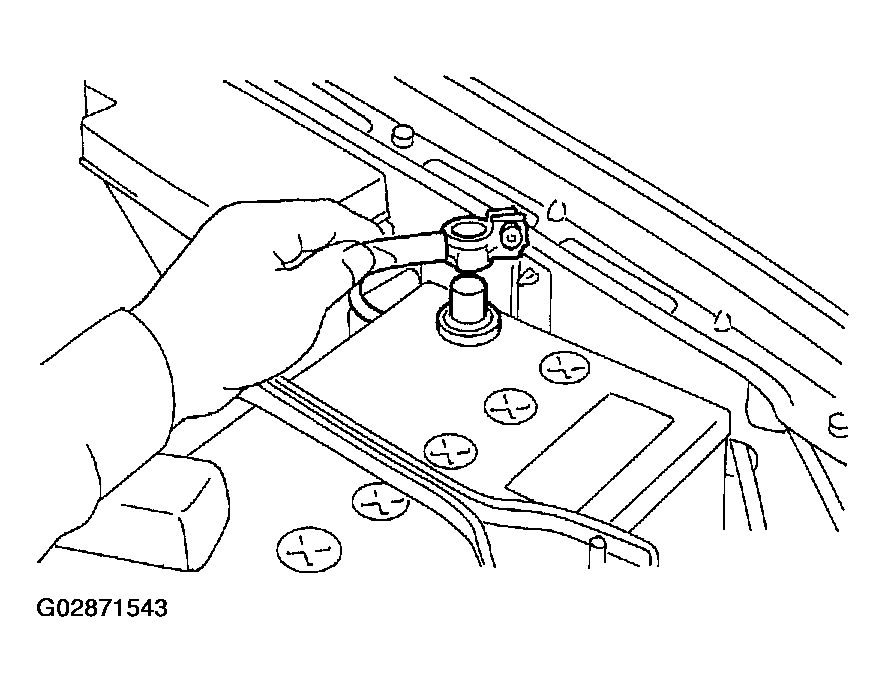

    Fig 1: Disconnecting Ground Terminal From Battery
    G02871543Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the lower cover.

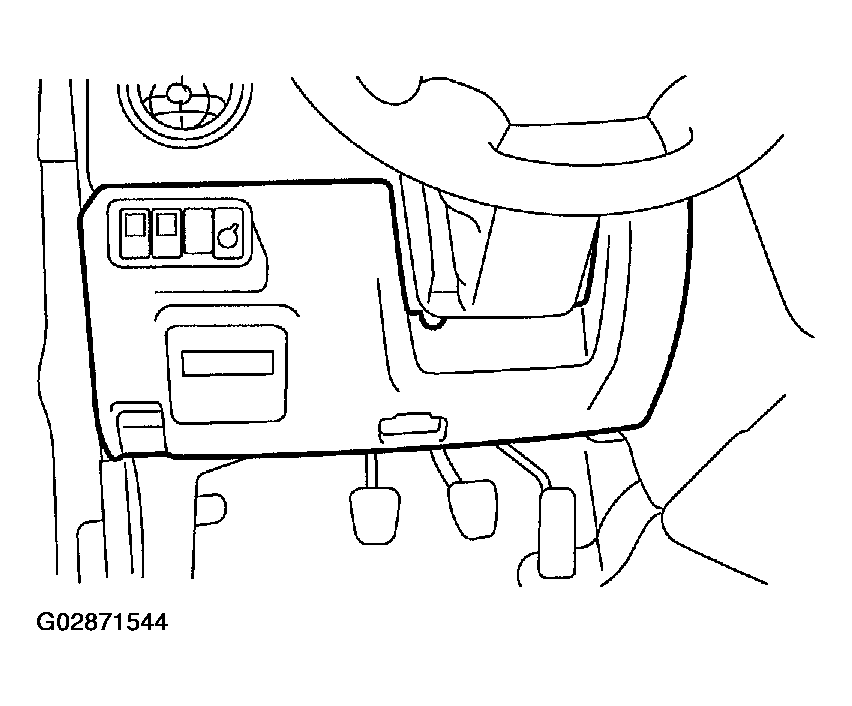

    Fig 2: Removing Lower Cover
    G02871544Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the knee bolster.

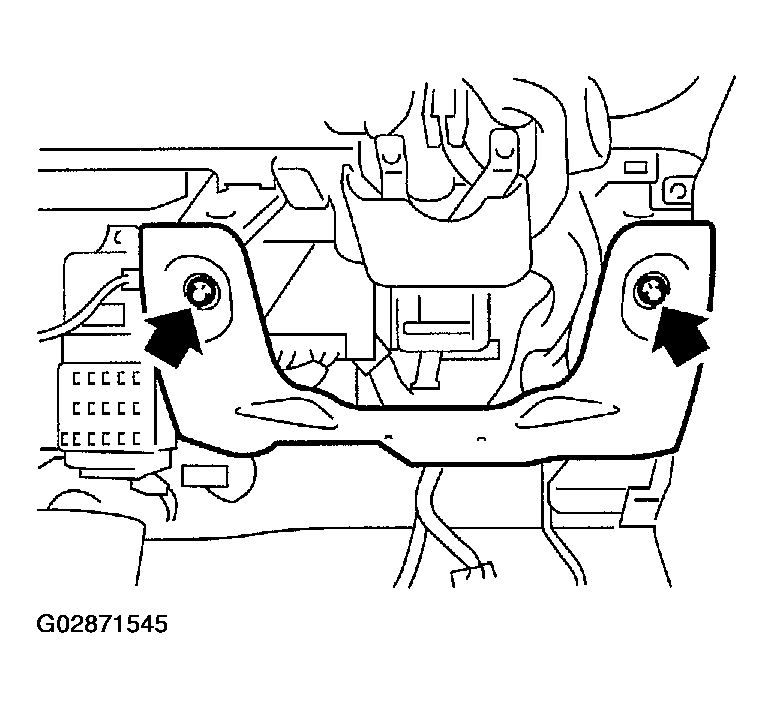

    Fig 3: Removing Knee Bolster
    G02871545Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from integrated module.
  5. Remove the integrated module.

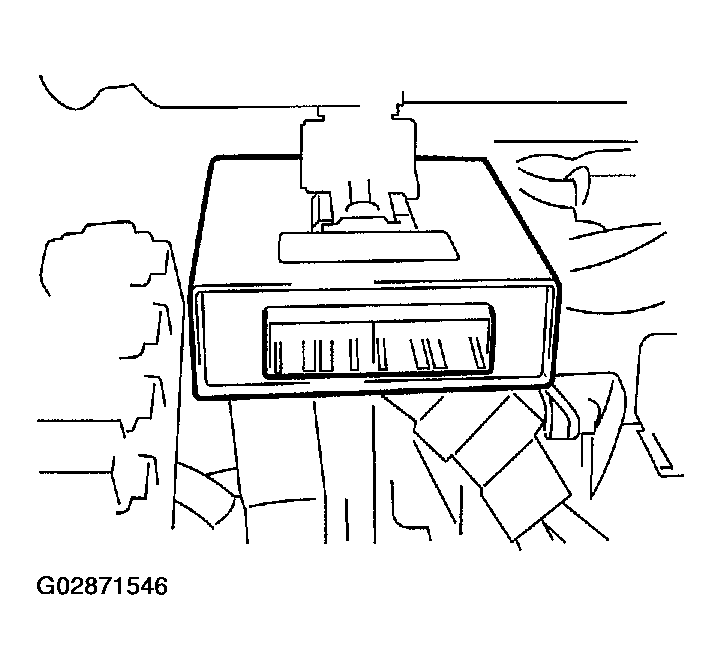

    Fig 4: Disconnecting Connector From Integrated Module
    G02871546Courtesy of SUBARU OF AMERICA, INC.
