Knock Sensor: Installation

Install knock sensor to cylinder block.
1. Tightening torque: 24 N.m (2.4 kgf-m, 17.4 ft-lb)
NOTE: The extraction area of the knock sensor cord must be positioned at a 60° angle relative to the engine rear.

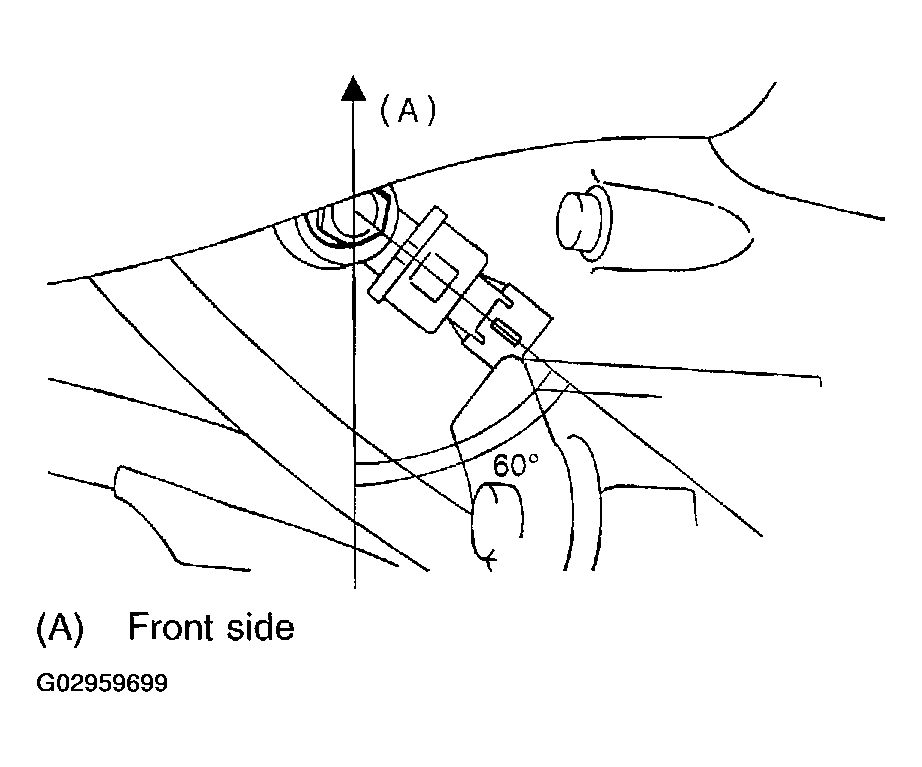

Fig 1: Installing Knock Sensor To Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
Connect knock sensor connector.

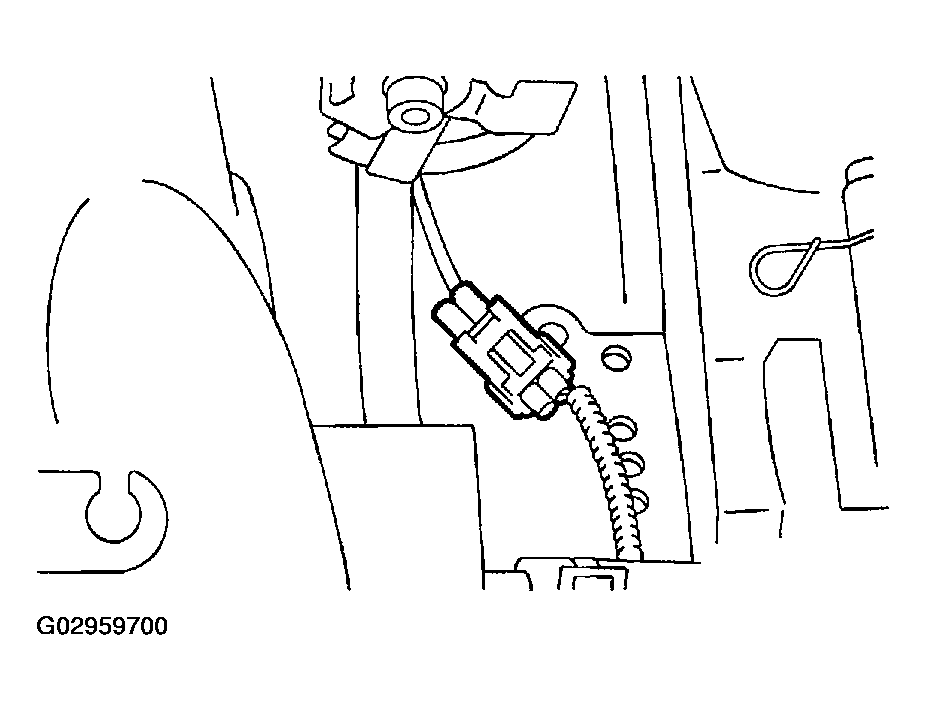

Fig 2: Connecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install air cleaner case.

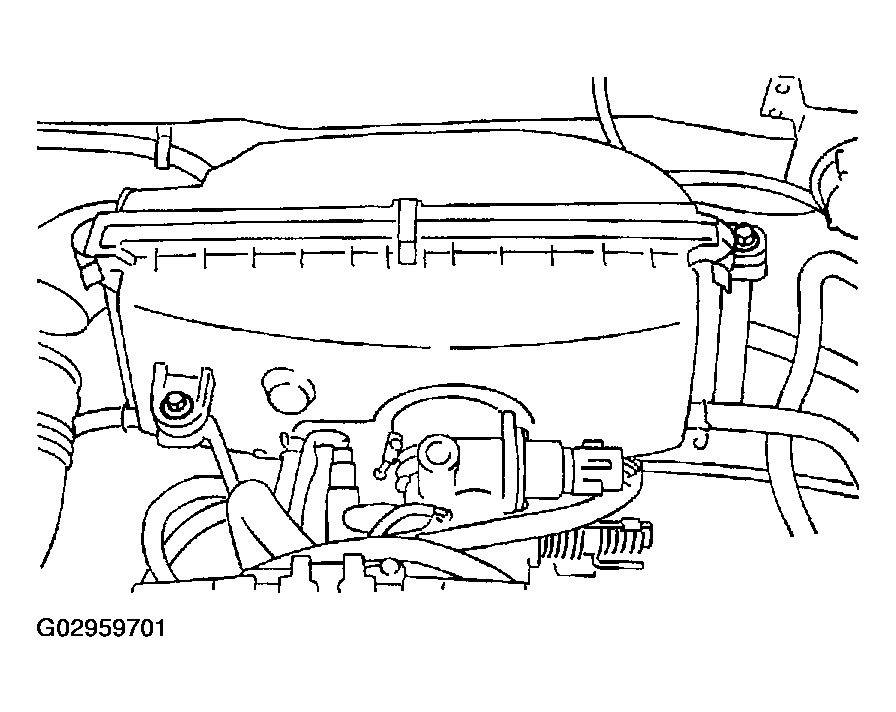

Fig 3: Installing Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Connect battery ground cable.

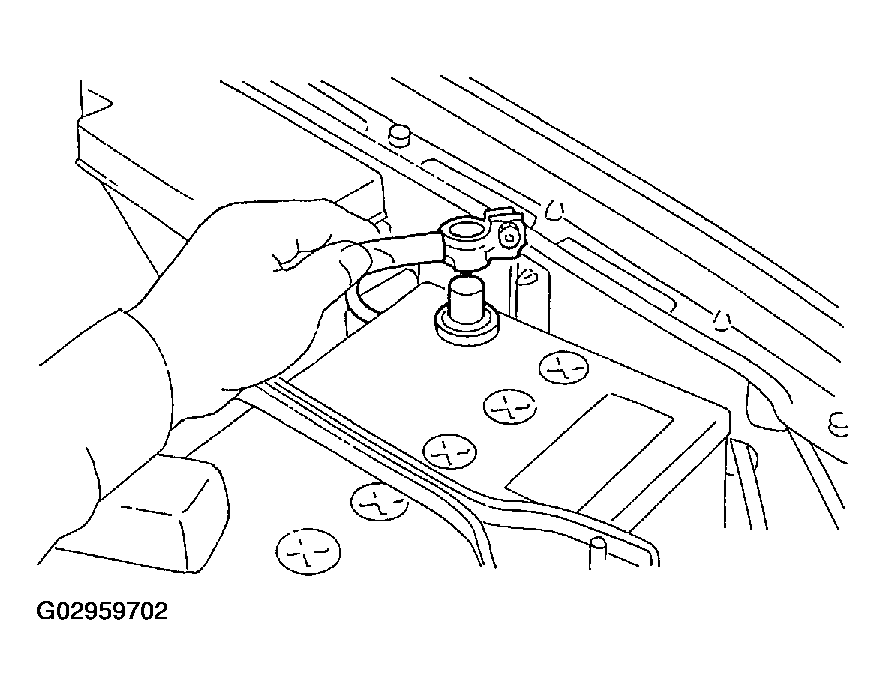

Fig 4: Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
