Throttle Position Sensor: Installation

Install in the reverse order of removal.

  1. Tightening torque:  1.6 N.m (0.16 kgf-m, 1.2 ft-lb)
CAUTION: When installing throttle position sensor, adjust to the specified data.

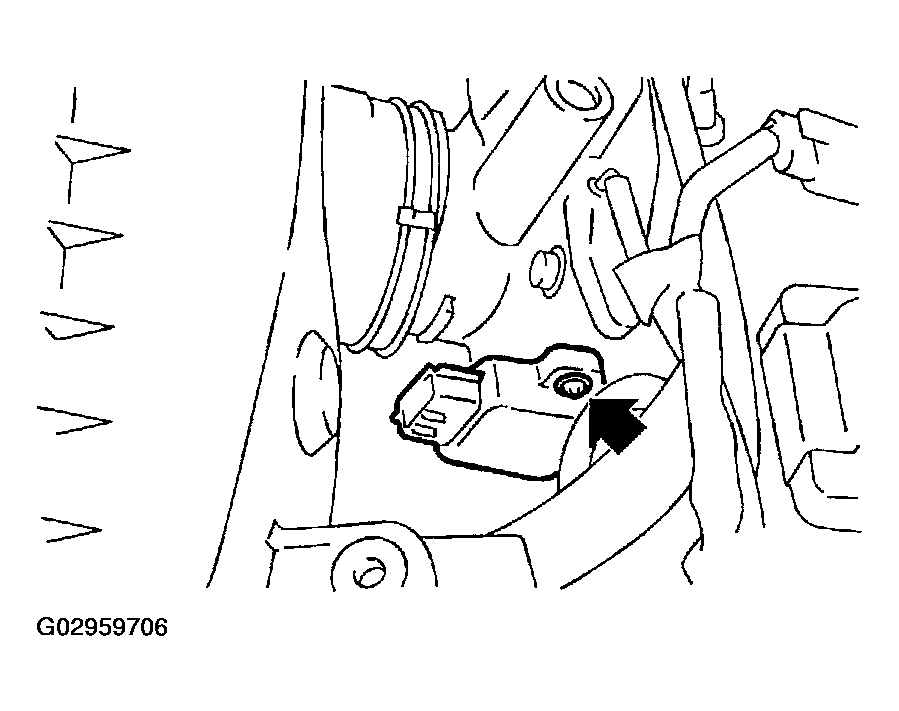

Fig 1: Installing Throttle Position Sensor Holding Screws
G02959706Courtesy of SUBARU OF AMERICA, INC.
