Check List for Interview: Check

Check the following items about the vehicle's state.

  1. STATE OF ABS WARNING LIGHT

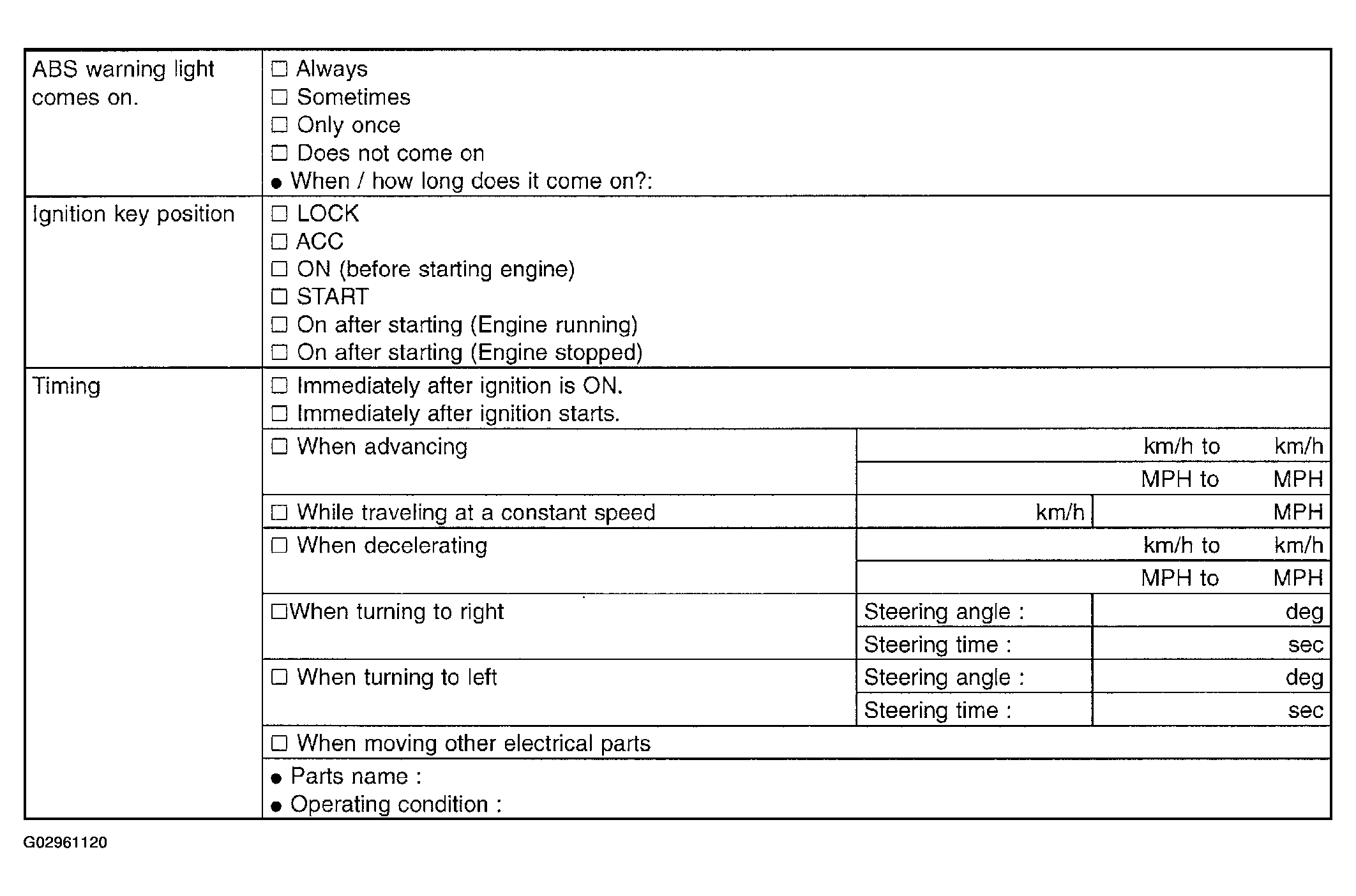

    Fig 1: Check List For Interview - State Of ABS Warning Light Form
    G02961120Courtesy of SUBARU OF AMERICA, INC.
  2. SYMPTOMS

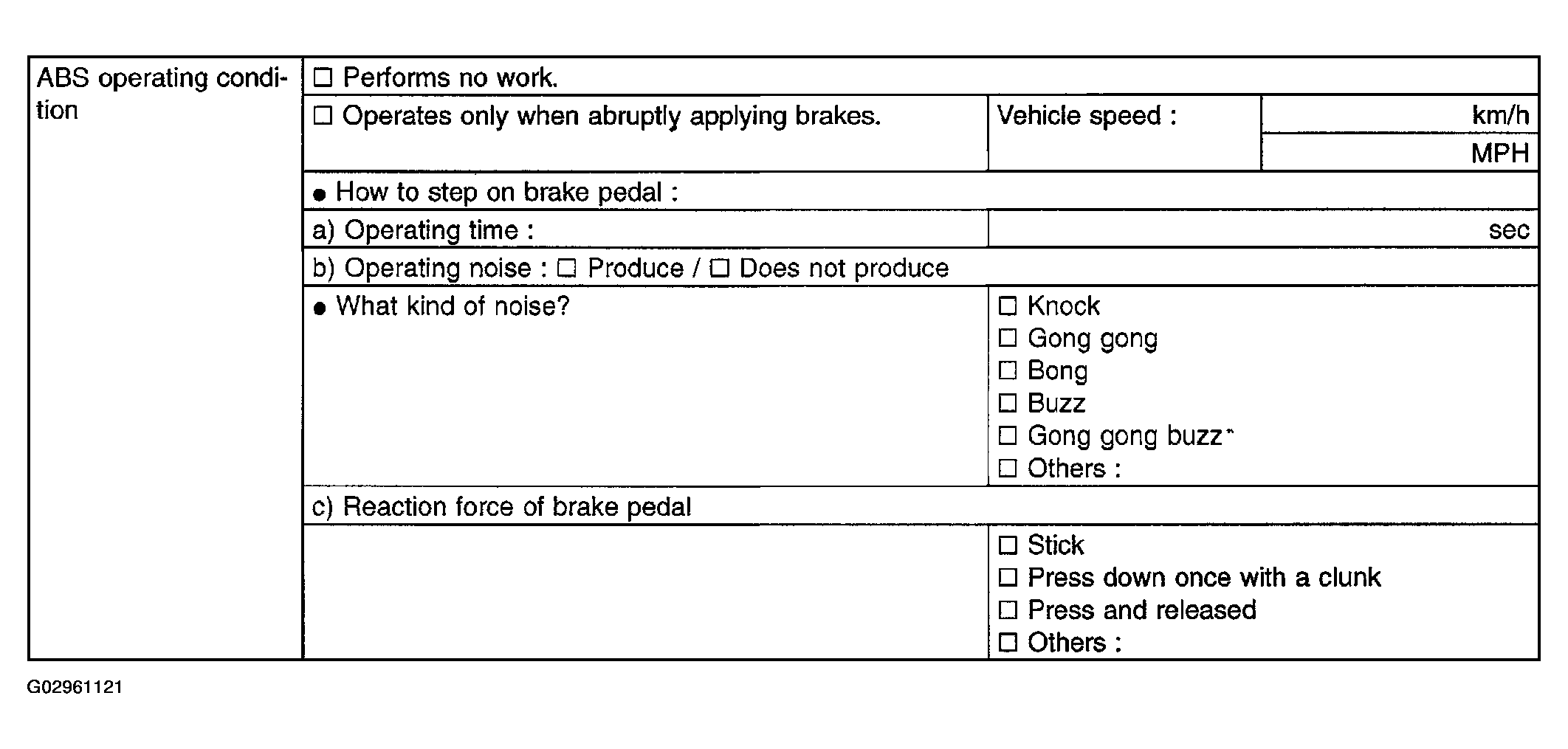

    Fig 2: Check List For Interview - Symptoms Form (1 Of 2)
    G02961121Courtesy of SUBARU OF AMERICA, INC.

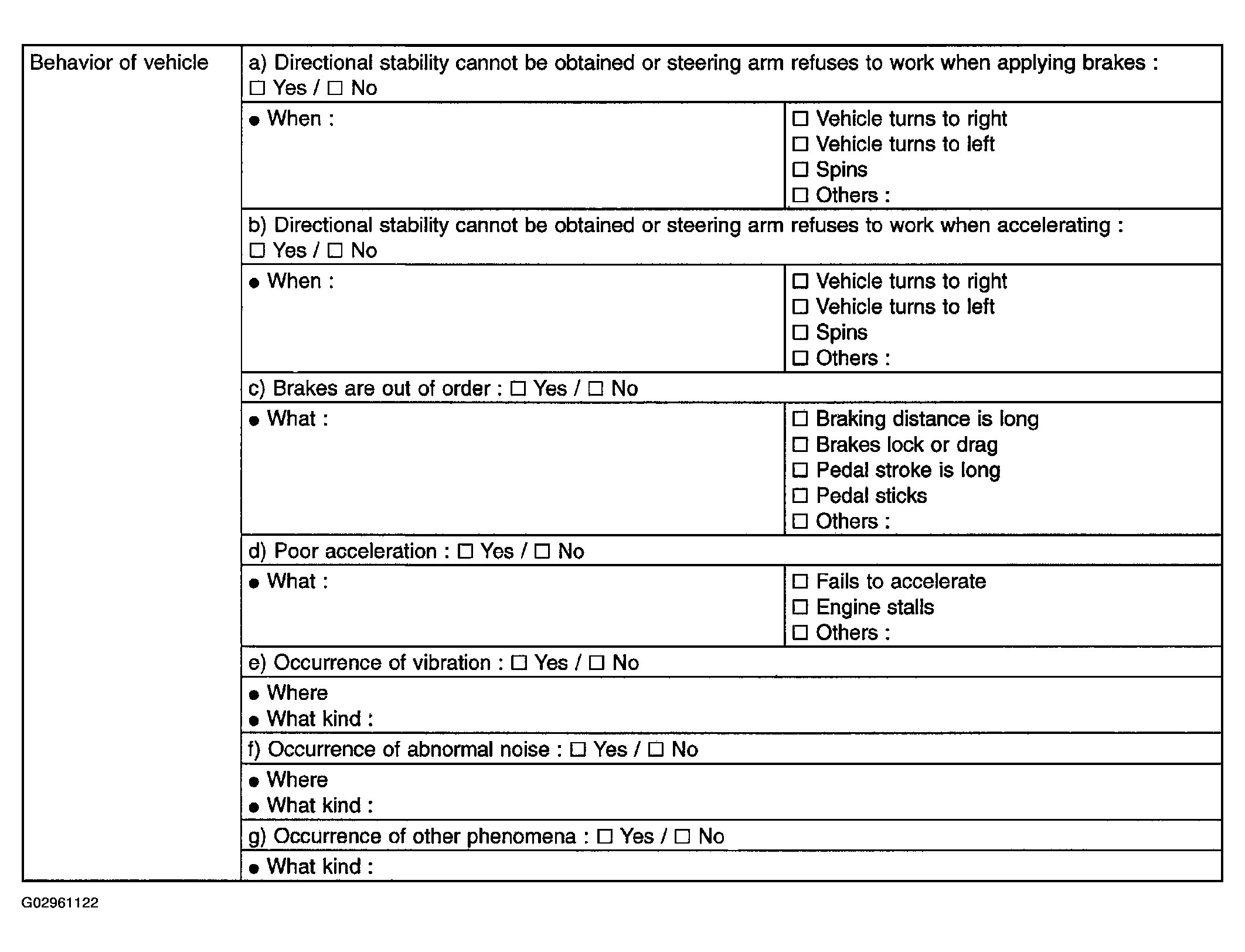

    Fig 3: Check List For Interview - Symptoms Form (2 Of 2)
    G02961122Courtesy of SUBARU OF AMERICA, INC.
  3. CONDITIONS UNDER WHICH TROUBLE OCCURS

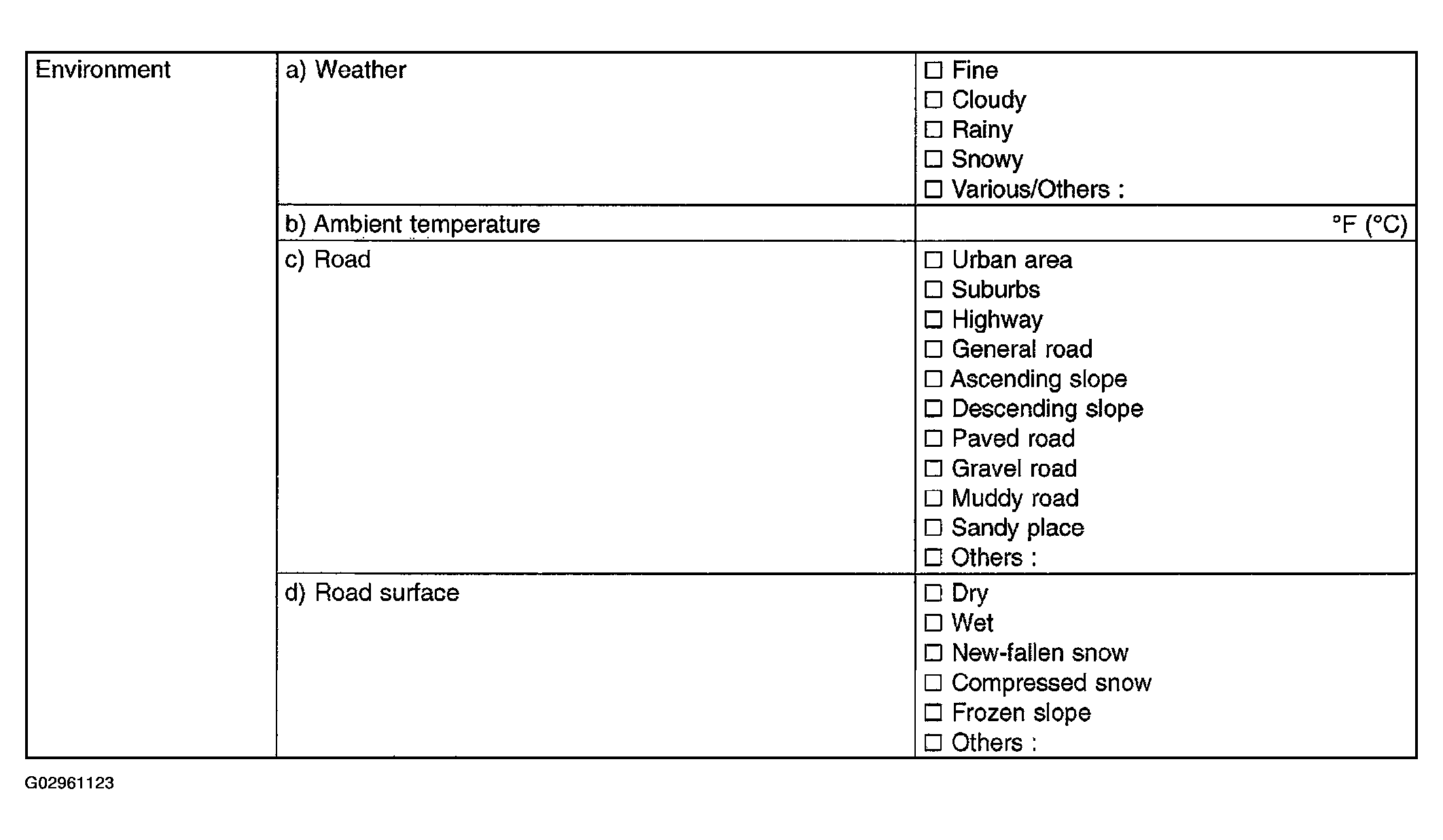

    Fig 4: Check List For Interview - Conditions Under Which Trouble Occurs Form (1 Of 2)
    G02961123Courtesy of SUBARU OF AMERICA, INC.

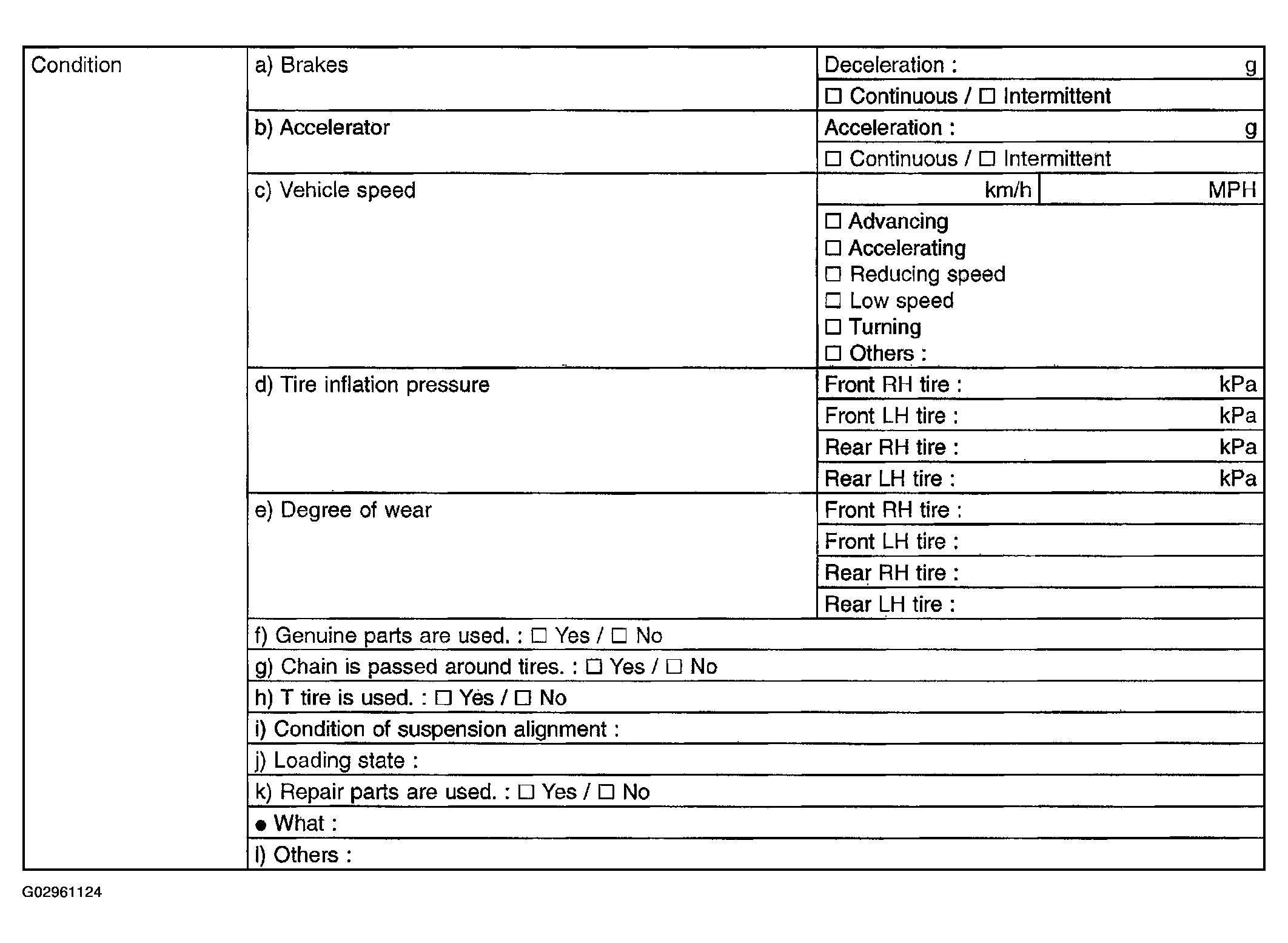

    Fig 5: Check List For Interview - Conditions Under Which Trouble Occurs Form (2 Of 2)
    G02961124Courtesy of SUBARU OF AMERICA, INC.
