Knock Sensor: Removal

  1. Disconnect battery ground cable from battery.

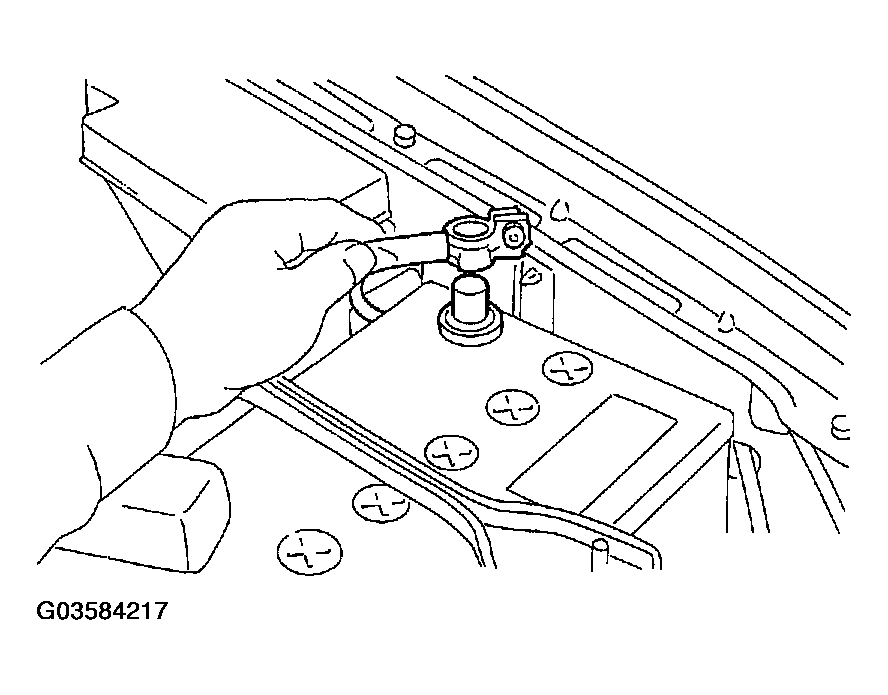

    Fig 1: Disconnecting Battery Ground Cable From Battery
    G03584217Courtesy of SUBARU OF AMERICA, INC.
  2. Remove intake manifold.

    < Ref. to ,REMOVAL  , Intake Manifold. >

  3. Disconnect knock sensor connector.
  4. Remove knock sensor from cylinder block.

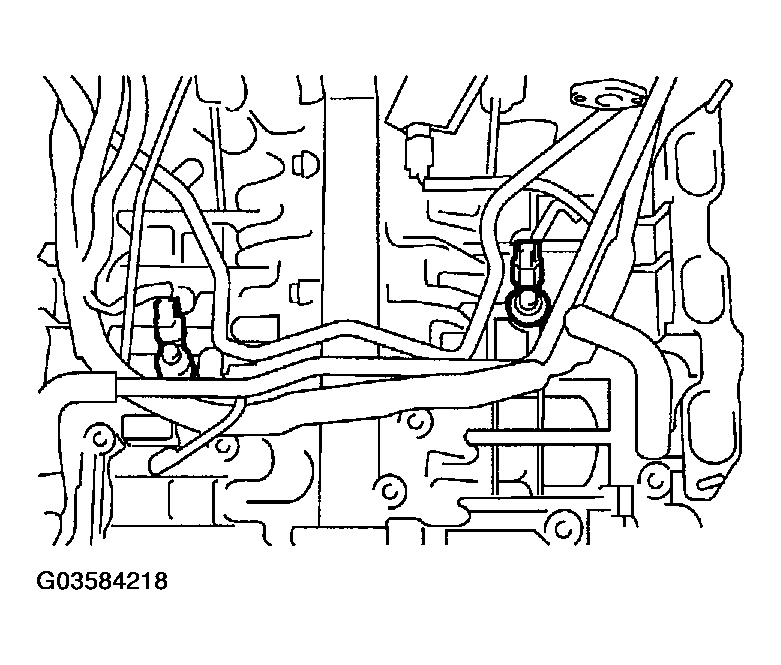

    Fig 2: Removing Knock Sensor From Cylinder Block
    G03584218Courtesy of SUBARU OF AMERICA, INC.
