Remote Control Mirror Switch: Inspection

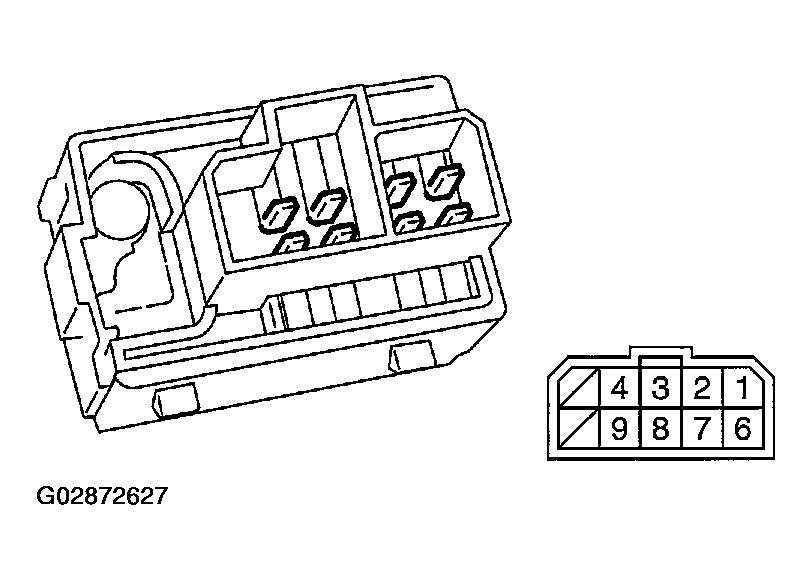

Move rearview mirror switch to each position and check continuity between terminals.
REMOTE CONTROL MIRROR SWITCH CONTINUITY CHART (CHANGE OVER SWITCH LEFT POSITION)
| Switch position | Terminal No. | Standard |
| OFF | - | More than 1 Mohm |
| UP | 7 and 4, 2 and 1 | Less than 1 ohm |
| DOWN | 7 and 2, 4 and 1 | Less than 1 ohm |
| LEFT | 9 and 4, 2 and 1 | Less than 1 ohm |
| RIGHT | 9 and 2, 4 and 1 | Less than 1 ohm |
REMOTE CONTROL MIRROR SWITCH CONTINUITY CHART (CHANGE OVER SWITCH RIGHT POSITION)
| Switch position | Terminal No. | Standard |
| OFF | - | More than 1 Mohm |
| UP | 6 and 4, 2 and 1 | Less than 1 ohm |
| DOWN | 6 and 2, 4 and 1 | Less than 1 ohm |
| LEFT | 8 and 4, 2 and 1 | Less than 1 ohm |
| RIGHT | 8 and 2, 4 and 1 | Less than 1 ohm |
If NG, replace the switch.
