Electrical Specification

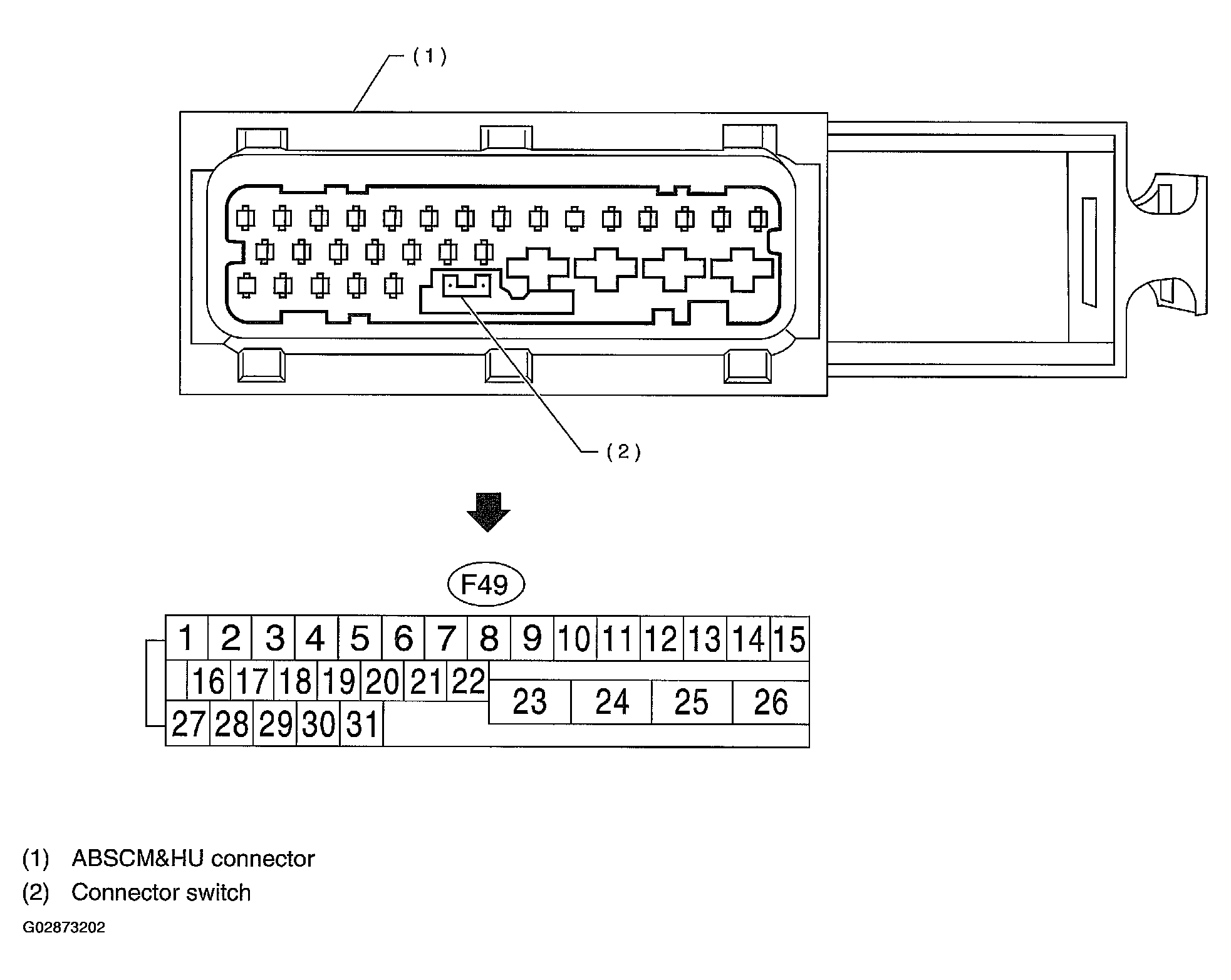

Fig 1: Identifying ABSCM & H/U Connector, & Connector Switch

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in the figure.
When the connector is removed from the ABSCM & H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. The ABS warning light illuminates.

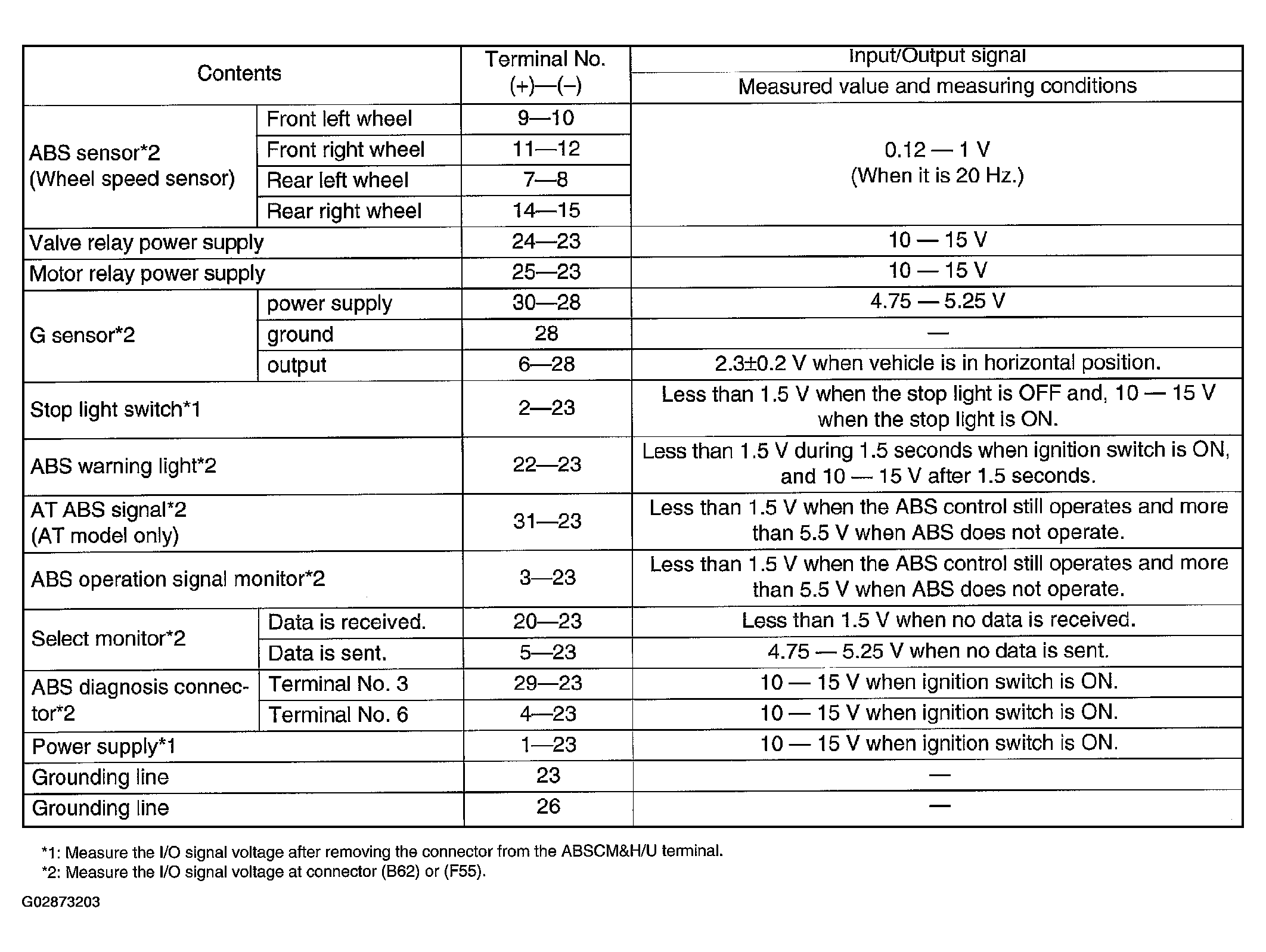

Fig 2: Identifying Control Module I/O Signal Specifications

Courtesy of SUBARU OF AMERICA, INC.
