Home >> Subaru >> 2003 >> Baja Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems, H4SO) >> General Description >> Component >> Intake Manifold

Intake Manifold

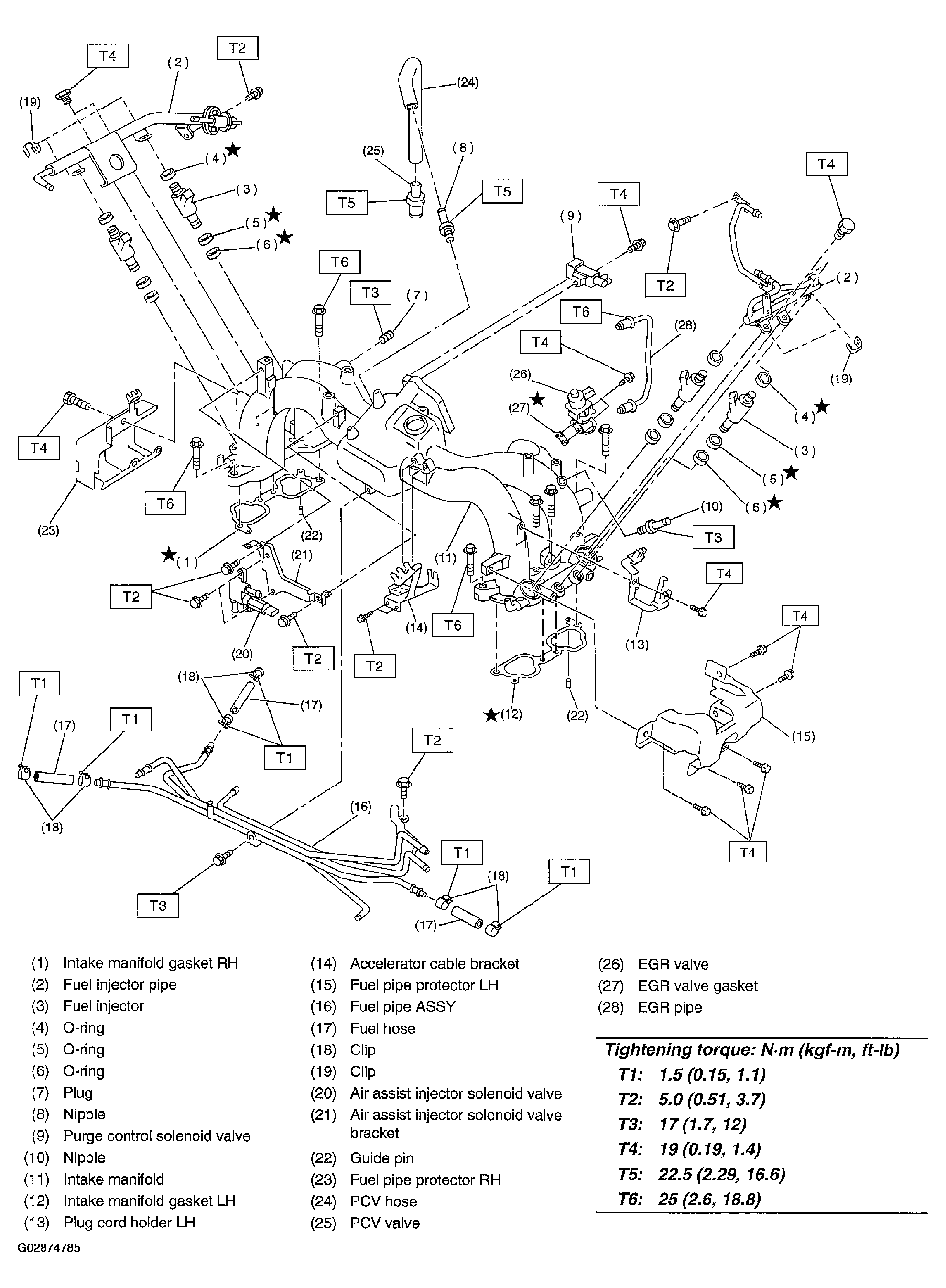

Fig 1: Exploded View Of Intake Manifold Component With Torque Specifications
G02874785Courtesy of SUBARU OF AMERICA, INC.
