Knock Sensor: Removal

  1. Disconnect battery ground cable.

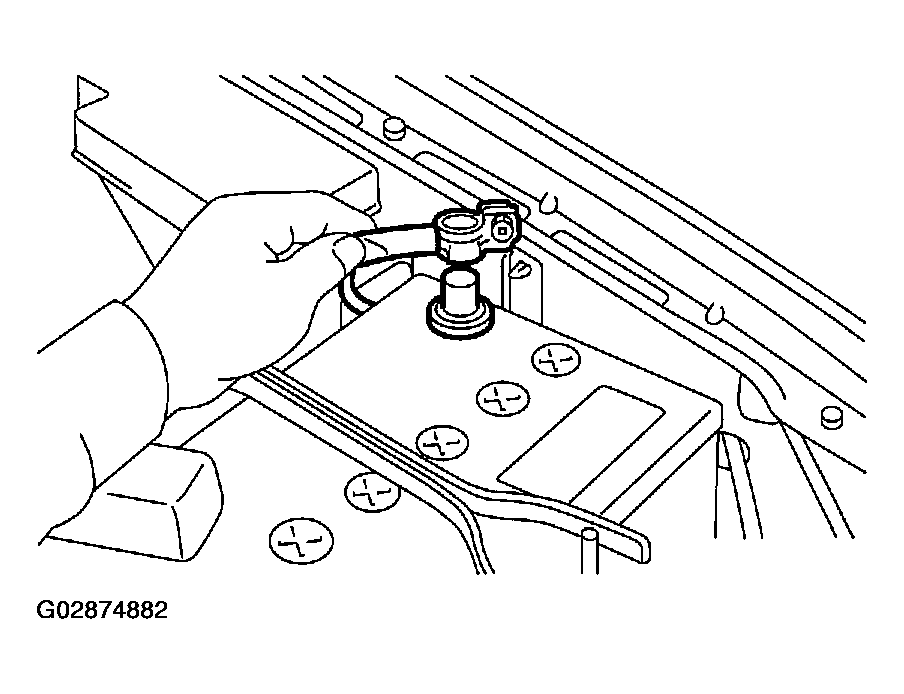

    Fig 1: Disconnecting Battery Ground Cable
    G02874882Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air cleaner case.

    < Ref. to REMOVAL , Air Cleaner Case.>

  3. Disconnect knock sensor connector.

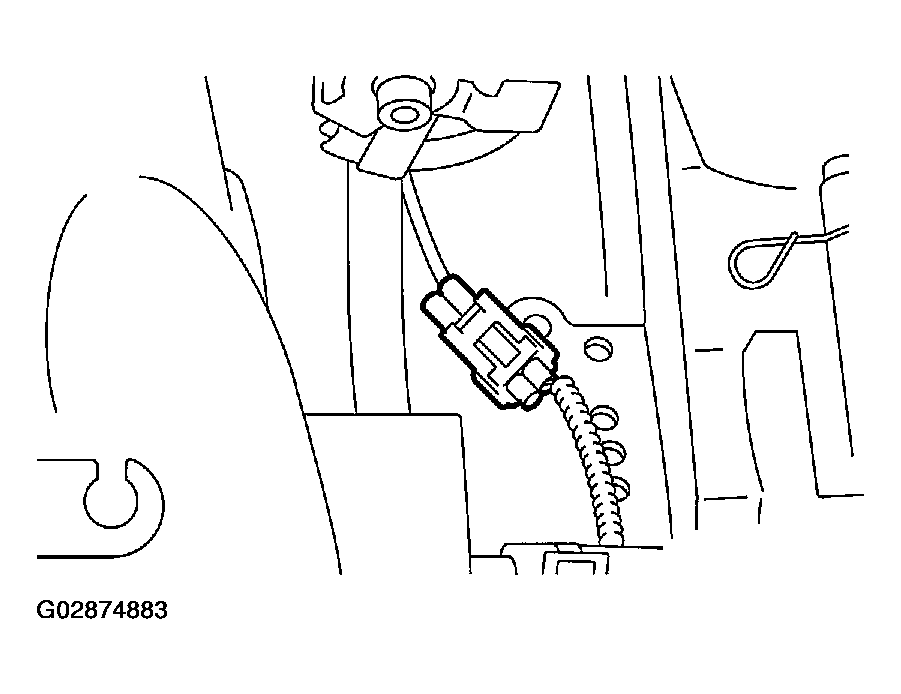

    Fig 2: Disconnecting Knock Sensor Connector
    G02874883Courtesy of SUBARU OF AMERICA, INC.
  4. Remove knock sensor from cylinder block.

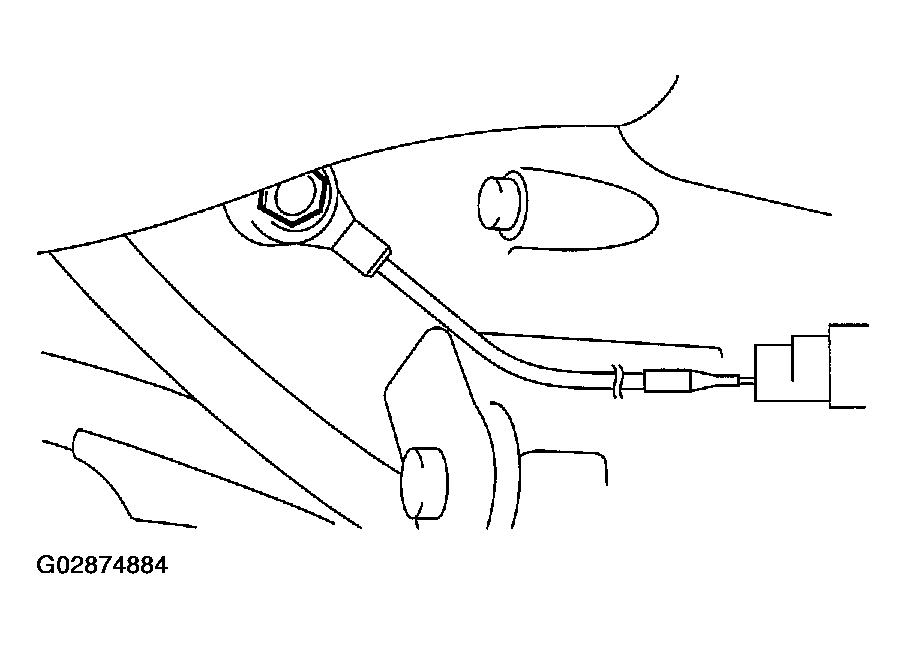

    Fig 3: Removing Knock Sensor From Cylinder Block
    G02874884Courtesy of SUBARU OF AMERICA, INC.
