Home >> Subaru >> 2003 >> Baja Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Trans (Diagnostics) >> Electrical Components Location >> Location >> Control Module

Control Module

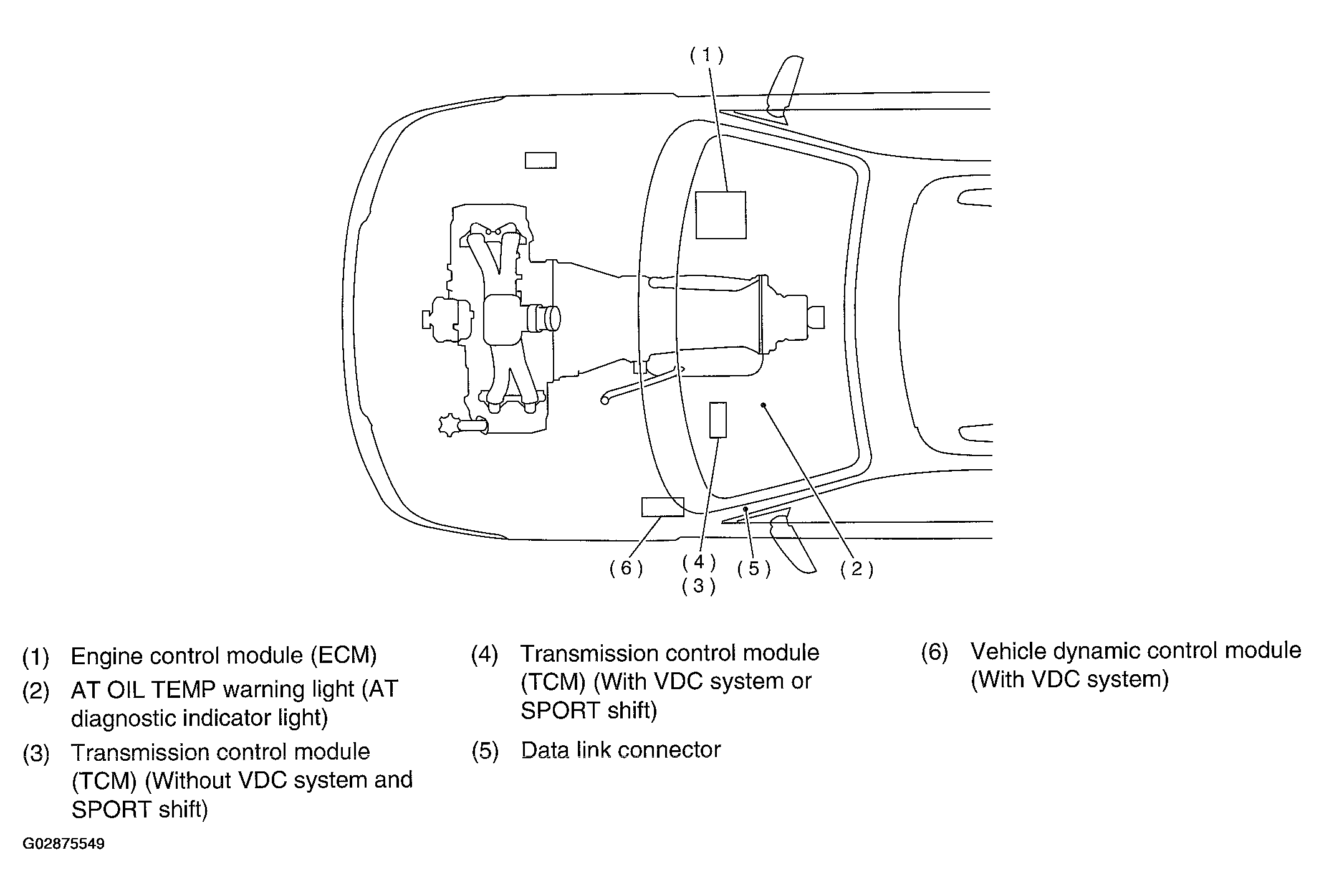

Fig 1: Locating Electrical Components Of Control Module (1 Of 2)
G02875549Courtesy of SUBARU OF AMERICA, INC.

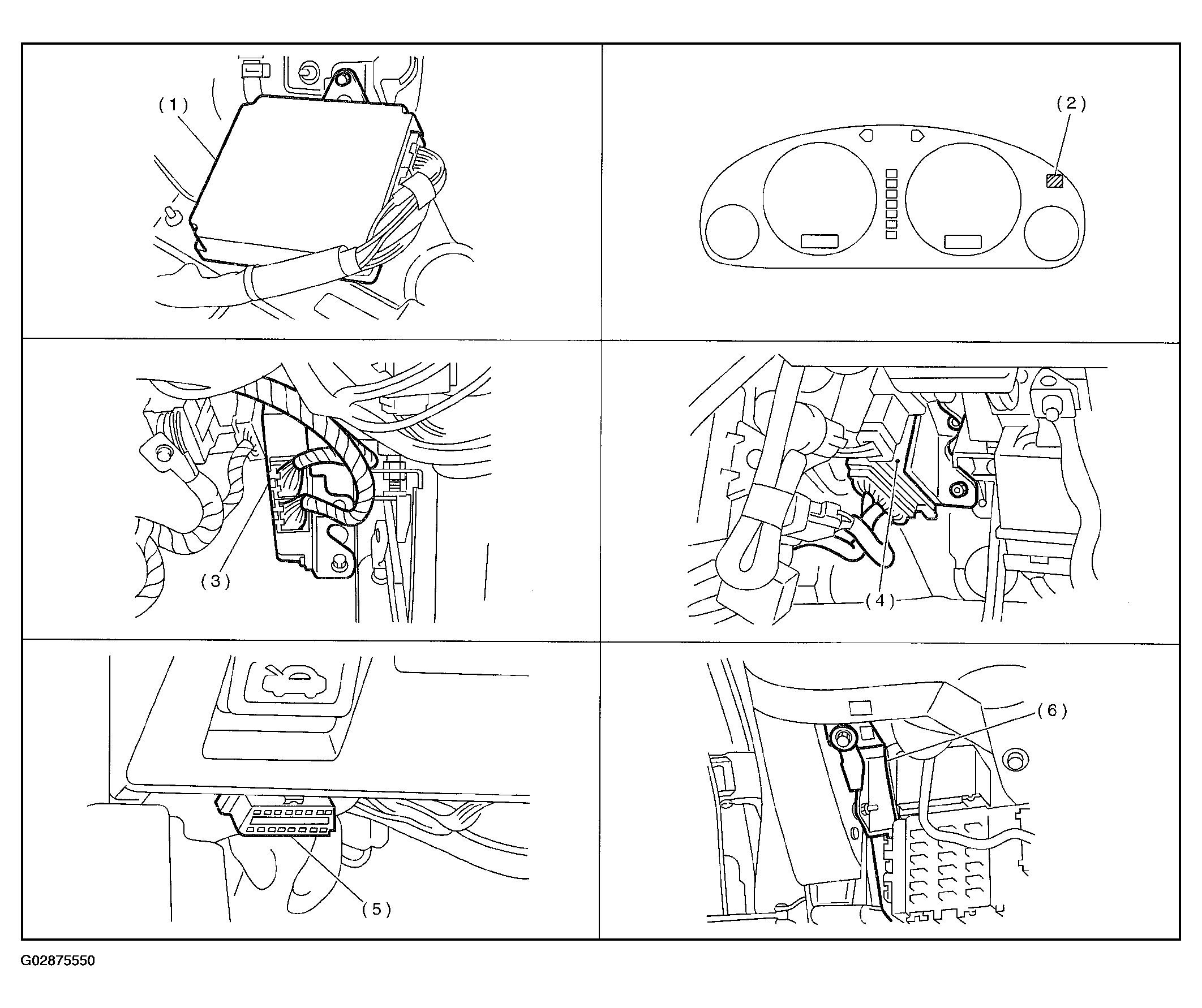

Fig 2: Locating Electrical Components Of Control Module (2 Of 2)
G02875550Courtesy of SUBARU OF AMERICA, INC.
