Electrical Components Location: Location: Sensor

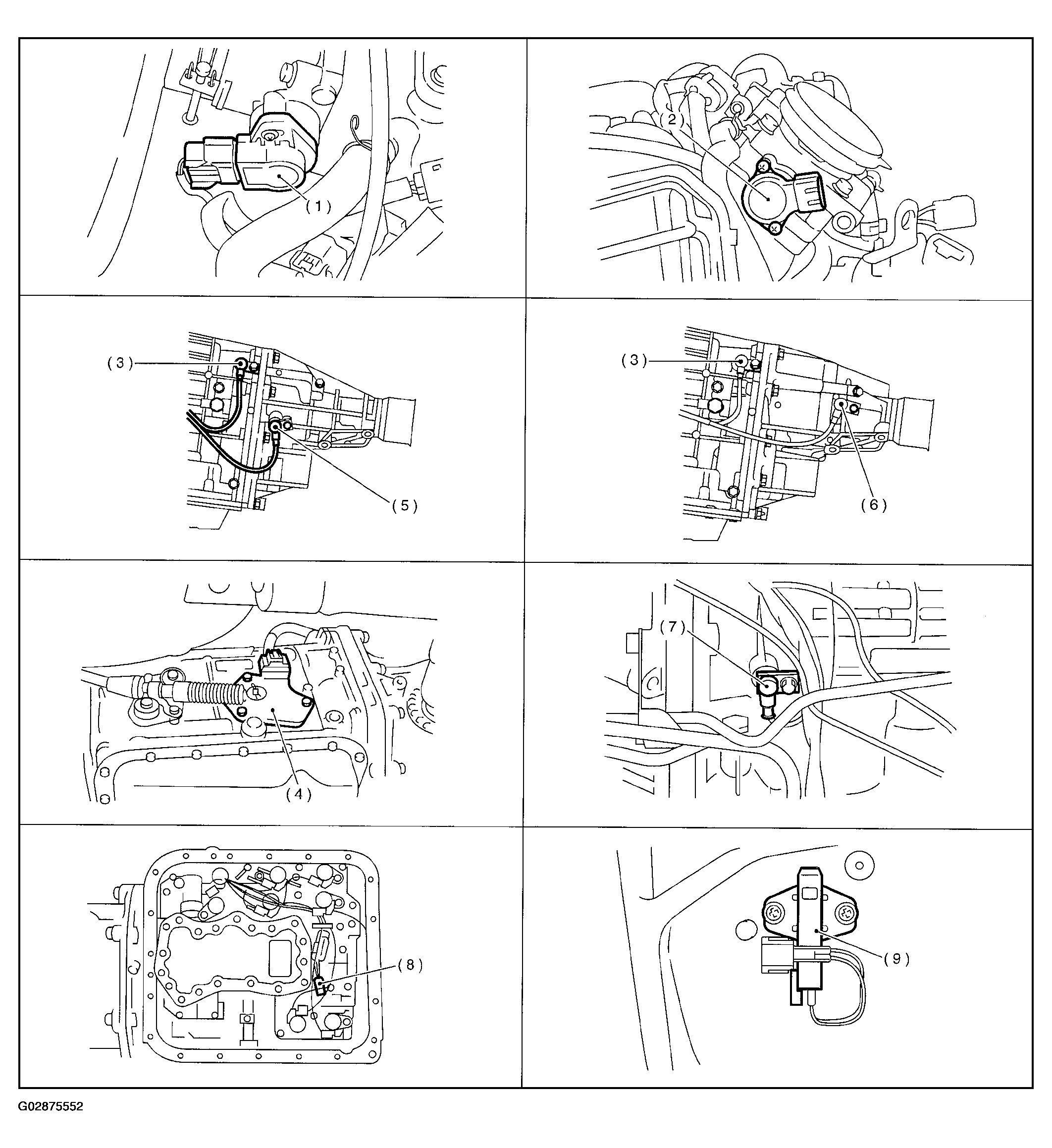

Fig 1: Locating Electrical Components Of Sensor (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

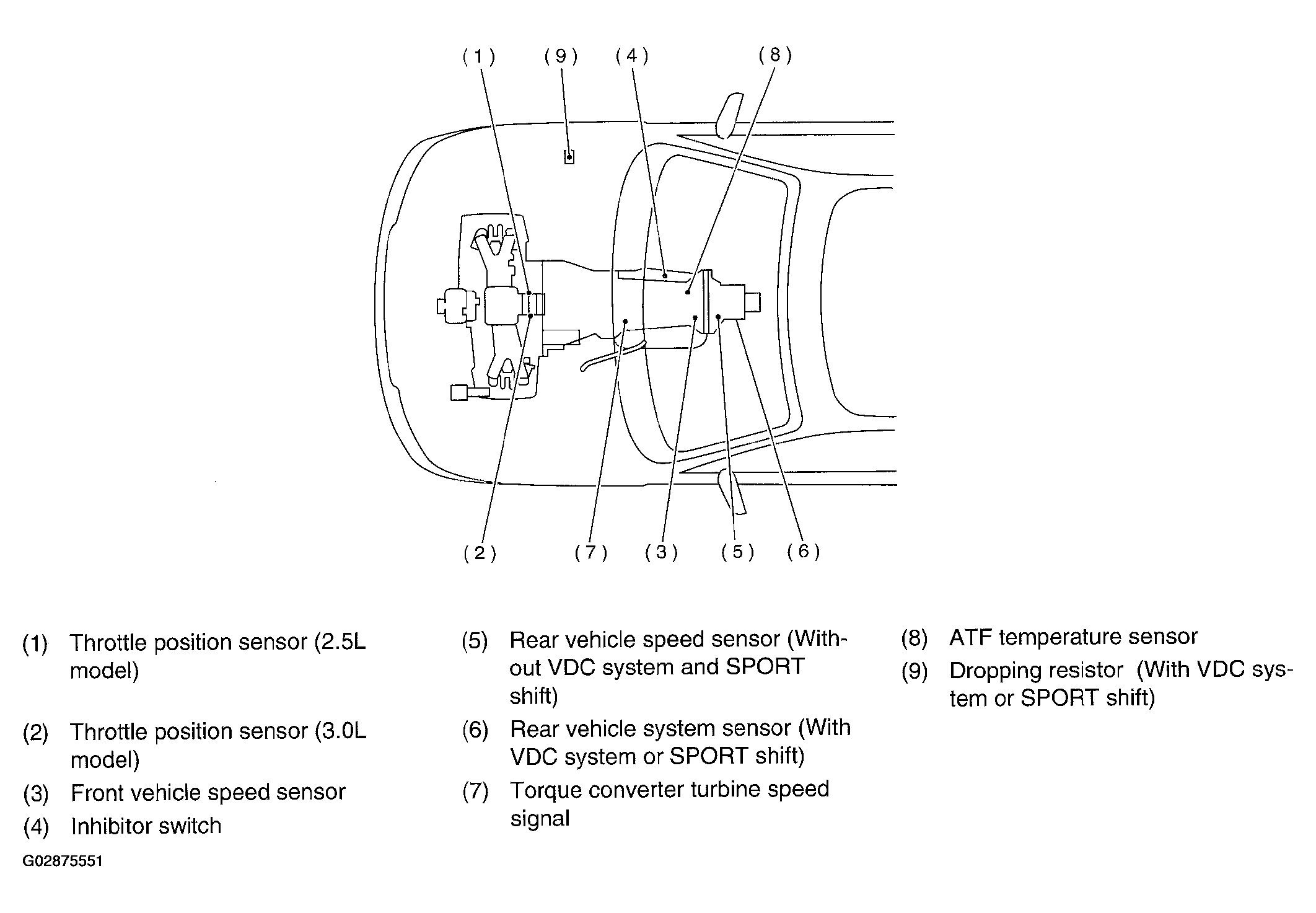

Fig 2: Locating Electrical Components Of Sensor (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
