Transmission Control Module (TCM) I/O Signal: Measurement: Waveform

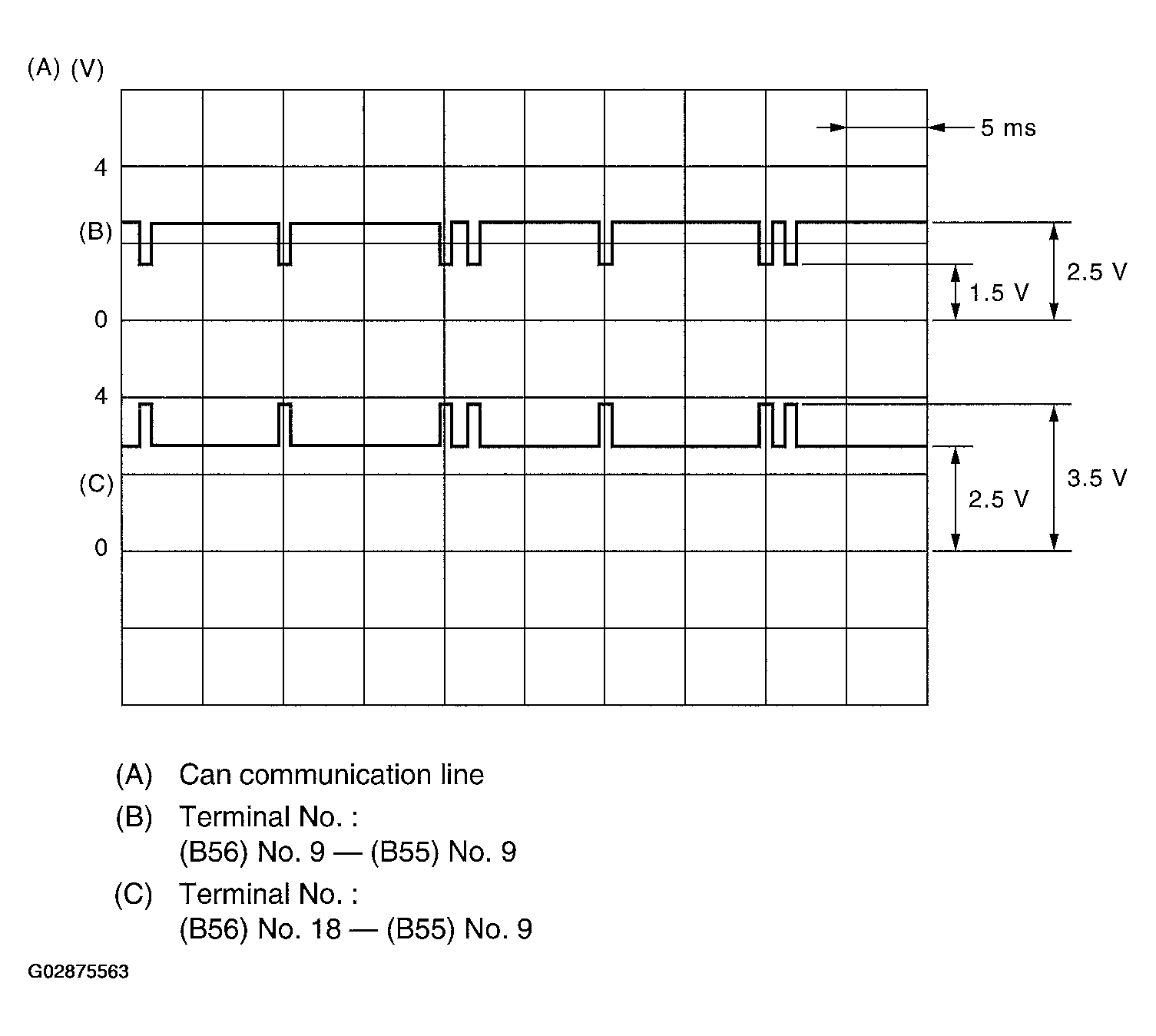

Fig 1: Measuring Input/Output Signal Voltage Waveform Pattern (With VDC System)

G02875563

Courtesy of SUBARU OF AMERICA, INC.
