Home >> Subaru >> 2003 >> Baja Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Trans - Mechanism & Function >> Hydraulic Control Valve >> Function

Hydraulic Control Valve: Function

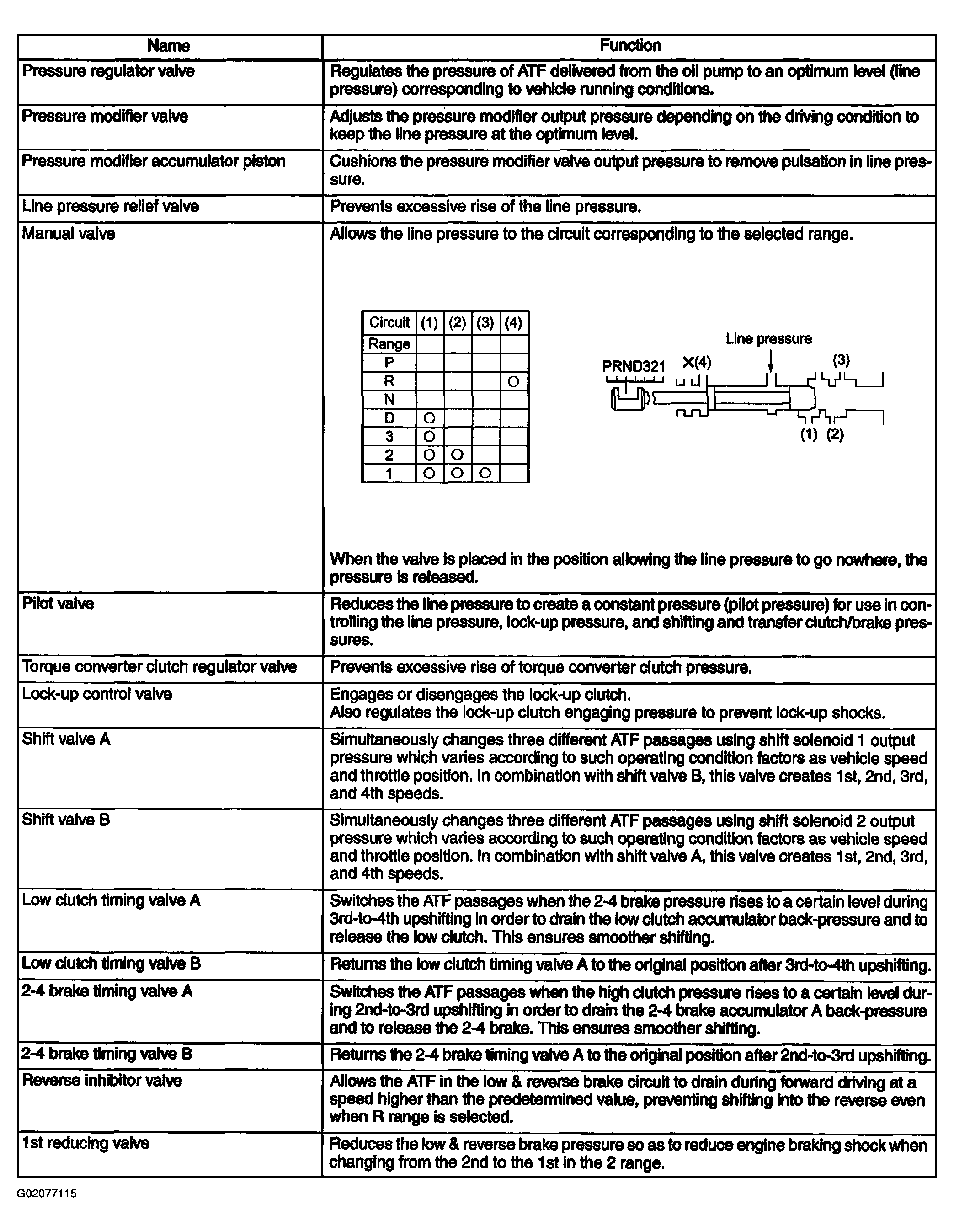

Fig 1: Hydraulic Control Valve Function Chart (1 Of 2)
G02077115Courtesy of SUBARU OF AMERICA, INC.

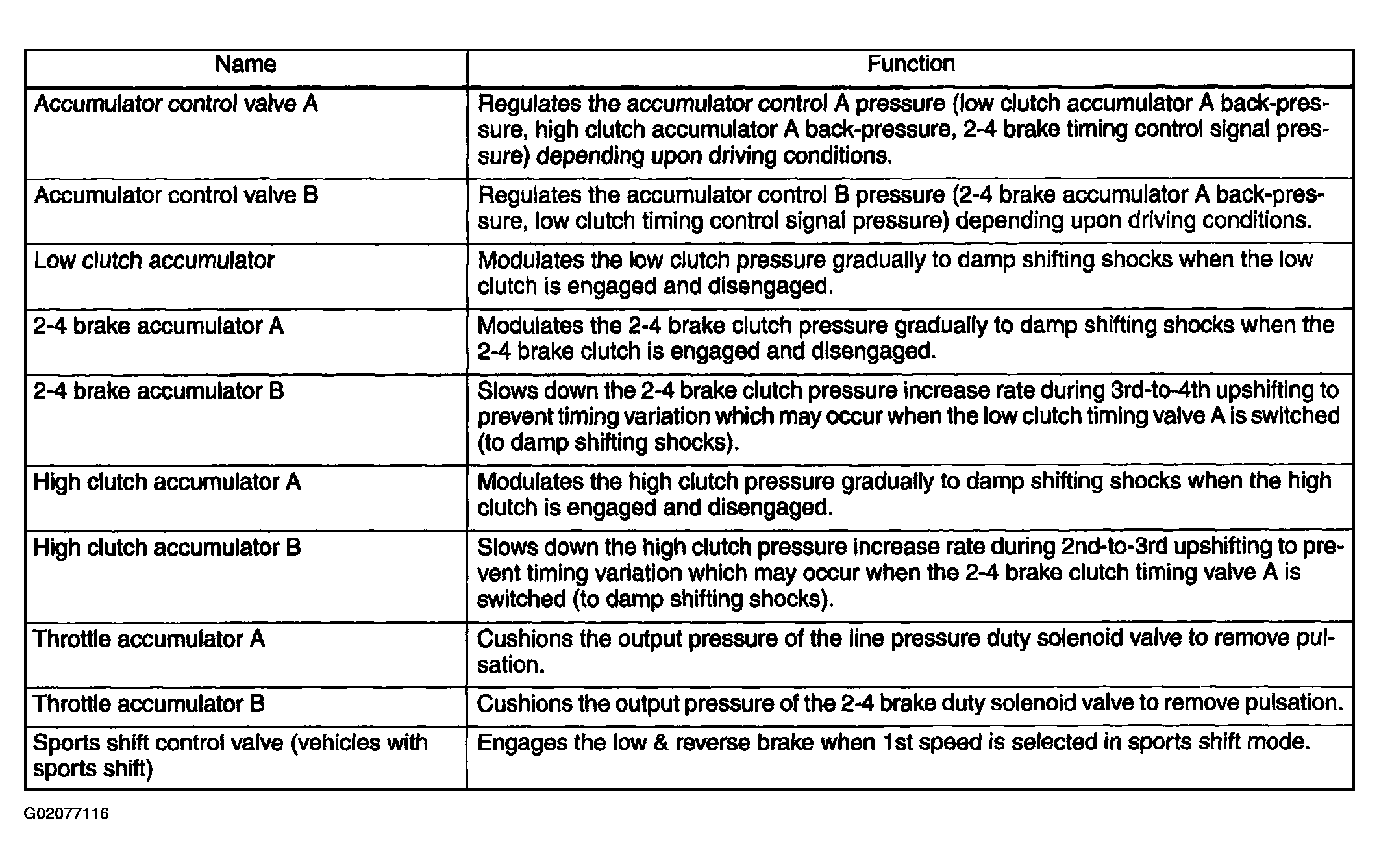

Fig 2: Hydraulic Control Valve Function Chart (2 Of 2)
G02077116Courtesy of SUBARU OF AMERICA, INC.
