G Sensor: Removal

  1. Disconnect the ground cable from battery.

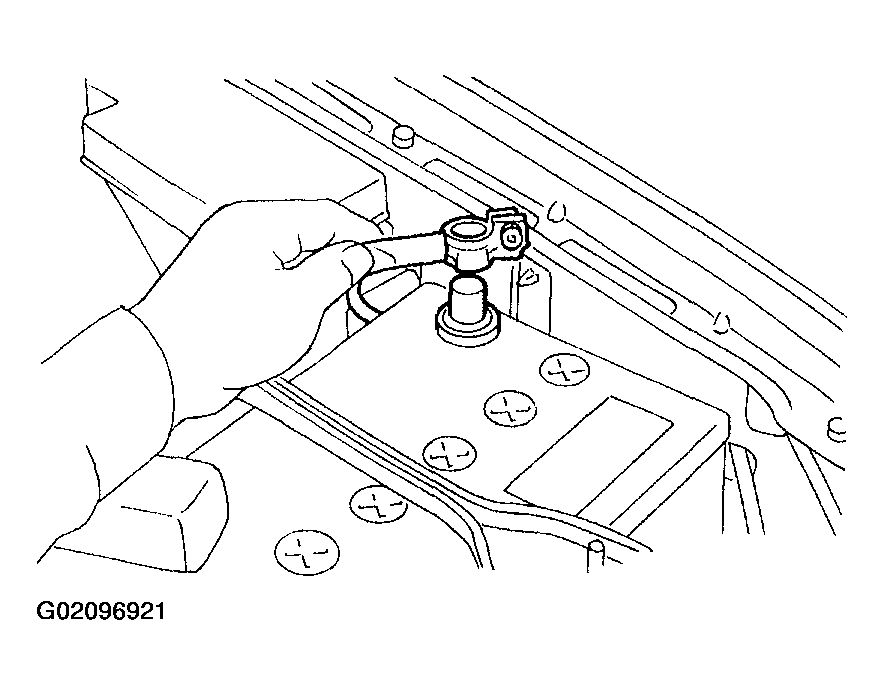

    Fig 1: Disconnecting Ground Cable From Battery
    G02096921Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the console cover.

    Refer to REMOVAL , Console Box.

  3. Disconnect the connector from G sensor.
  4. Remove the G sensor from body.
CAUTION:
  • Do not drop or bump the G sensor.
  • G sensor and the bracket are integrated into one unit. Therefore, do not disassemble it.

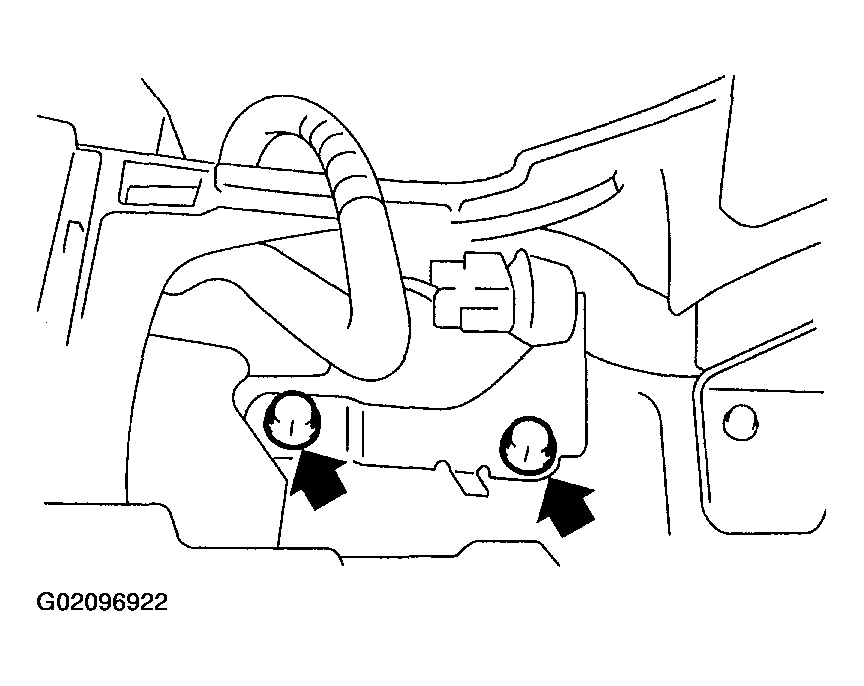

Fig 2: Removing G Sensor From Body
G02096922Courtesy of SUBARU OF AMERICA, INC.
