Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

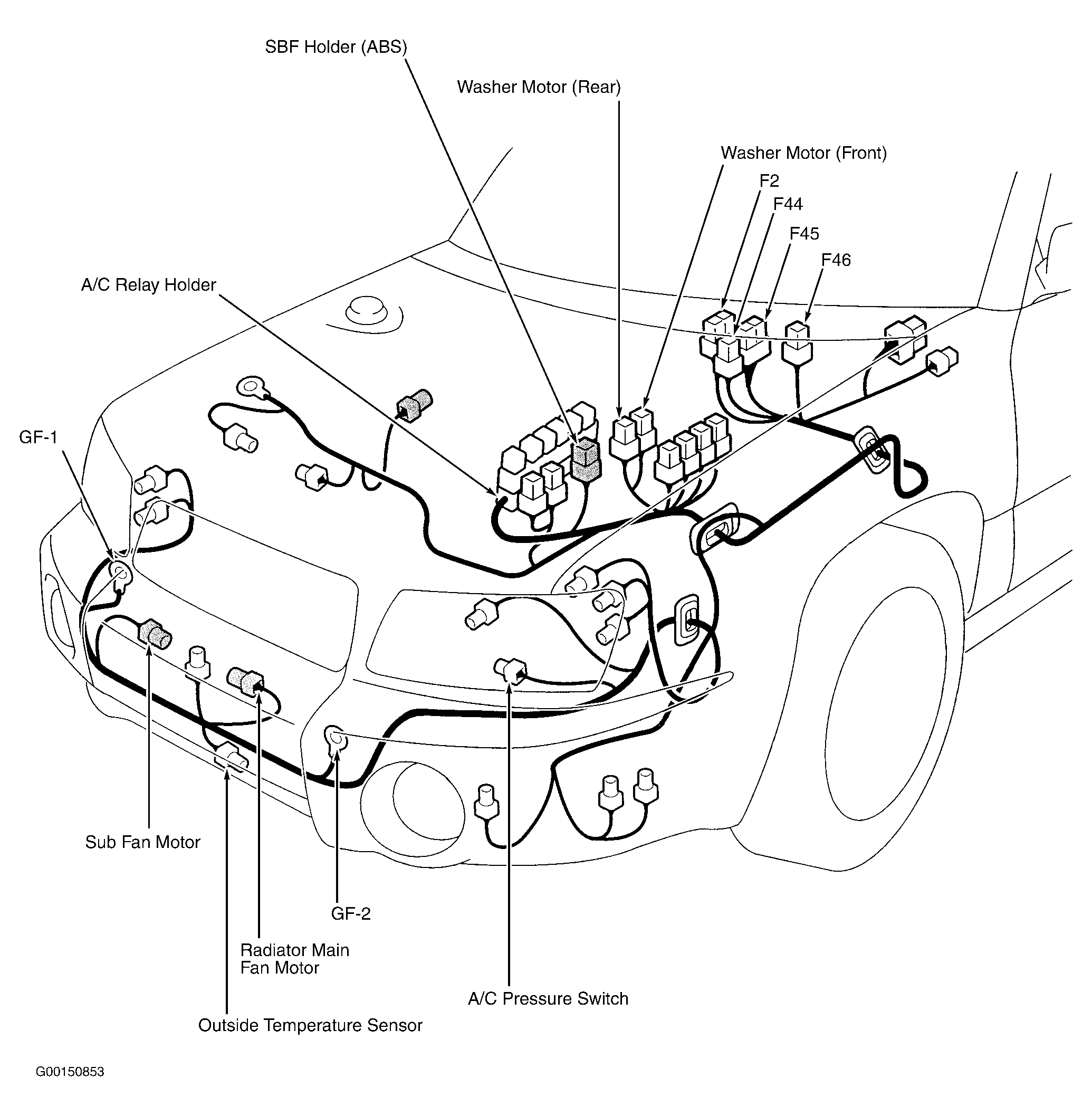

Fig 1: Engine Compartment

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Engine Compartment

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Dash

Courtesy of SUBARU OF AMERICA, INC.

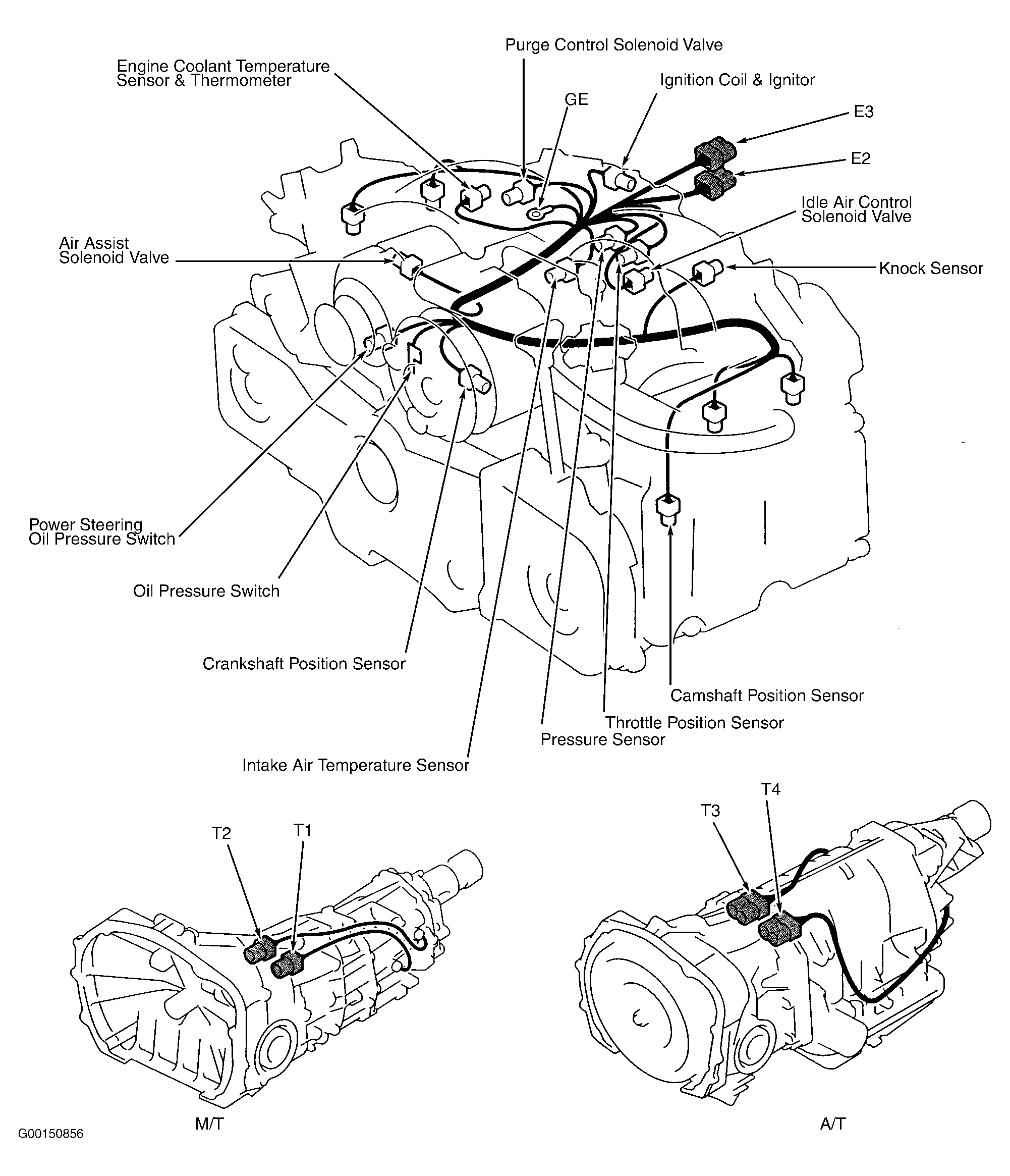

Fig 4: Engine & Transmission

Courtesy of SUBARU OF AMERICA, INC.

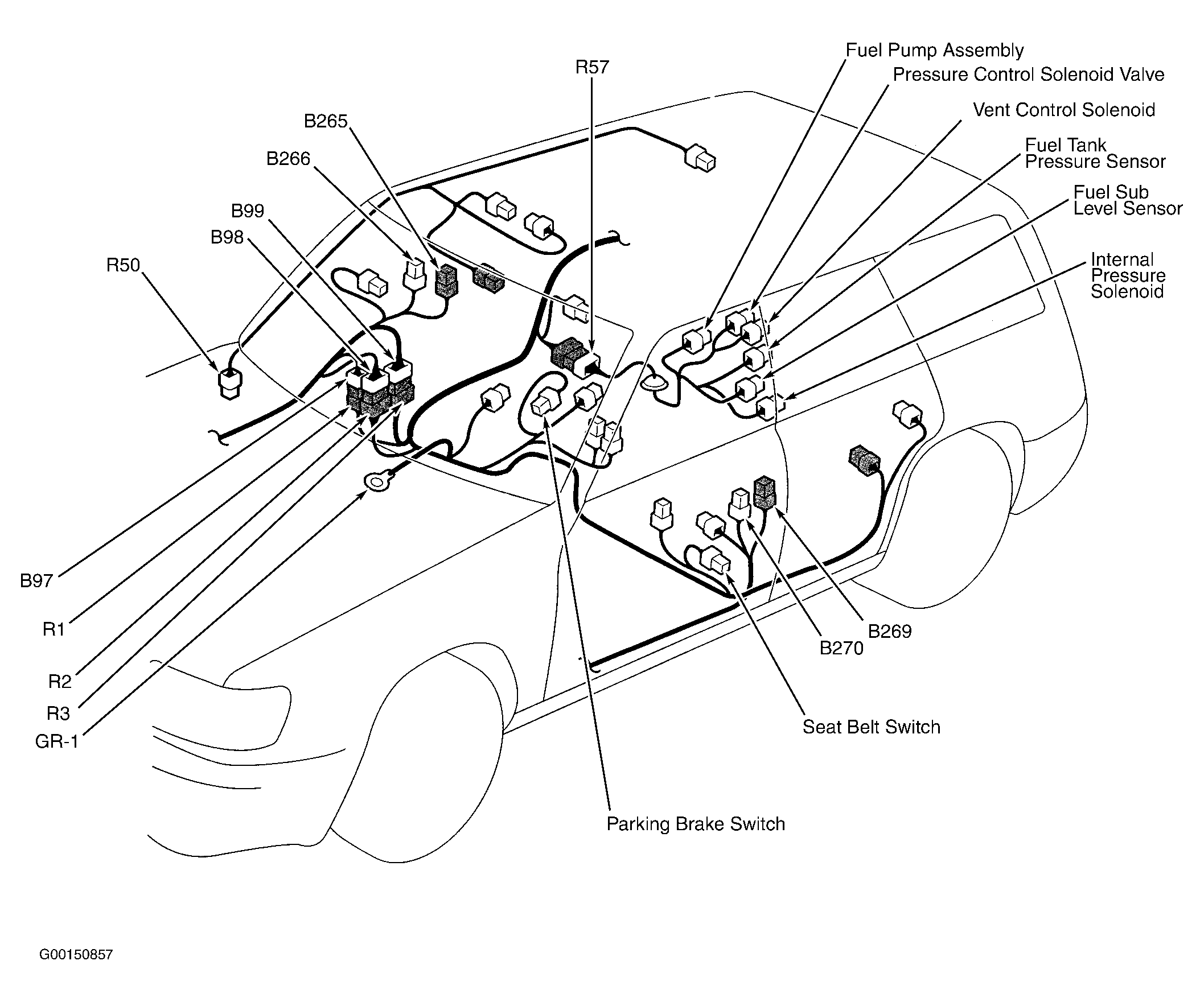

Fig 5: Left Side Of Vehicle

Courtesy of SUBARU OF AMERICA, INC.

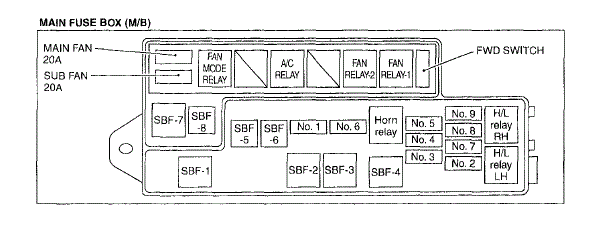

Fig 6: Main Fuse Box

Courtesy of SUBARU OF AMERICA, INC.
