Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

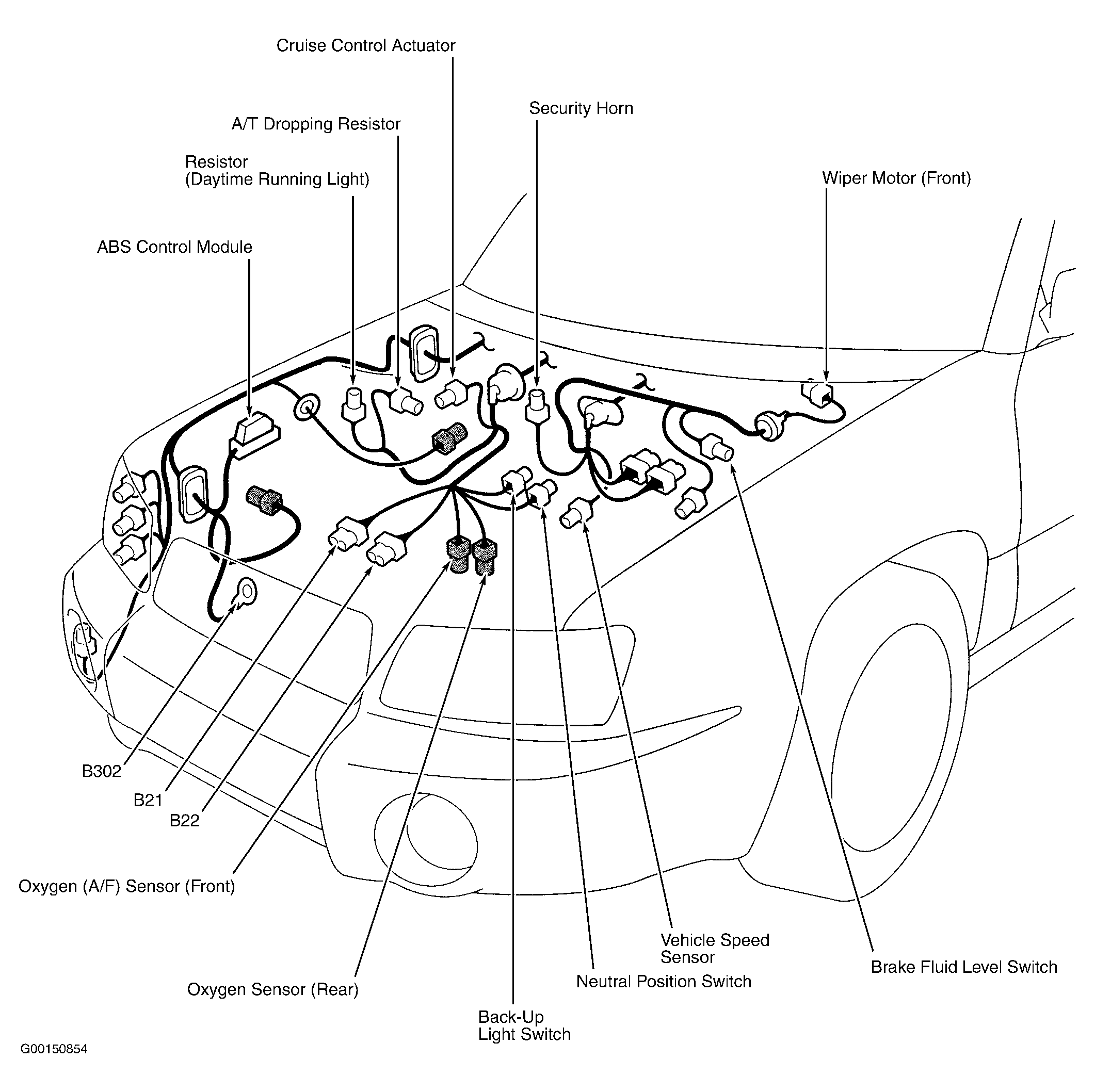

| ABS Control Module | On right front side of engine compartment. See Figure. |

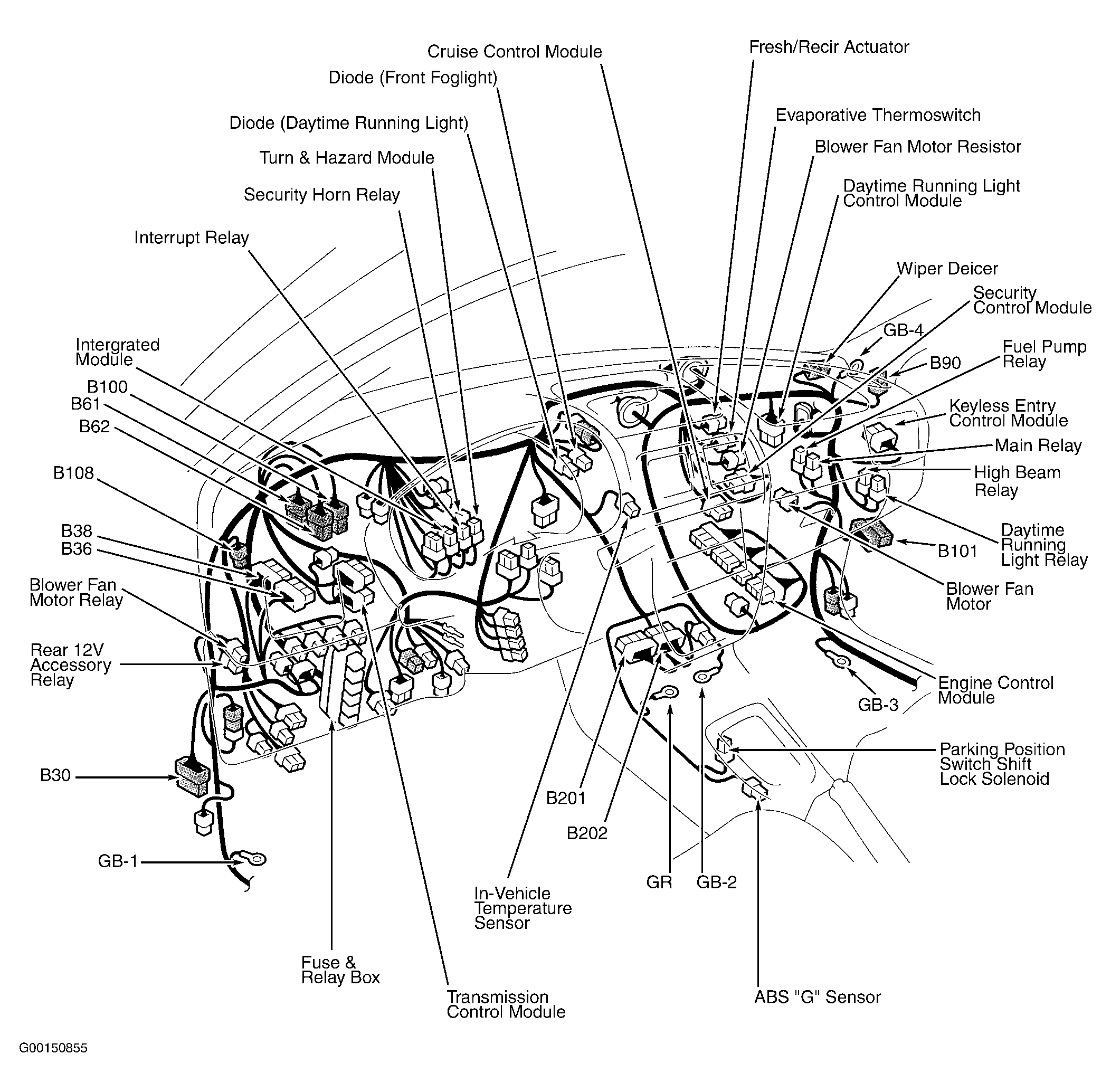

| Auto A/C Control Module | Behind lower center of dash. |
| Cruise Control Module | Behind right side of dash. See Figure. |
| Daytime Running Light Control Module | Behind right side dash. See Figure. |
| Engine Control Module | Under right side of dash. See Figure. |
| Integrated Module | Behind left side of dash. See Figure. |
| Keyless Entry Control Module | Behind right end of dash. See Figure. |
| Rear Wiper Intermittent Module | At right rear corner of cargo compartment. |
| Security Control Module | Behind right side of dash. See Figure. |
| Transmission Control Module | Behind left side of dash. See Figure. |
| Turn & Hazard Module | Behind left side of dash. See Figure. |
