Instrumentation/Driver Info: Speedometer: Inspection

Measure the speedometer resistance.

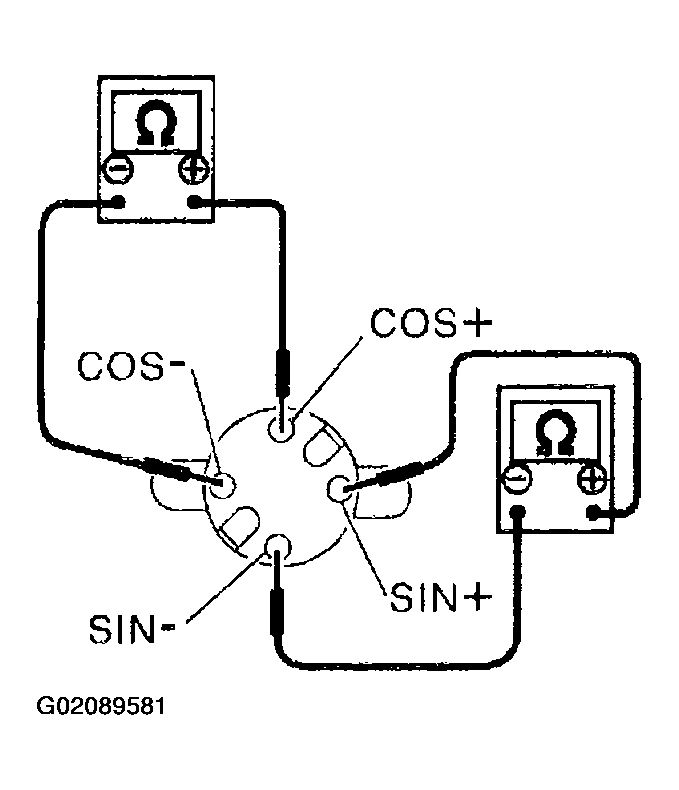

Fig 1: Measuring Speedometer Resistance

Courtesy of SUBARU OF AMERICA, INC.

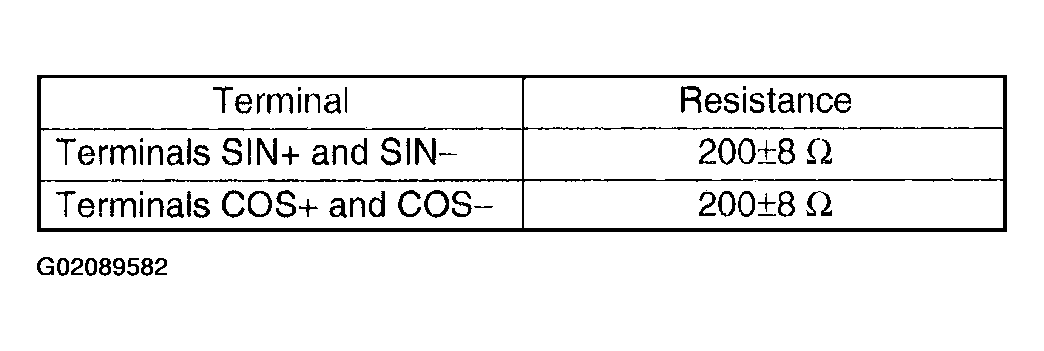

Fig 2: Speedometer Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the speedometer.

If OK, replace the combination meter printed circuit.
