Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

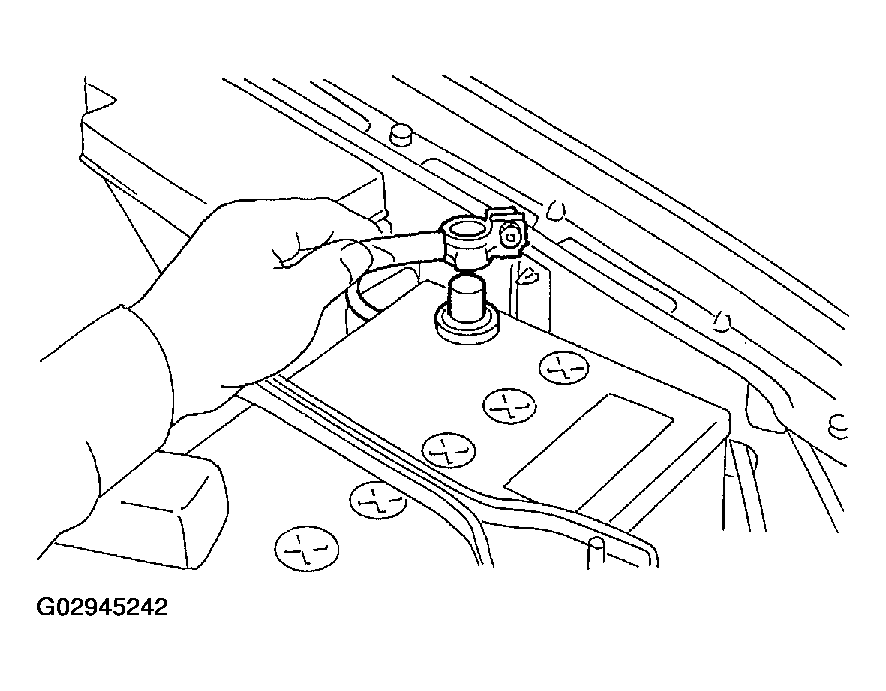

    Fig 1: Disconnecting Ground Cable From Battery
    G02945242Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the intake air temperature sensor.
  3. Remove the intake air temperature sensor from air cleaner case.

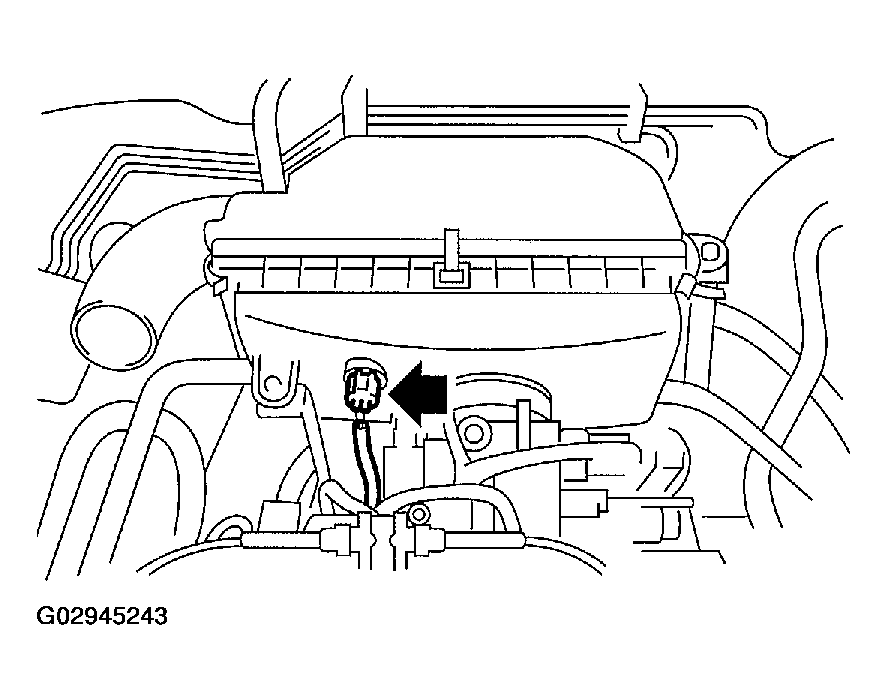

    Fig 2: Locating Intake Air Temperature Sensor For Removal
    G02945243Courtesy of SUBARU OF AMERICA, INC.
