Control Valve Body: Removal

Lift-up the vehicle.
Clean the transmission exterior
Drain the ATF completely.
NOTE:
- Tighten the ATF drain plug after draining the ATF.
- Replace the gasket with a new one.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

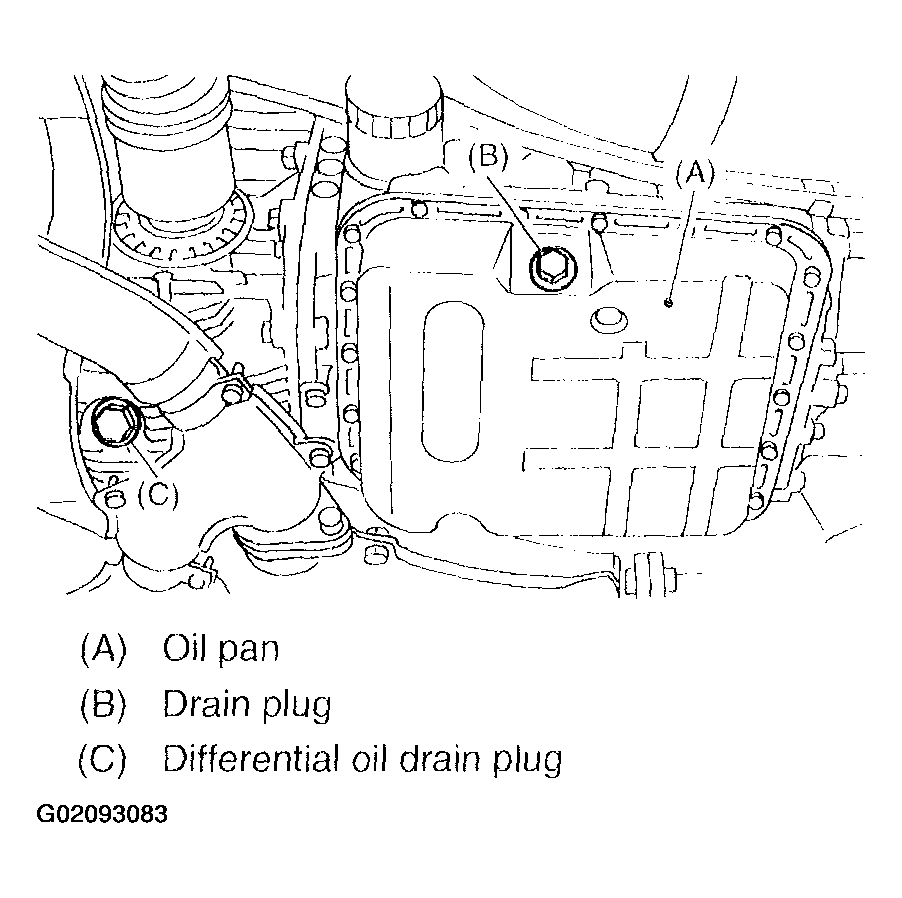

Fig 1: Draining ATF
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pan.
Remove and clean the magnet.
Remove the old gasket on the oil pan and transmission case completely.
Disconnect the duty solenoids and ATF temperature sensor connectors. Remove the connectors from clip and disconnect the connectors.

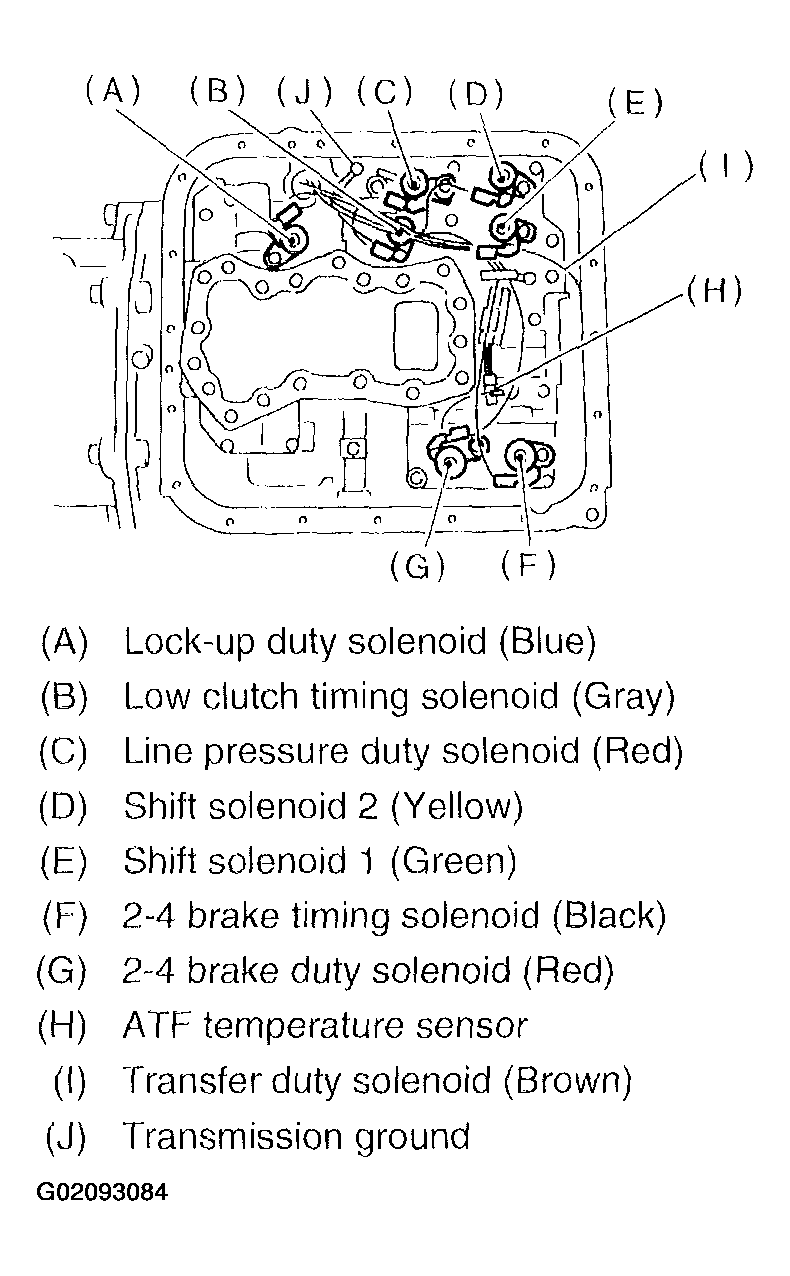

Fig 2: Disconnecting Duty Solenoids & ATF Temperature Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the control valve.

NOTE: When removing the control valve body, be careful not to interfere with transfer duty solenoid wiring.

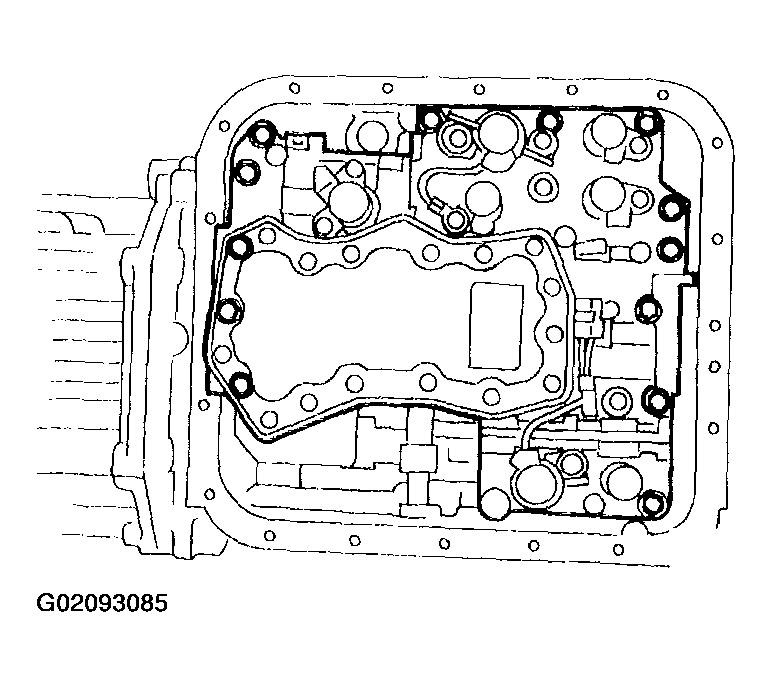

Fig 3: Removing Control Valve Body

Courtesy of SUBARU OF AMERICA, INC.
