Dropping Resistor: Removal

  1. Disconnect the ground terminal from battery.

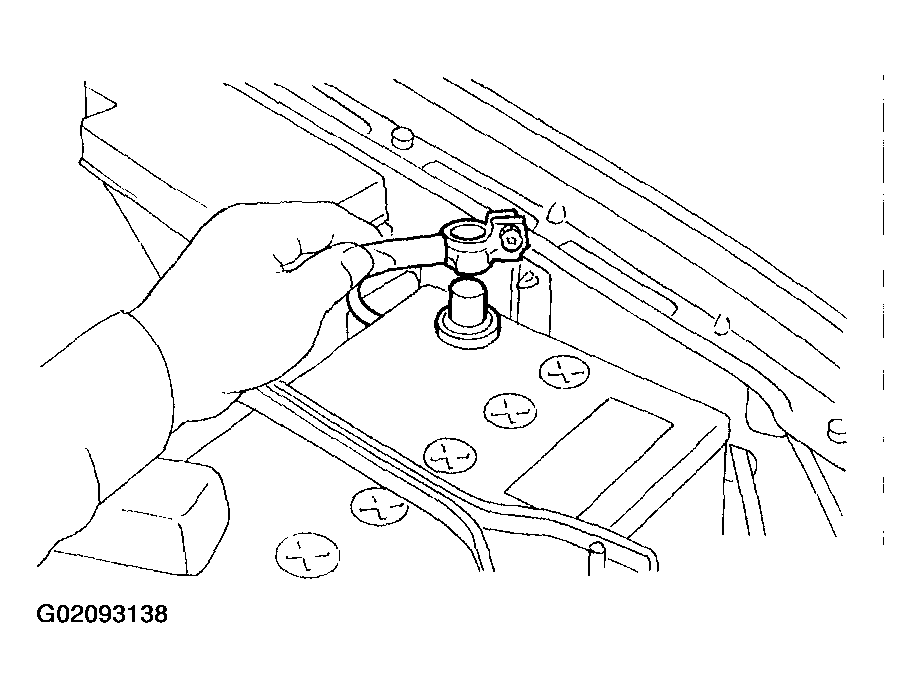

    Fig 1: Disconnecting Ground Terminal From Battery
    G02093138Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from dropping resistor.
  3. Remove the dropping resistor.

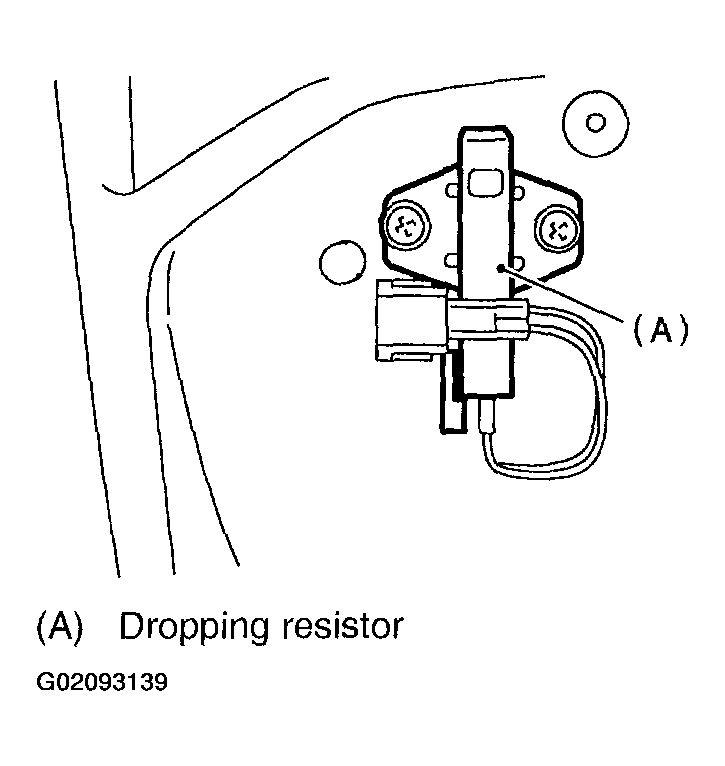

    Fig 2: Removing Dropping Resistor
    G02093139Courtesy of SUBARU OF AMERICA, INC.
