Extension Case: Disassembly

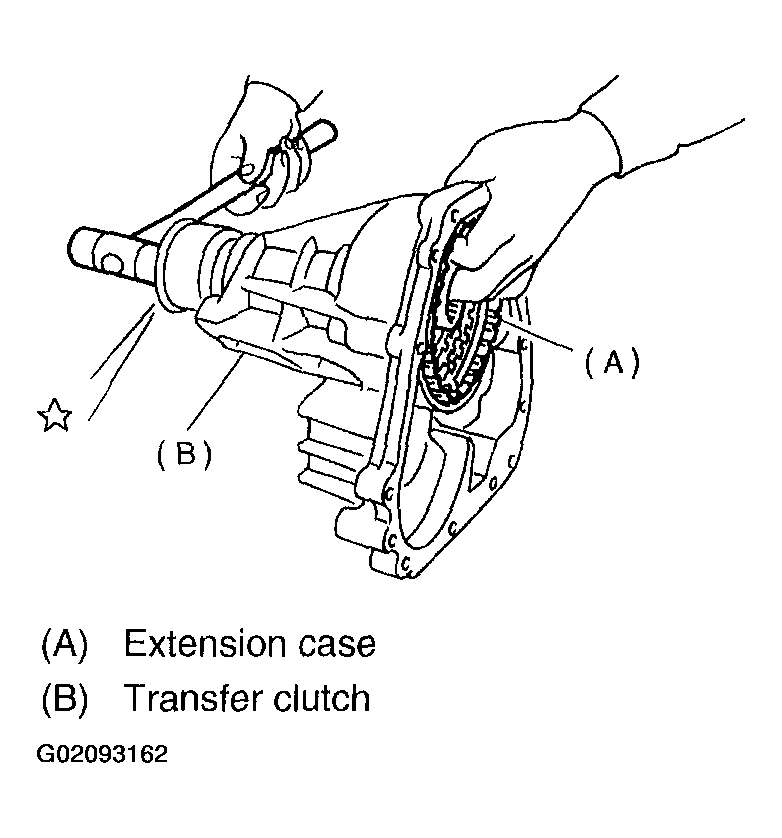

  1. Take out the transfer clutch by lightly tapping the end of the rear drive shaft.
    NOTE: Be careful not to damage the oil seal in the extension.
    Fig 1: Removing Transfer Clutch
    G02093162Courtesy of SUBARU OF AMERICA, INC.

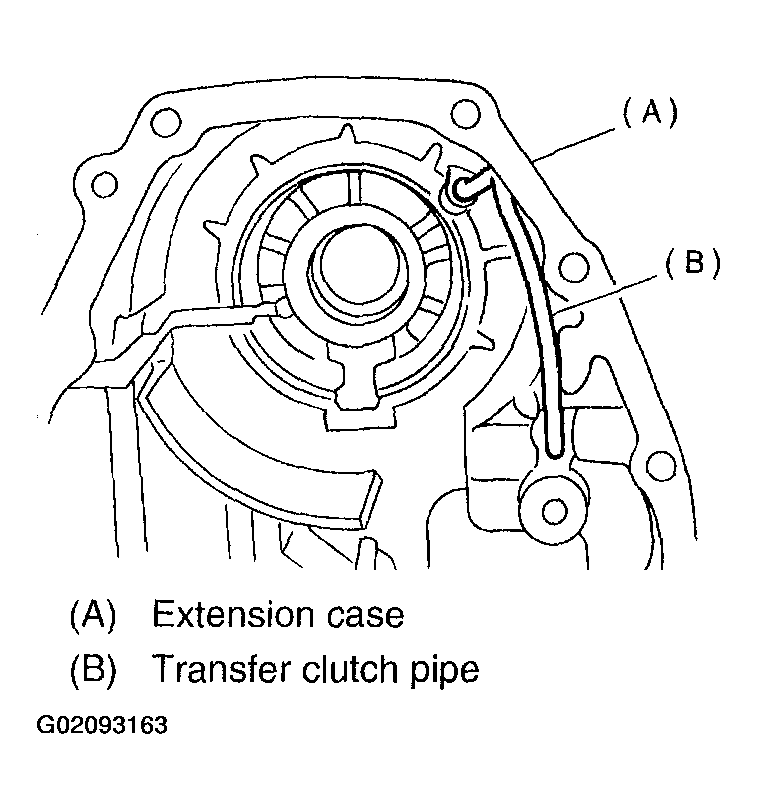

  2. Remove the transmission clutch pipe without bending pipe.
    Fig 2: Removing Transmission Clutch Pipe
    G02093163Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the dust cover from the extension case.
  4. Remove the oil seal from the extension case.
