Differential Case Assembly

  1. Using a press and ST, remove the taper roller bearing.

    ST 498077000 REMOVER

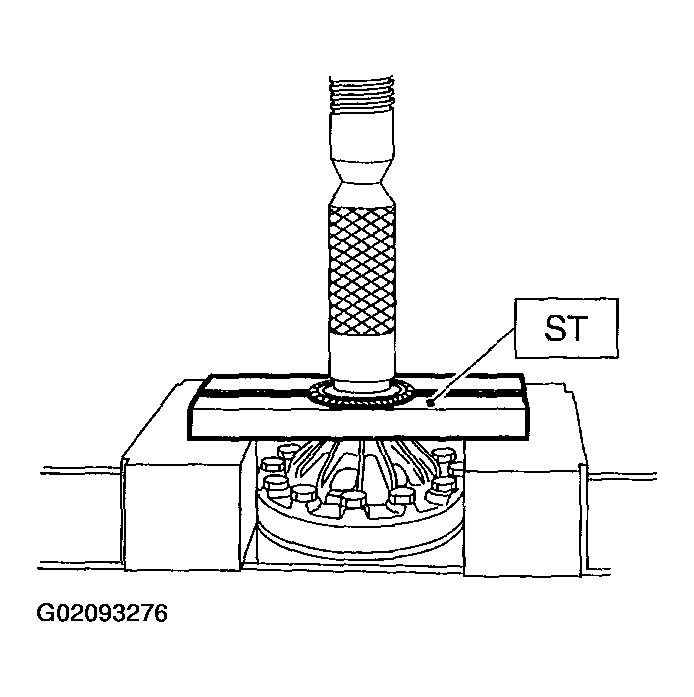

    Fig 1: Removing Taper Roller Bearing
    G02093276Courtesy of SUBARU OF AMERICA, INC.
  2. Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

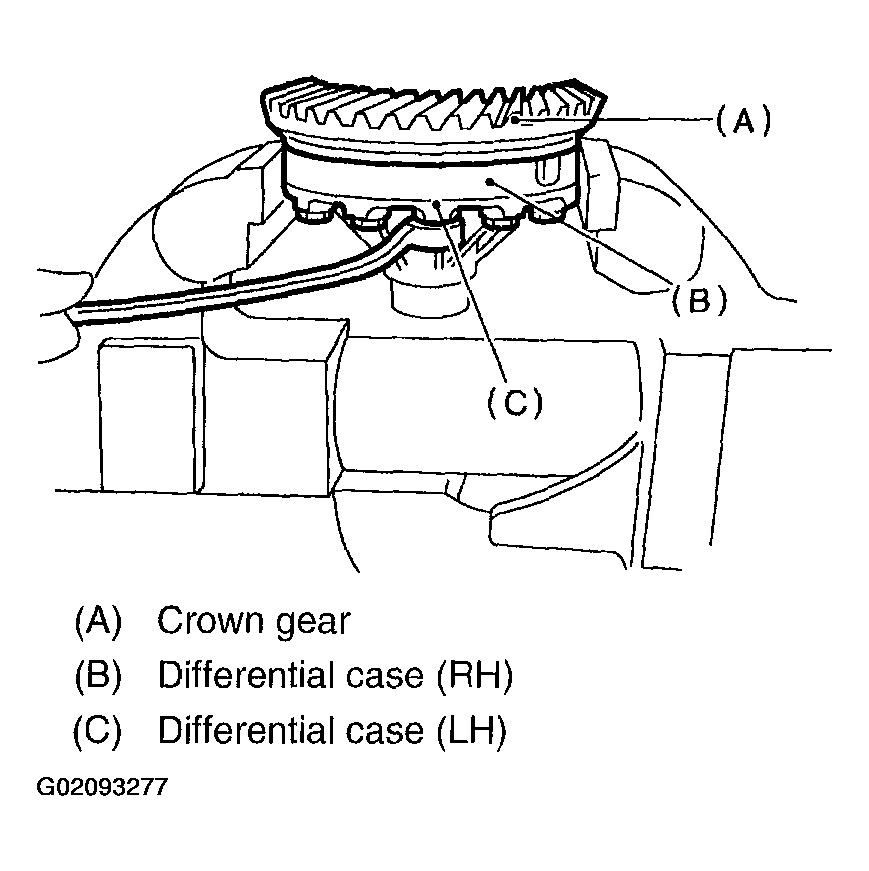

    Fig 2: Removing Crown Gear Tightening Bolts
    G02093277Courtesy of SUBARU OF AMERICA, INC.
  3. Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

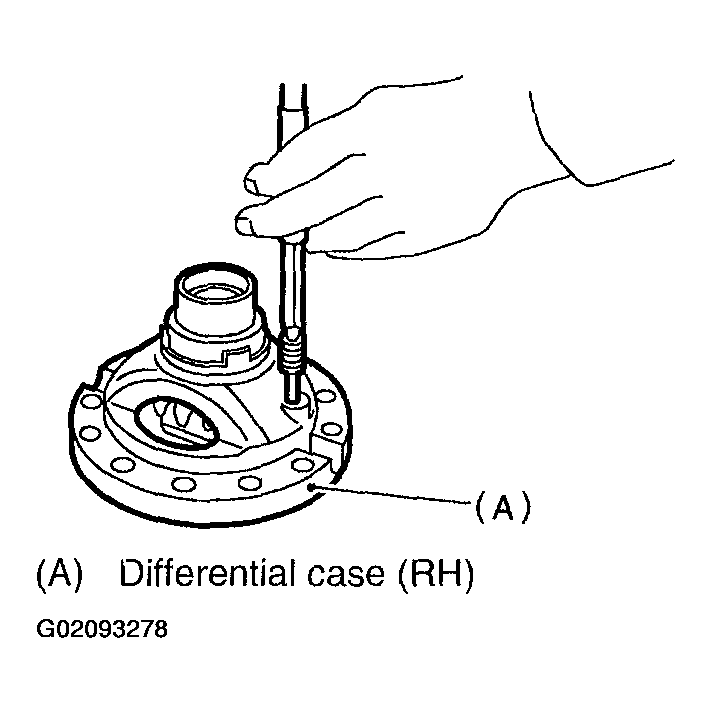

    Fig 3: Removing Straight Pin & Shaft
    G02093278Courtesy of SUBARU OF AMERICA, INC.
