Side Retainer

NOTE: After adjusting the drive pinion backlash and tooth contact, remove and install the oil seal and O-ring.

Remove O-ring.

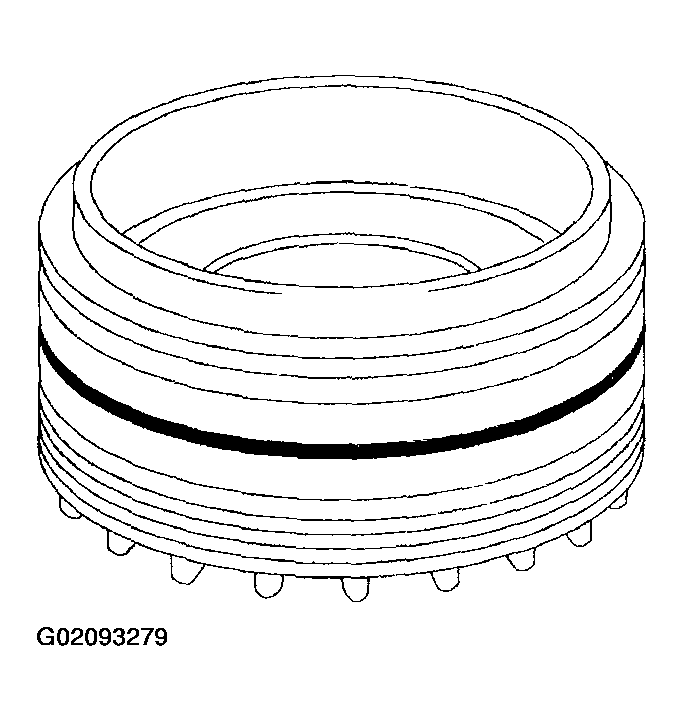

Fig 1: Removing O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove oil seal.

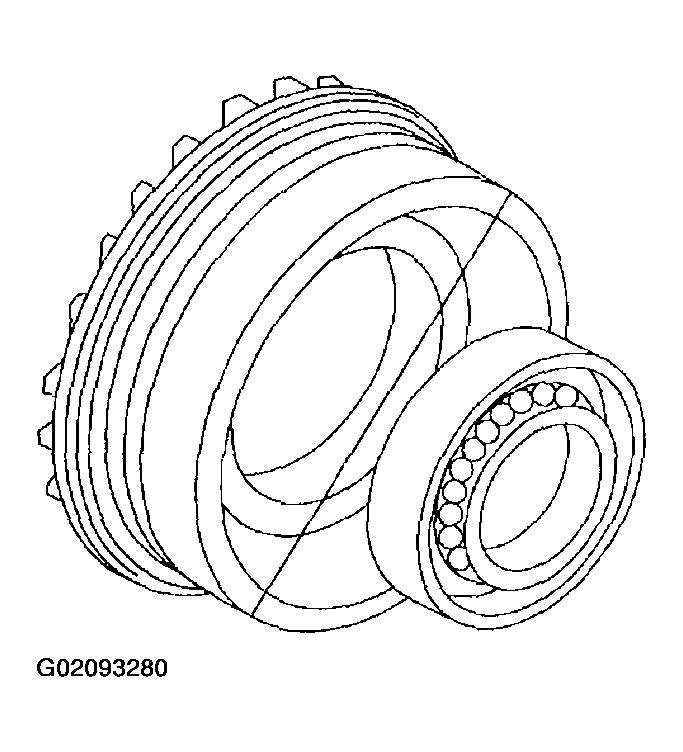

Fig 2: Removing Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Take out either split pin, remove claw. ST 398527700 PULLER ASSY

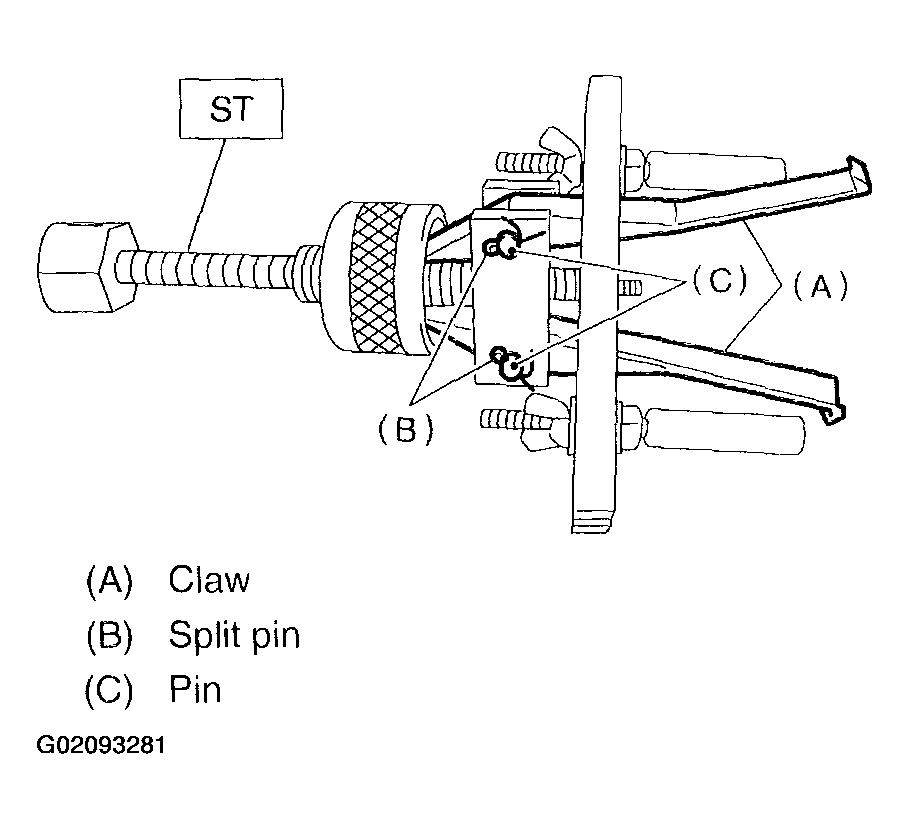

Fig 3: Removing Claw
Courtesy of SUBARU OF AMERICA, INC.
Securely attach two claws to outer race, set ST to side retainer. ST 398527700 PULLER ASSY

Fig 4: Securing Attach Claws To Outer Race
Courtesy of SUBARU OF AMERICA, INC.
Return removed claw to the original position, and install pin and split pin.
Hold the shaft of ST to avoid removing from side retainer, and then remove the bearing outer race.
ST 398527700 PULLER ASSY<

NOTE: Replace bearing inner and outer races as a single unit.

Fig 5: Removing Bearing Outer Race
Courtesy of SUBARU OF AMERICA, INC.
