Front Differential: Installation

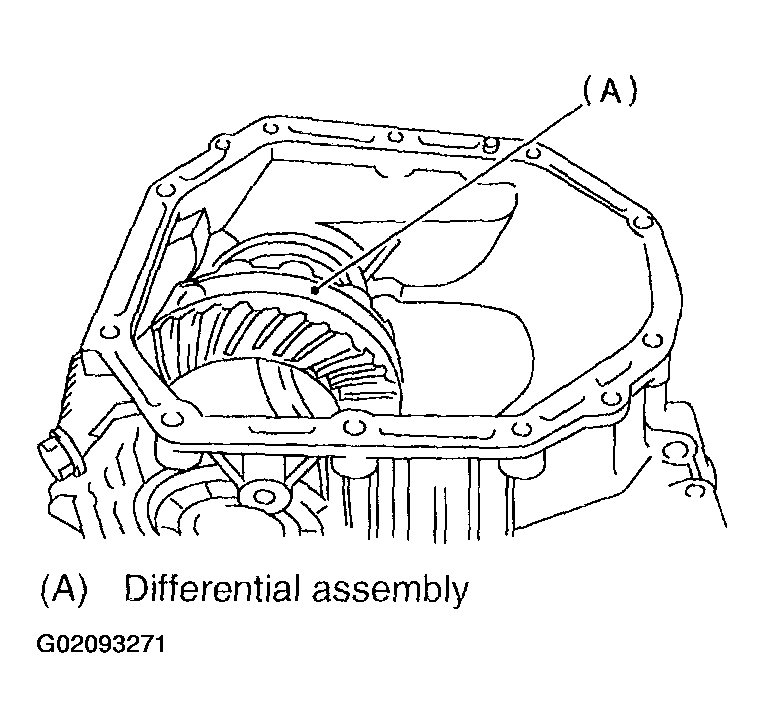

- Install the differential assembly to the case, paying special attention not to damage the inside of the case (particularly, the differential side retainer contact surface).
Courtesy of SUBARU OF AMERICA, INC.
- Remove the O-rings from left and right side retainer.
- Using ST, install the side retainers. Refer to
REMOVAL , Front Differential.
- ST 499787000 WRENCH ASSY

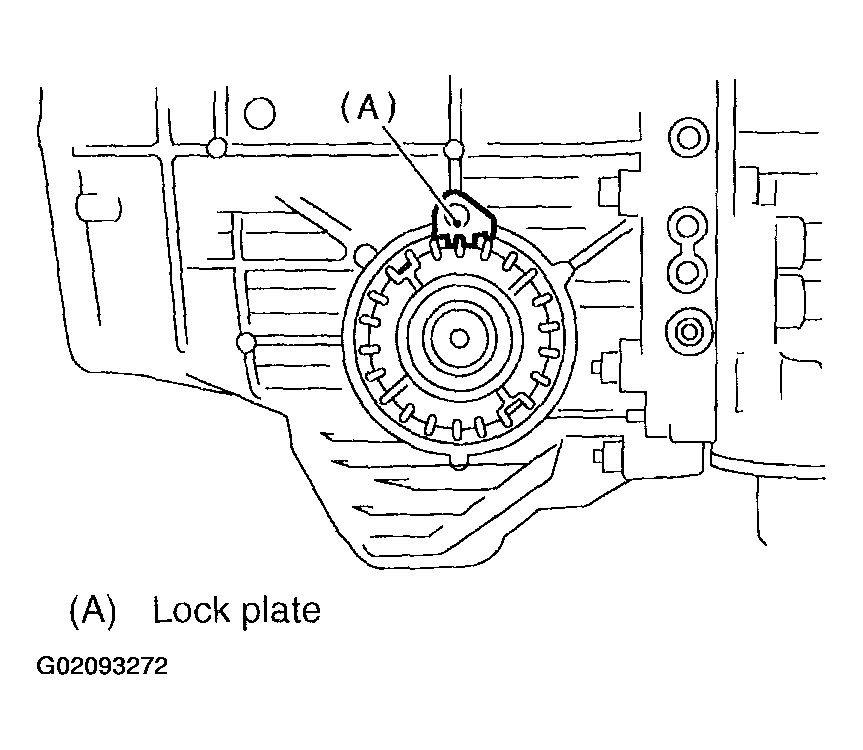

- Install the lock plate.
- Tightening torque:
25 N.m (2.5 kgf-m, 18.1 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.

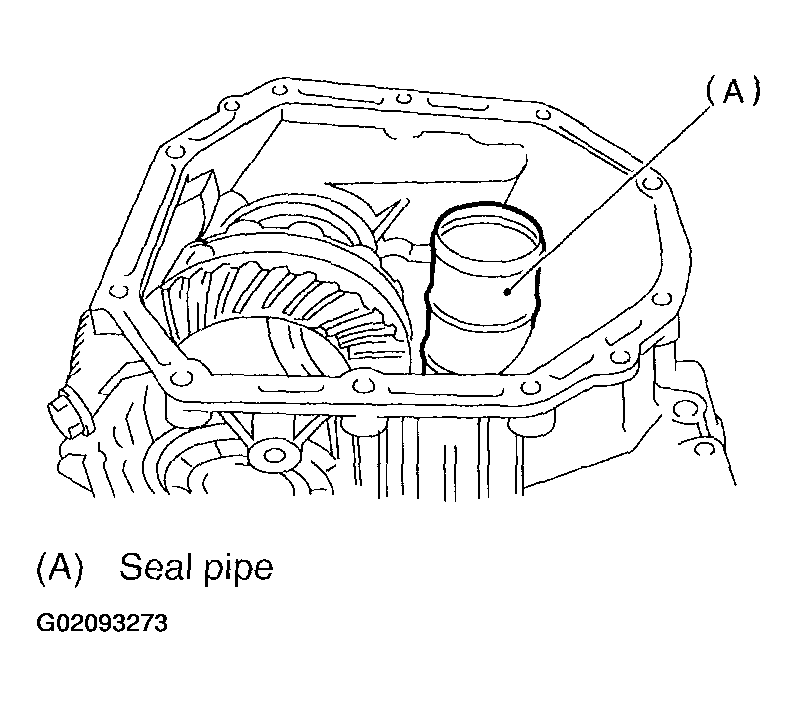

- Install the new seal pipe to the torque converter clutch case.
Courtesy of SUBARU OF AMERICA, INC.
- Install the torque converter clutch case to transmission case. Refer to
INSTALLATION , Torque Converter Clutch Case.
- Install air breather hose.

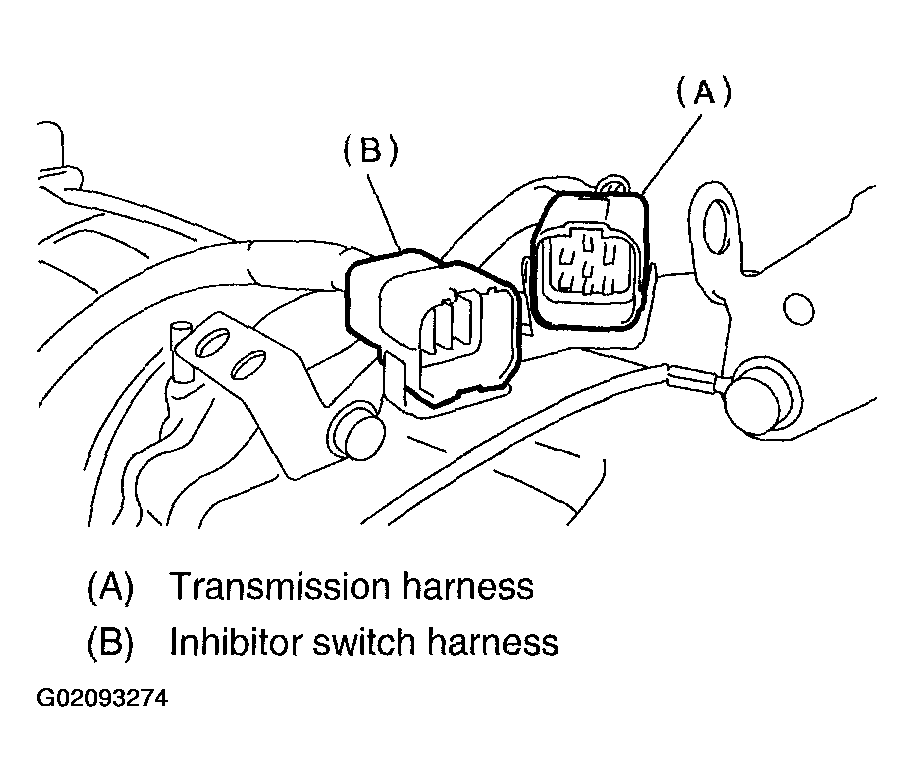

- Insert inhibitor switch and transmission connector into stay.
Courtesy of SUBARU OF AMERICA, INC.
- Install oil cooler pipes. Refer to
INSTALLATION , ATF Cooler Pipe and Hose.
- Install the oil charger pipe with O-ring. Refer to
INSTALLATION , Oil Charger Pipe.

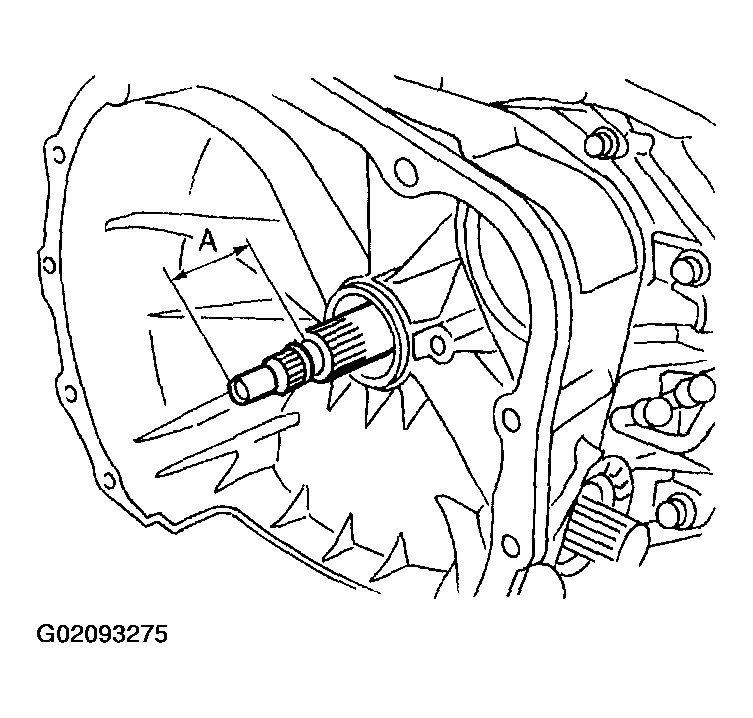

- Insert the input shaft while turning lightly by hand. At this time, not to damage the bushing.
- Normal protrusion A:
50 - 55 mm (1.97 - 2.17 in)
Courtesy of SUBARU OF AMERICA, INC.
- Install the torque converter clutch assembly. Refer to
INSTALLATION , Torque Converter Clutch Assembly.
- Install the transmission assembly to the vehicle. Refer to
INSTALLATION , Automatic Transmission Assembly.
