Oil Pump: Assembly

  1. Install oil pump rotor assembly to oil pump housing.

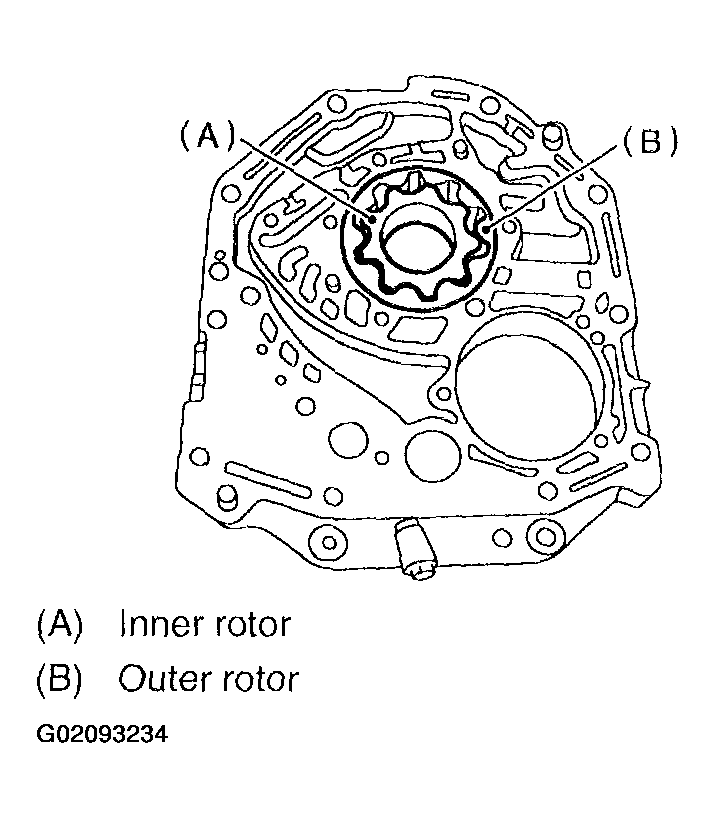

    Fig 1: Installing Oil Pump Rotor Assembly To Oil Pump Housing
    G02093234Courtesy of SUBARU OF AMERICA, INC.
  2. Align both pivots with the pivot holes of the cover, and install the oil pump cover being careful not to apply undue force to the pivots.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

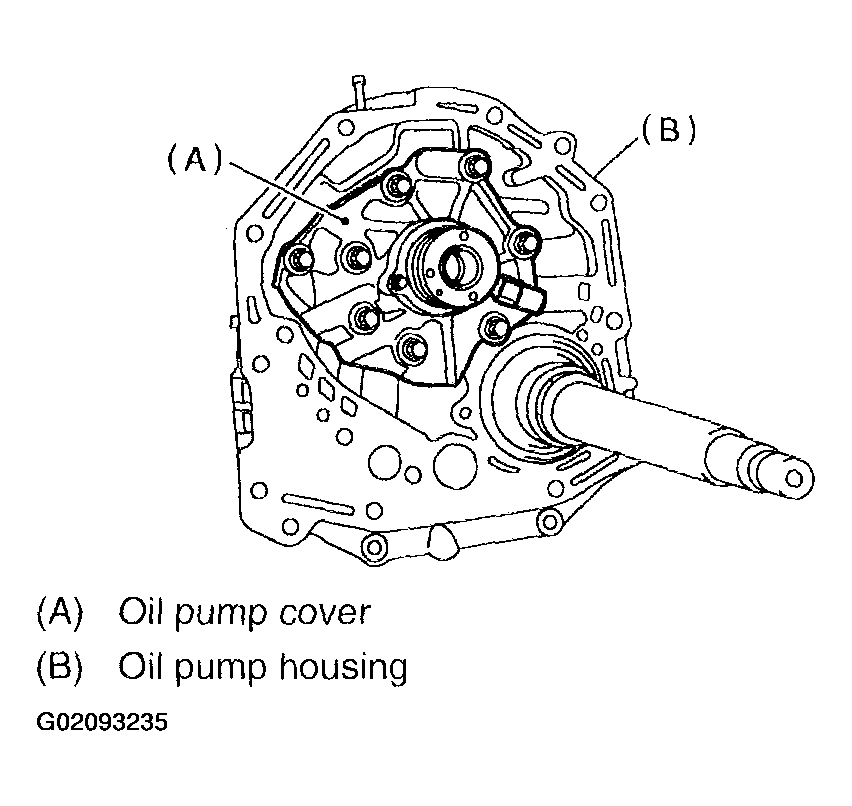

      Fig 2: Installing Oil Pump Cover
      G02093235Courtesy of SUBARU OF AMERICA, INC.
    2. After assembling, turn the oil pump shaft to check for smooth rotation of the rotor.
    3. Install the oil seal retainer and new seal rings. After adjusting the drive pinion backlash and tooth contact. Refer to ADJUSTMENT , Oil Pump.

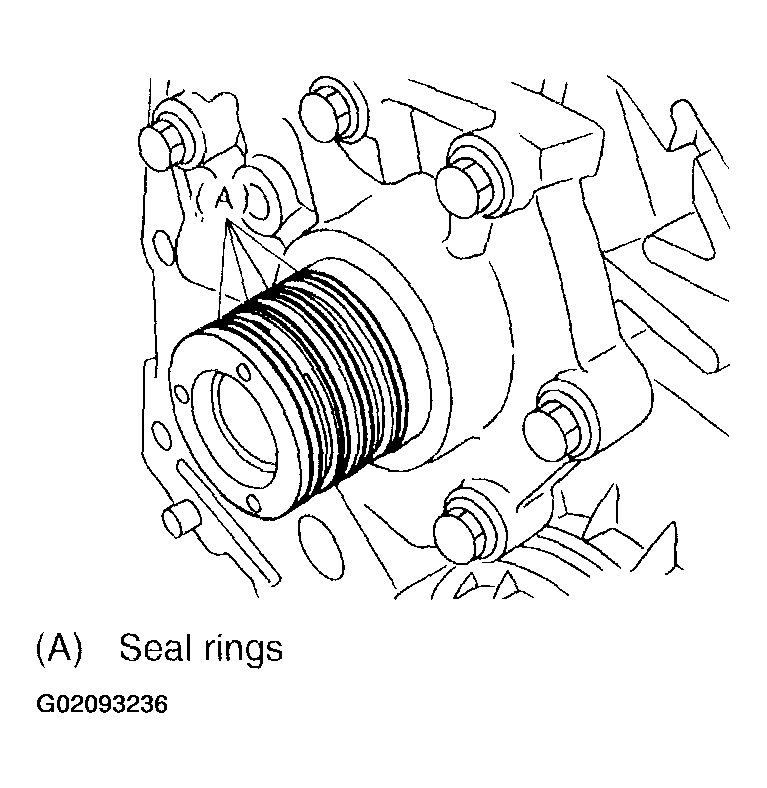

      Fig 3: Installing Oil Seal Retainer & Seal Rings
      G02093236Courtesy of SUBARU OF AMERICA, INC.
