Test Methods

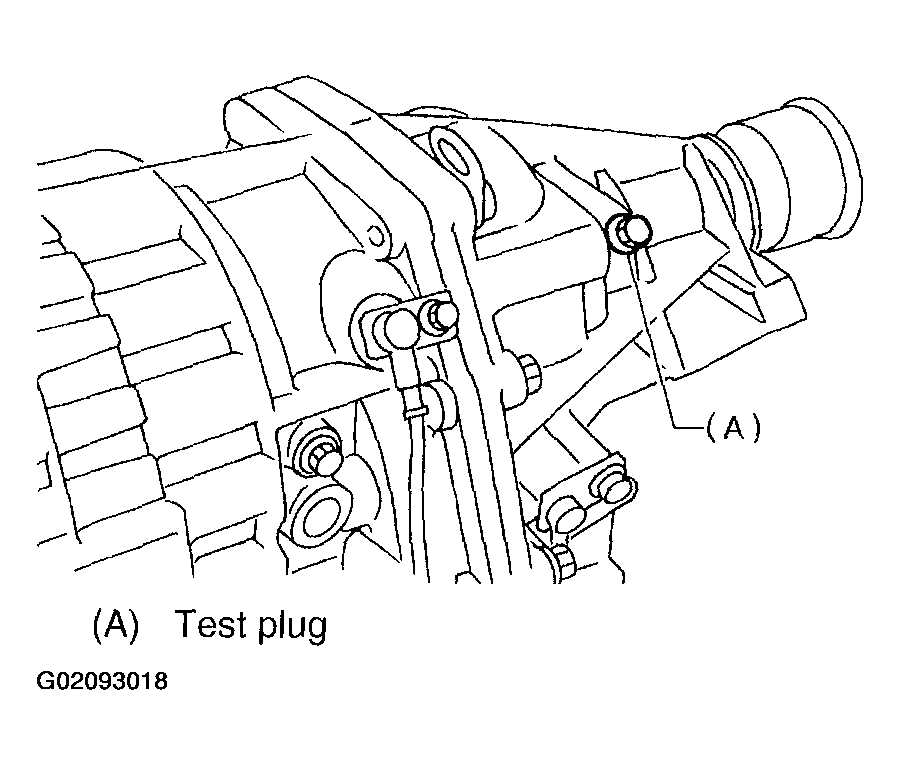

Check the transfer clutch pressure in accordance with the following chart in the same manner as with line pressure. Refer to LINE PRESSURE TEST .

1. ST 498897700 OIL PRESSURE ADAPTER SET
2. ST 498575400 OIL PRESSURE GAUGE ASSY
3. AWD mode: "D" range
4. FWD mode: "P" range, engine speed 2,000 rpm

Fig 1: Installing Spare Fuse On FWD Mode Switch

Courtesy of SUBARU OF AMERICA, INC.
