Electrical Specification

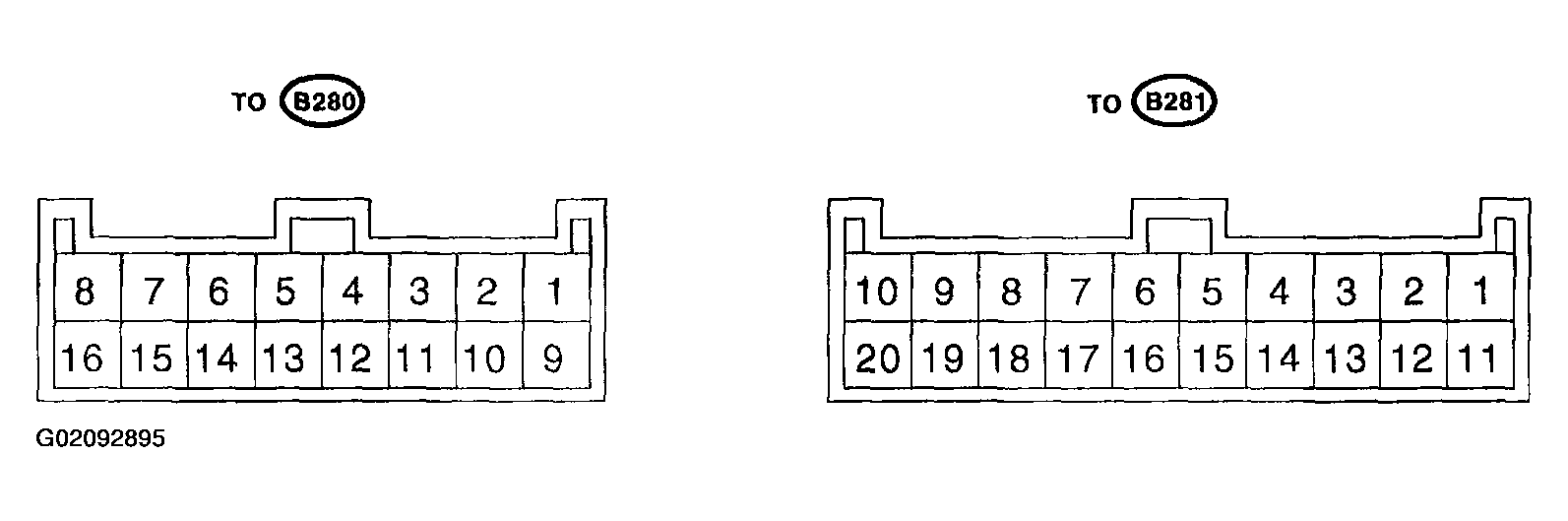

Fig 1: Identifying AT Shift Lock System Connector Terminal
G02092895Courtesy of SUBARU OF AMERICA, INC.

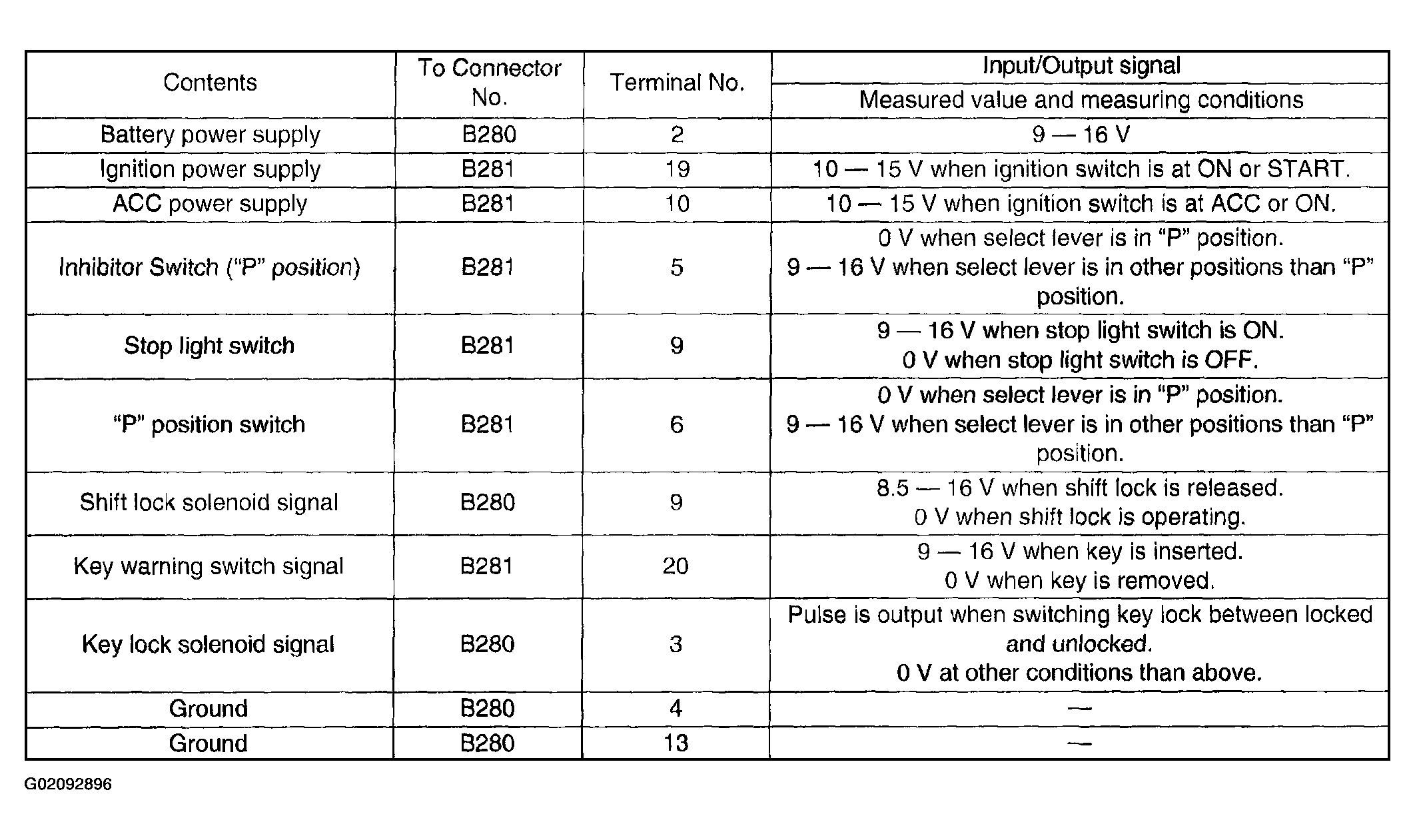

Fig 2: AT Shift Lock System Connector Terminal Chart
G02092896Courtesy of SUBARU OF AMERICA, INC.
