Integrated Module Power Supply And Ground Line

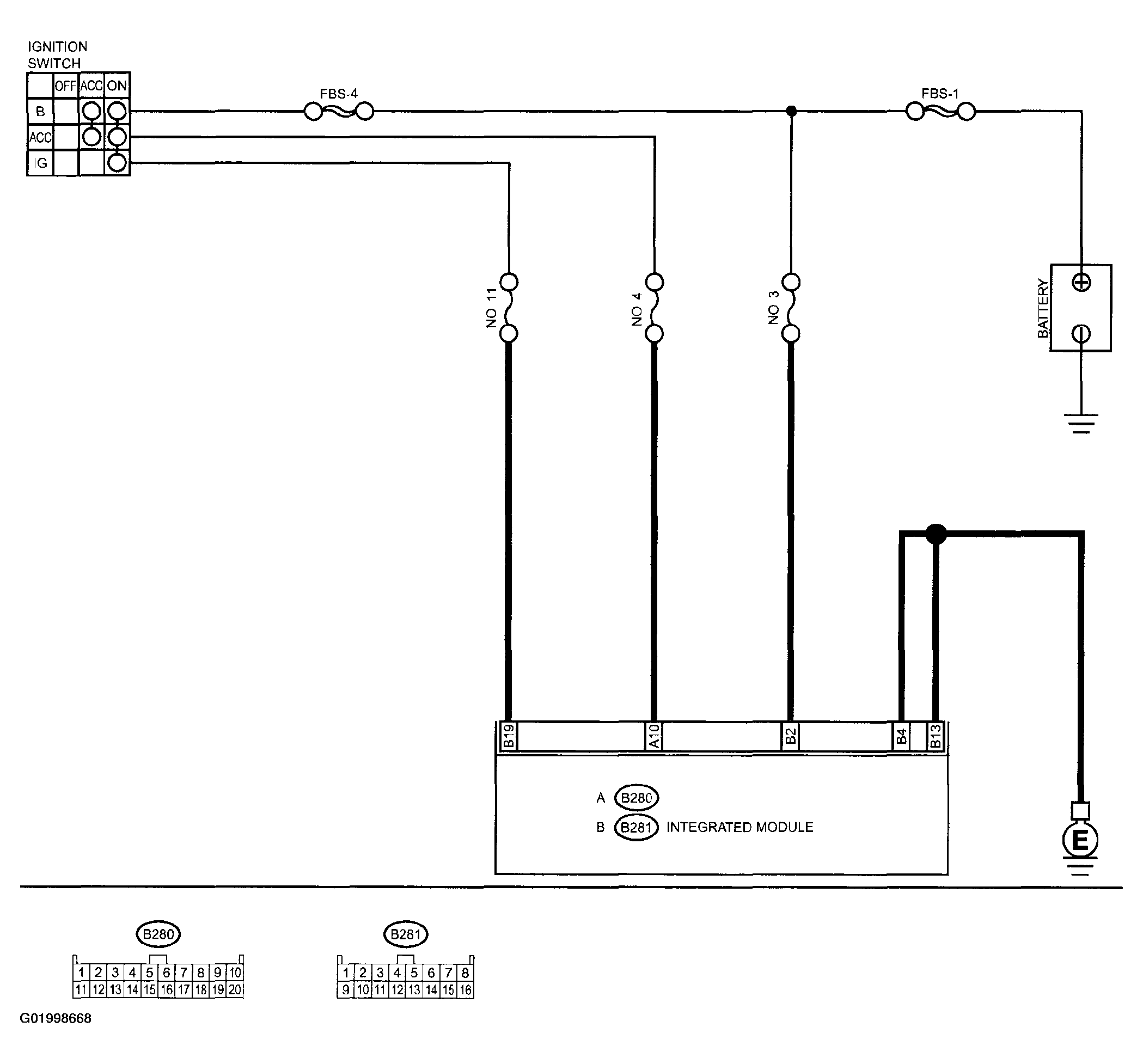

Fig 1: Integrated Module Power Supply & Ground Line Wiring Diagram
G01998668Courtesy of SUBARU OF AMERICA, INC.

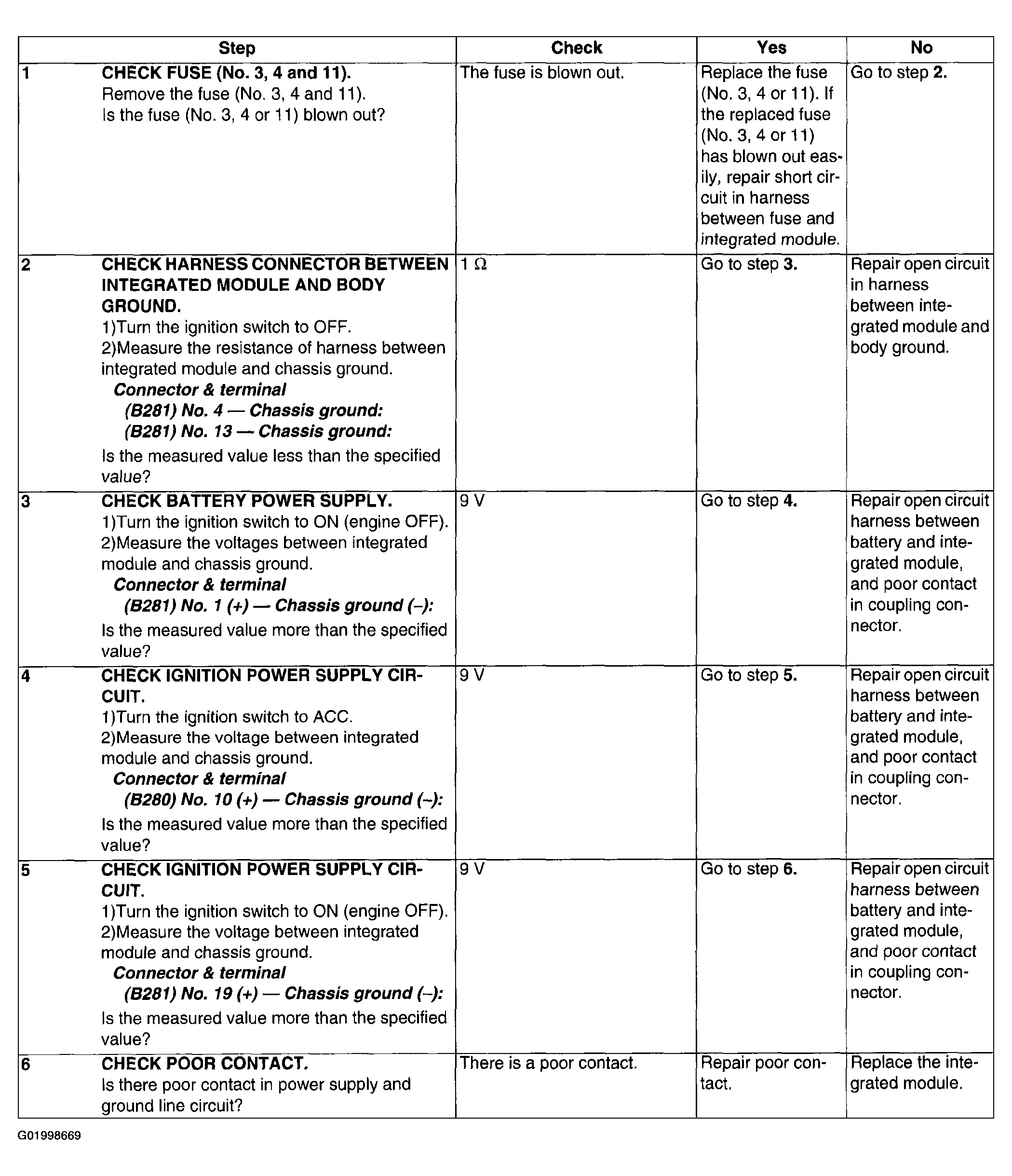

Fig 2: Integrated Module Power Supply & Ground Line Trouble Shooting Chart
G01998669Courtesy of SUBARU OF AMERICA, INC.
