Control Valve Body: Installation

Set the range select lever in "N" range.
Install the control valve, ATF temperature sensor and ground connectors.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

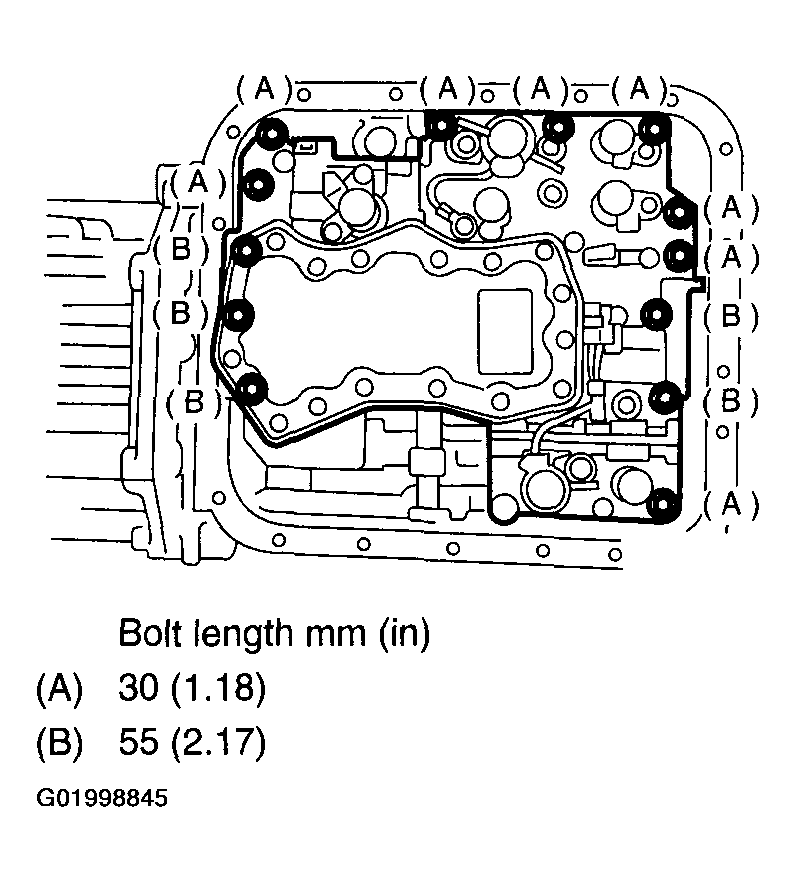

Fig 1: Installing Control Valve Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect all connectors.

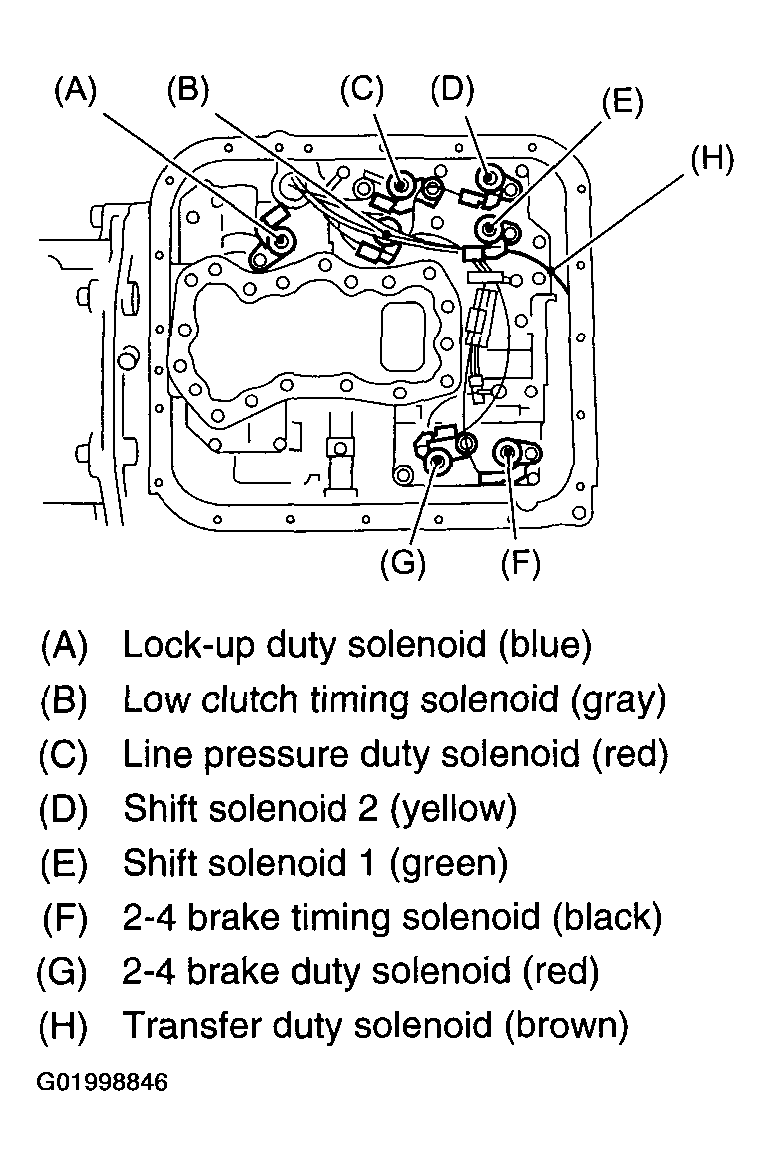

Fig 2: Connect All Connectors
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at specified position.

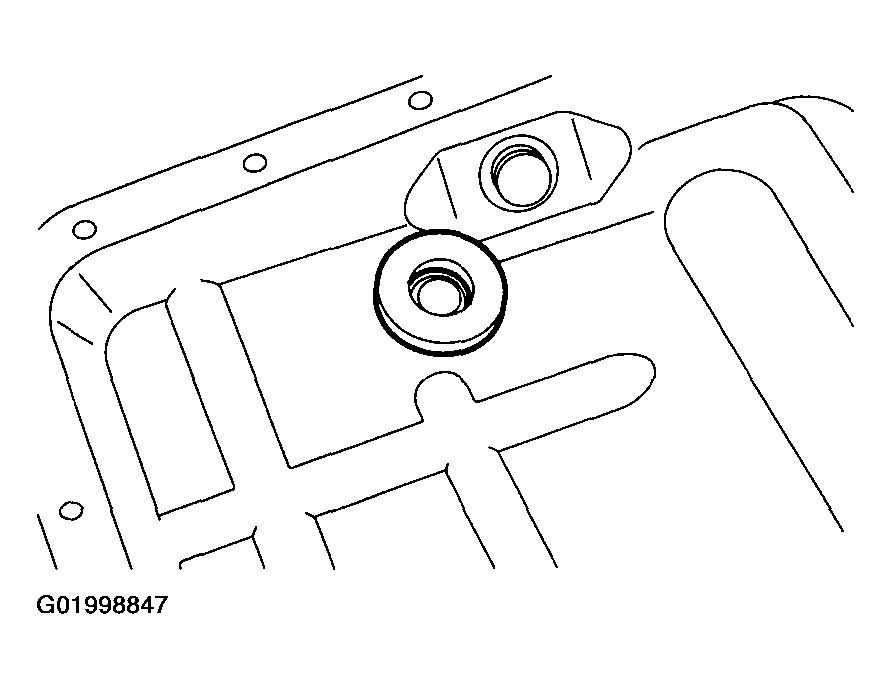

Fig 3: Attaching Magnet At Specified Position
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
1. Liquid gasket: Three Bond 1217B (Part No.K0877YA020)

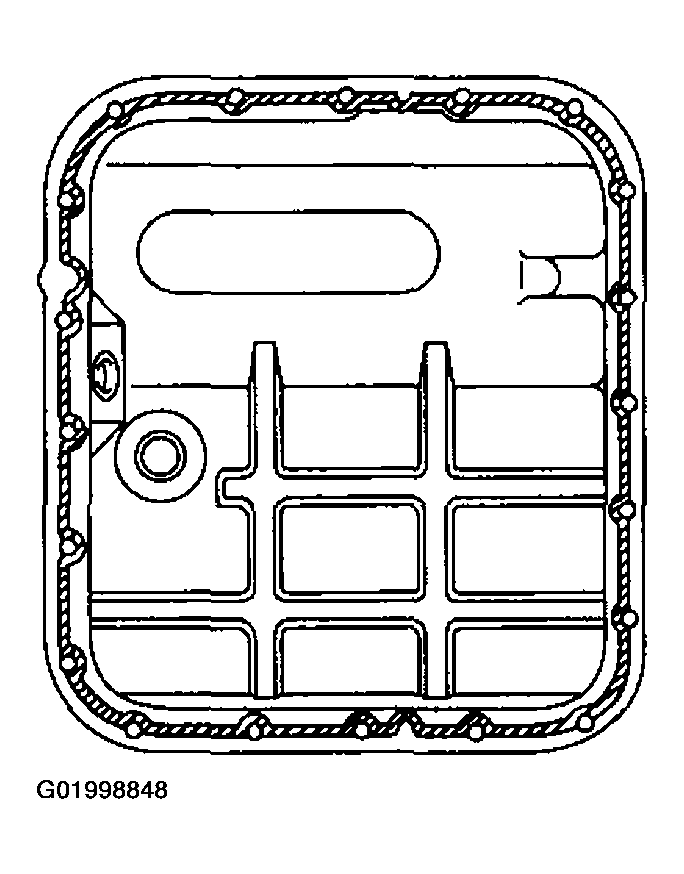

Fig 4: Applying Liquid Gasket To Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Apply a plenty amount of liquid gasket to three holes other than screw holes on transmission case.
1. Liquid gasket: Three Bond 1217B (Part No.K0877YA020)

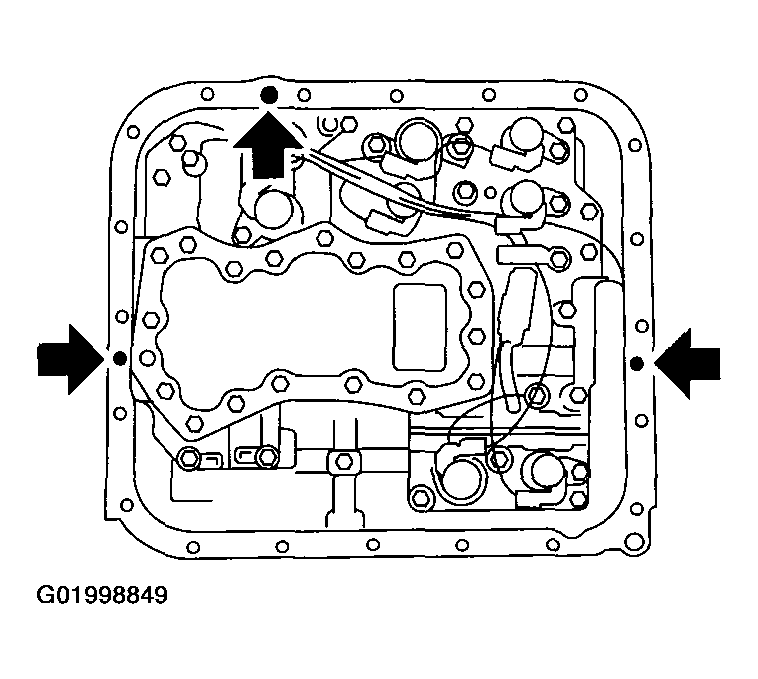

Fig 5: Applying Liquid Gasket To Three Holes
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan.
1. Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF into the oil charge pipe. See ATF .
Check the level of ATF.
See ATF .
