Sub Frame: Installation

Install in the reverse order of removal.

NOTE: Replace the M12 bolt with a new one.

Tightening torque:
1. T1: 34 N.m (3.5 kgf-m, 25 ft-lb)
2. T2: 55 N.m (5.6 kgf-m, 41 ft-lb)
3. T3: 71 N.m (7.2 kgf-m, 52 ft-lb)
4. T4: 105 N.m (10.7 kgf-m, 77 ft-lb)

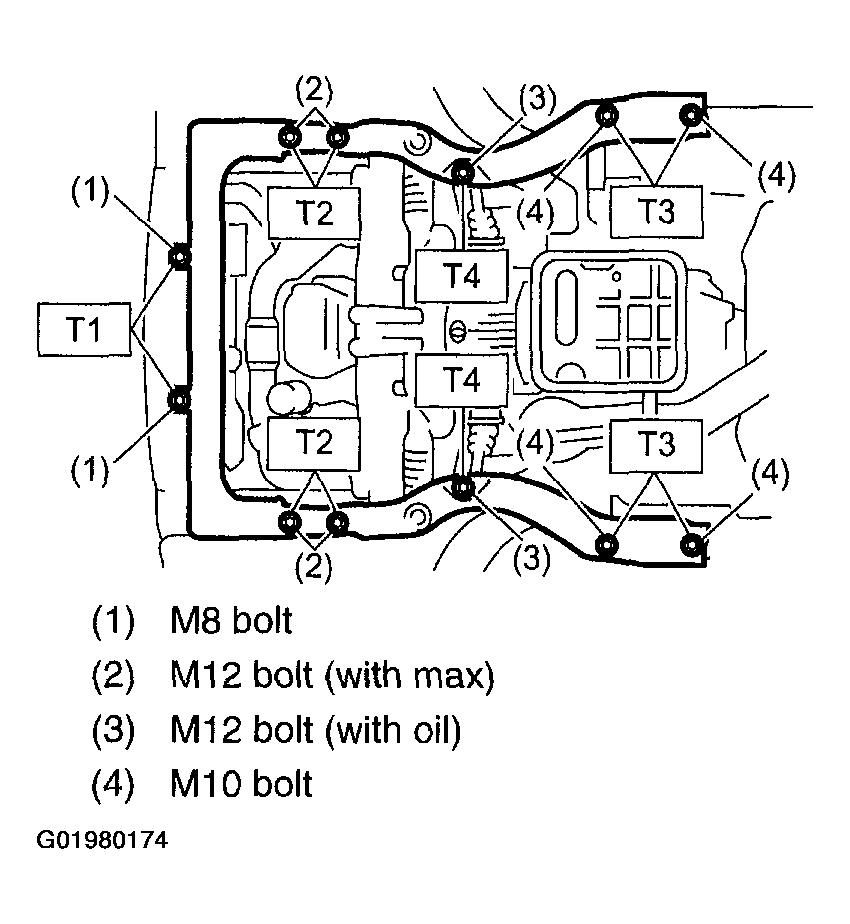

Fig 1: Identifying Bolt Type And Location

Courtesy of SUBARU OF AMERICA, INC.
