Integrated Module: Removal

  1. Disconnect the ground terminal from battery.

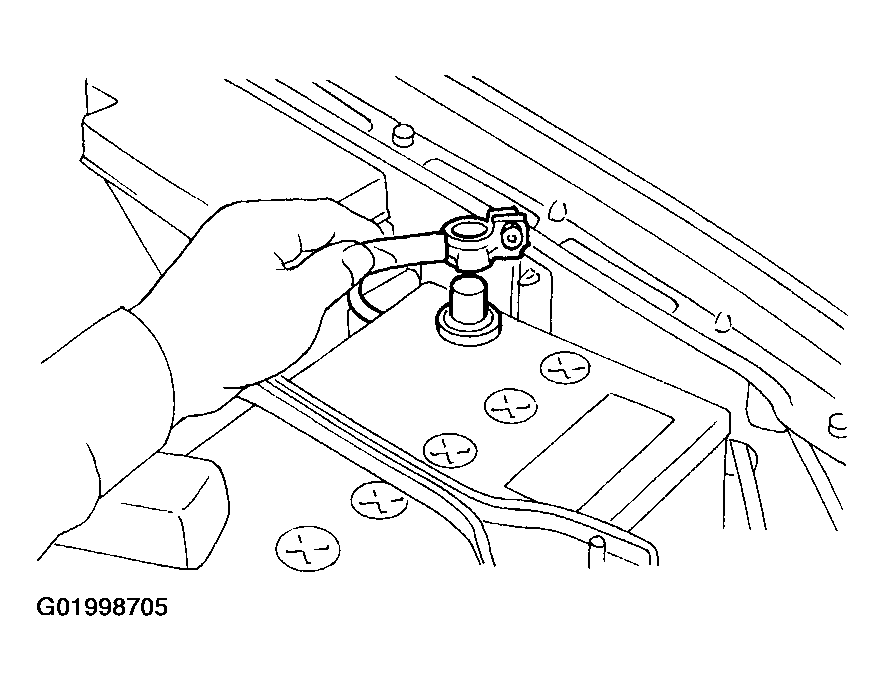

    Fig 1: Disconnecting Ground Terminal From Battery
    G01998705Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the lower cover.

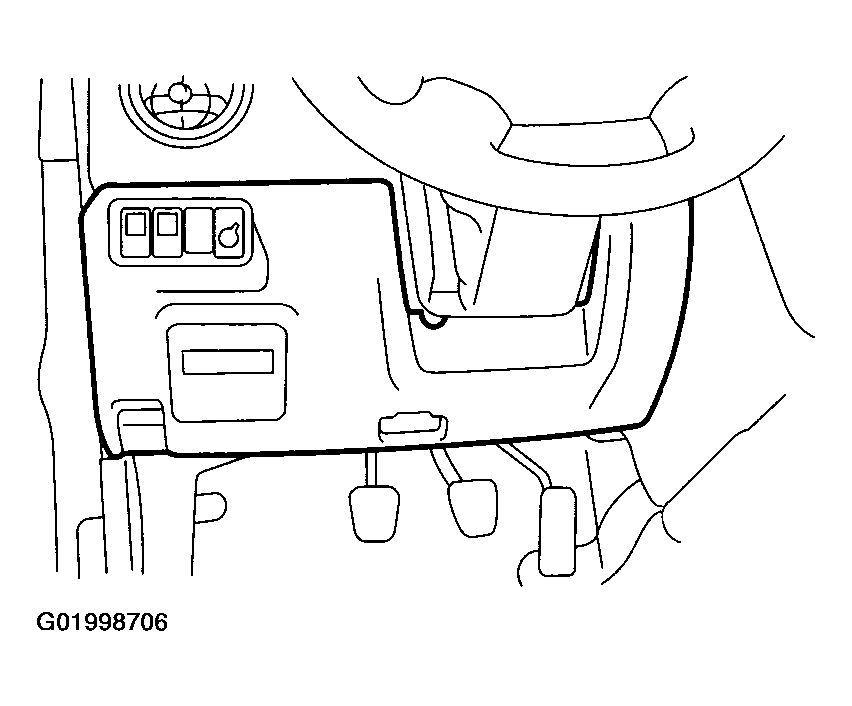

    Fig 2: Removing Lower Cover
    G01998706Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the knee bolster.

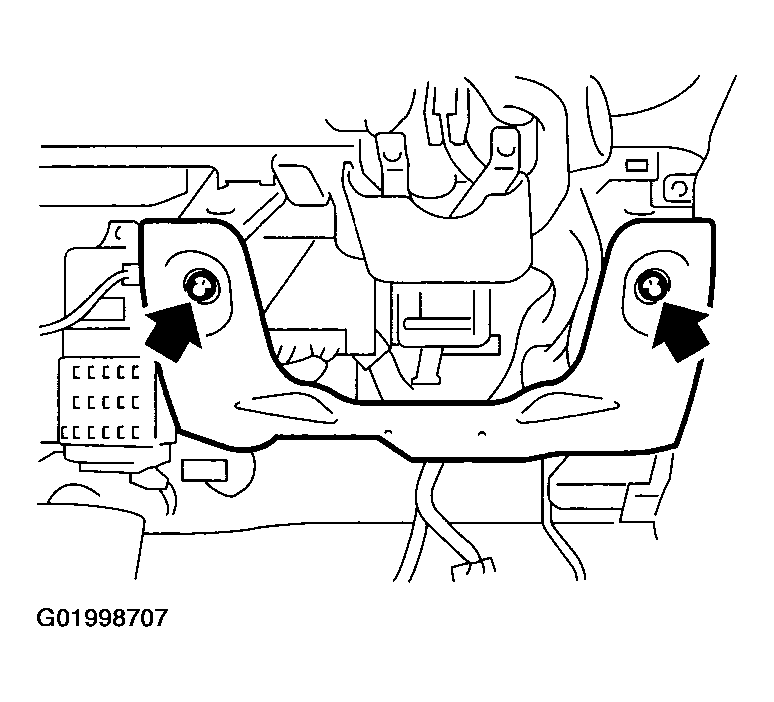

    Fig 3: Removing Knee Bolster
    G01998707Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from integrated module.
  5. Remove the integrated module.

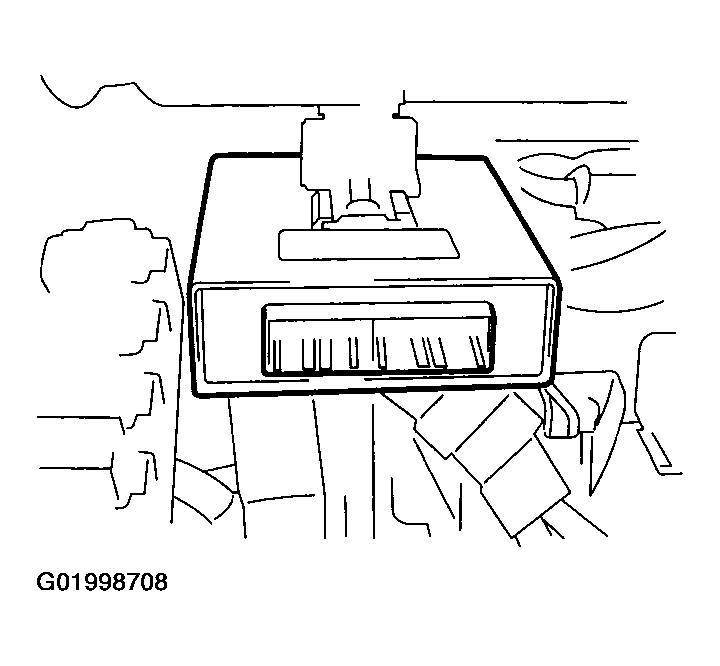

    Fig 4: Removing Integrated Module
    G01998708Courtesy of SUBARU OF AMERICA, INC.
