Transmission Control Device: Installation

Install detention spring to transmission case.
1. Tightening torque: 6 N.m (0.6 kgf-m, 4.3 ft-lb)

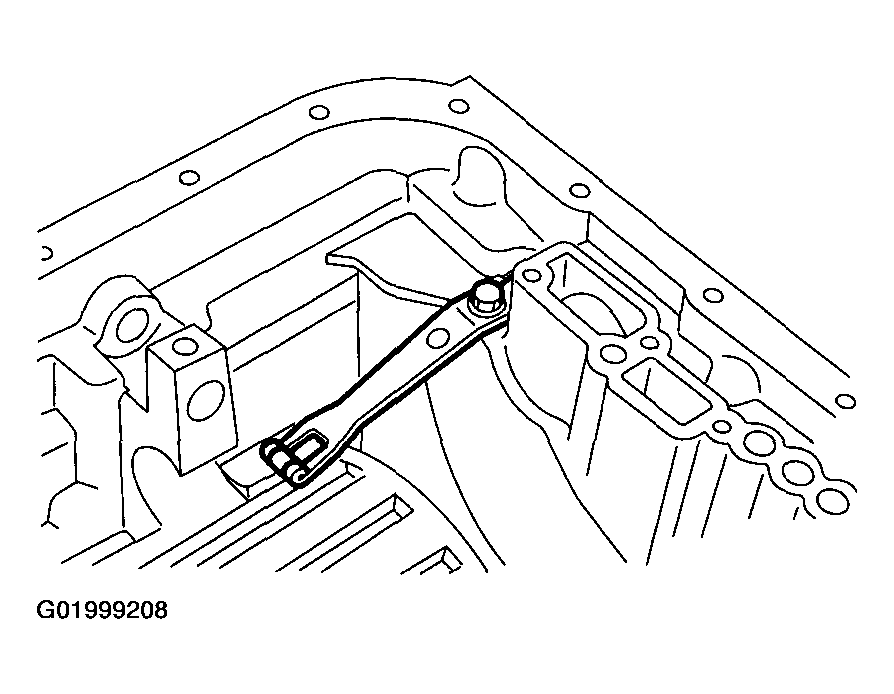

Fig 1: Installing Detention Spring To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Insert range select lever, and tighten bolt.
1. Tightening torque: 6 N.m (0.6 kgf-m, 4.3 ft-lb)

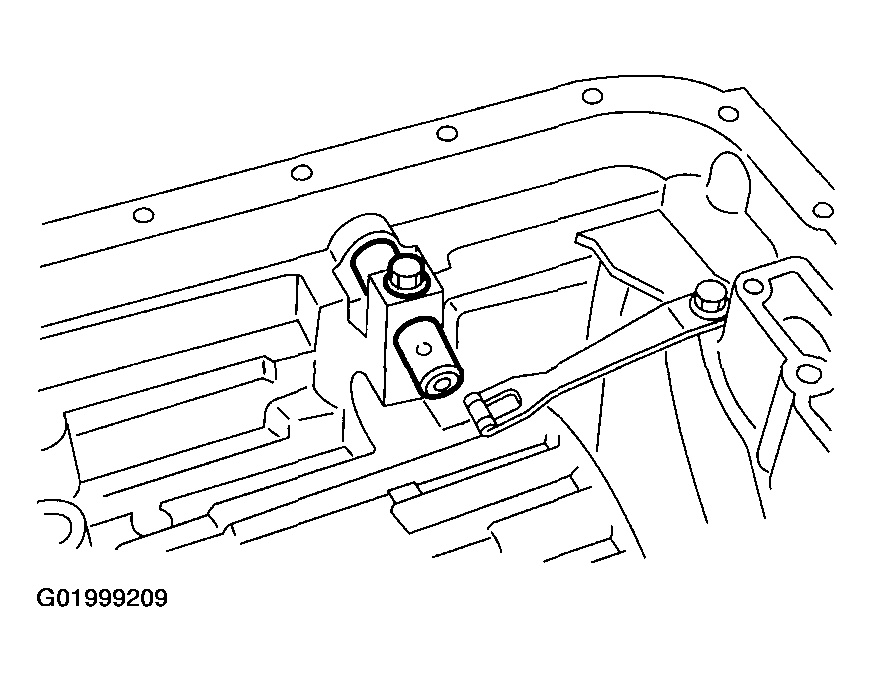

Fig 2: Inserting Range Select Lever & Tightening Bolt
Courtesy of SUBARU OF AMERICA, INC.
Insert manual plate and parking rod.

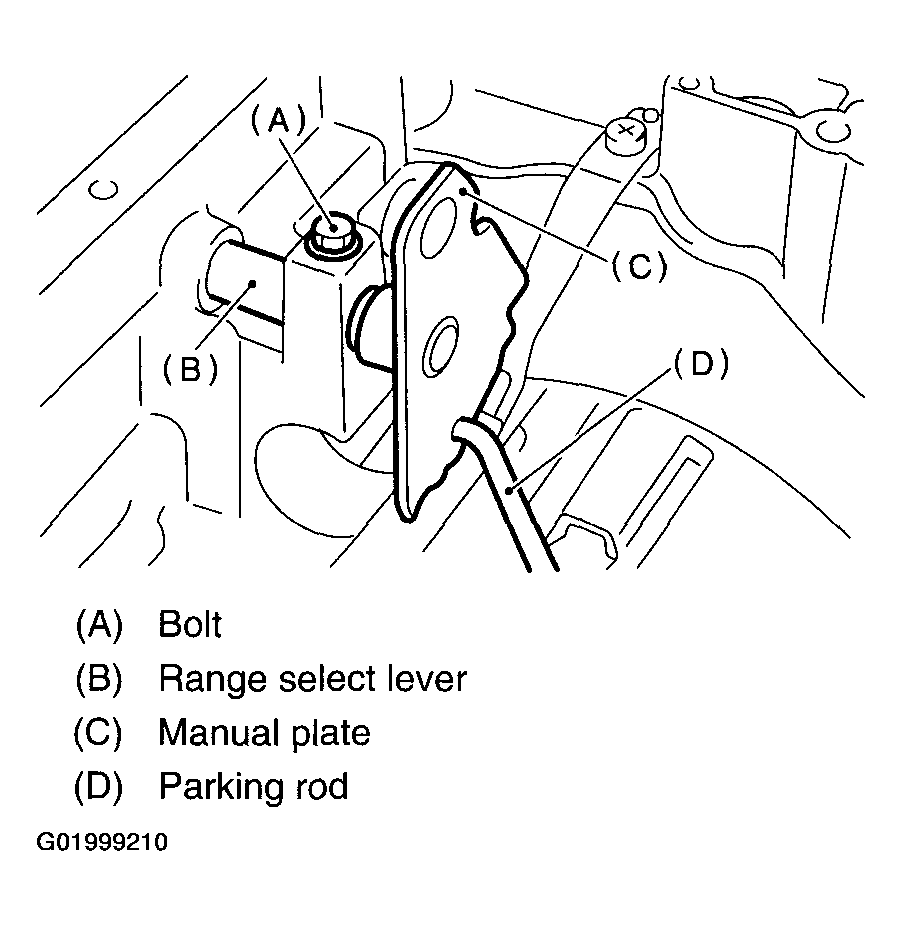

Fig 3: Inserting Manual Plate & Parking Rod
Courtesy of SUBARU OF AMERICA, INC.
Insert spring pin to manual plate.

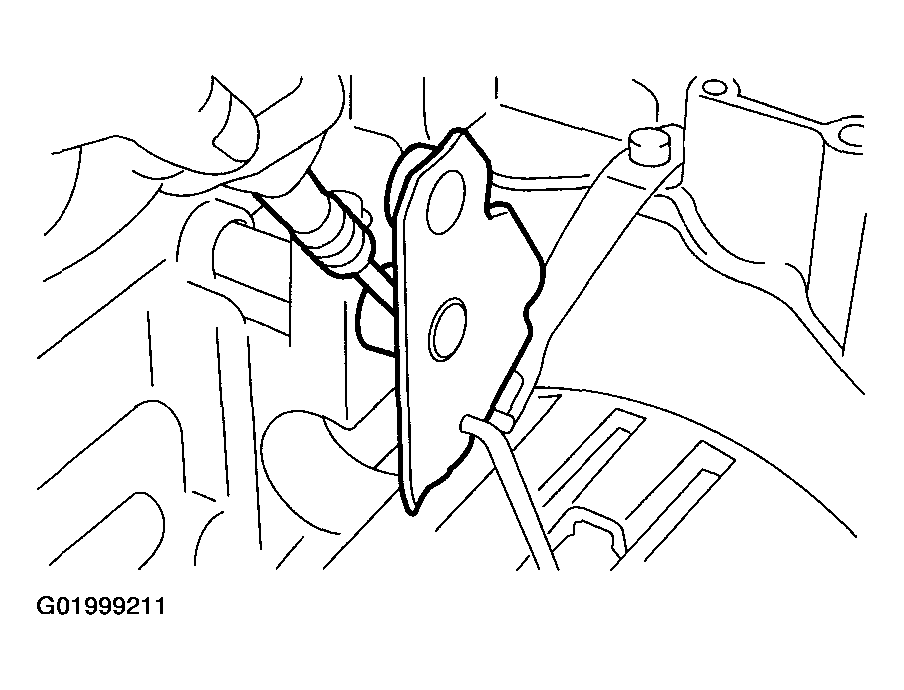

Fig 4: Inserting Spring Pin To Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install control valve assembly and oil pan. See INSTALLATION , Control Valve Body.
Turn over the transmission case to its original position.
Install pitching stopper bracket.
1. Tightening torque: 41 N.m (4.2 kgf-m, 30.4 ft-lb)
Install inhibitor switch and adjust the inhibitor switch. See INSTALLATION , Inhibitor Switch.
Insert inhibitor switch and transmission connector into stay.

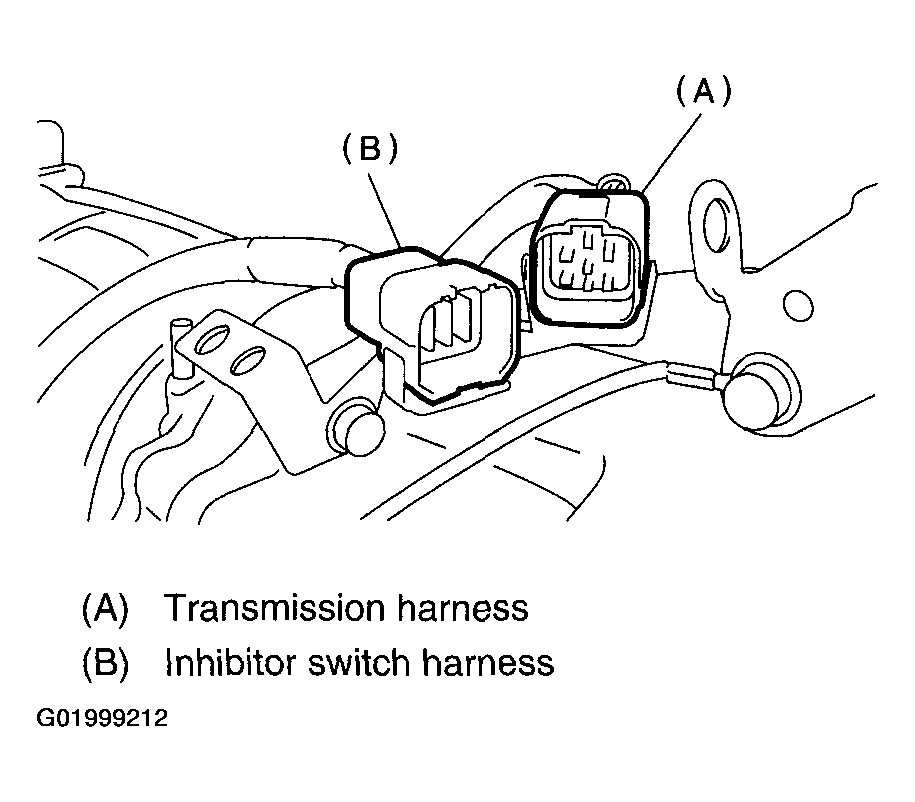

Fig 5: Inserting Inhibitor Switch & Transmission Connector Into Stay
Courtesy of SUBARU OF AMERICA, INC.
Install air breather hose. See INSTALLATION , Air Breather Hose.
Insert the input shaft while turning lightly by hand. At this time, not to damage the bushing.
1. Normal protrusion A: 50 - 55 mm (1.97 - 2.17 in)

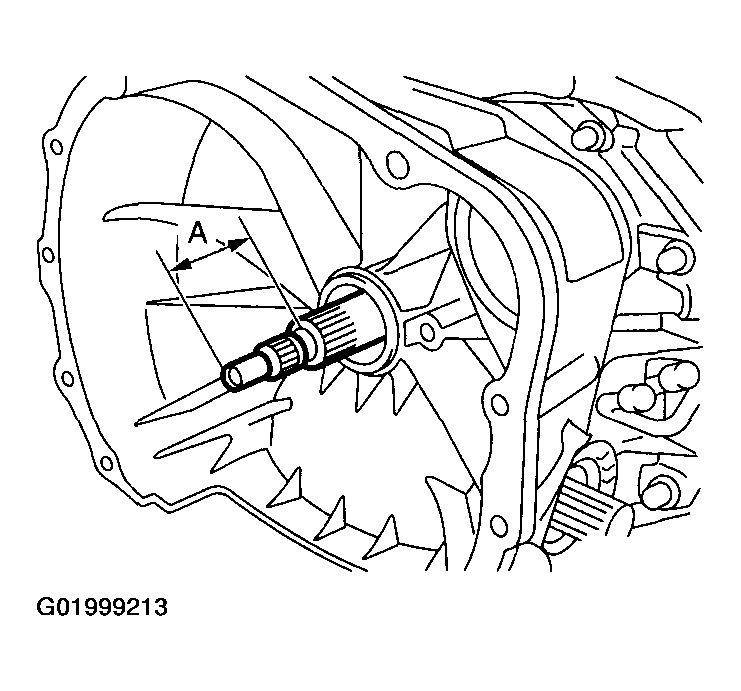

Fig 6: Inserting Input Shaft While Turning Lightly By Hand
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. See INSTALLATION , Torque Converter Clutch Assembly.
Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
