Transmission Control Module (TCM): Installation

  1. Install the transmission control module.
    1. Tightening torque:  7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

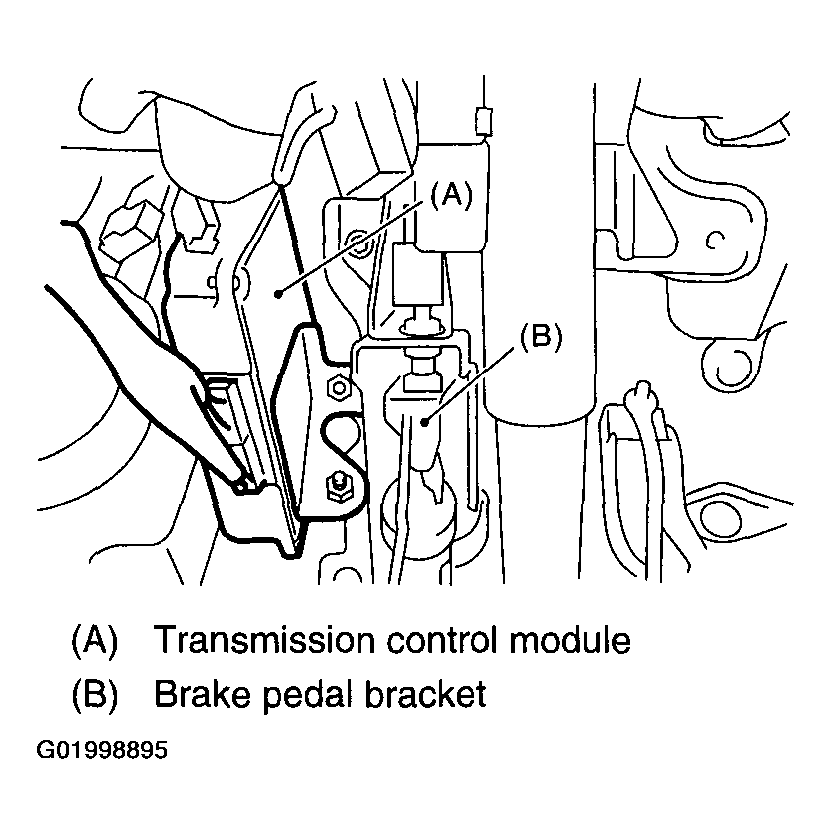

    Fig 1: Installing Transmission Control Module
    G01998895Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the connectors to transmission control module.
  3. Install in the reverse order of removal.
