Home >> Subaru >> 2003 >> Outback Base, 4D Sedan >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Trans >> General Description >> Component >> Differential Gear

Differential Gear

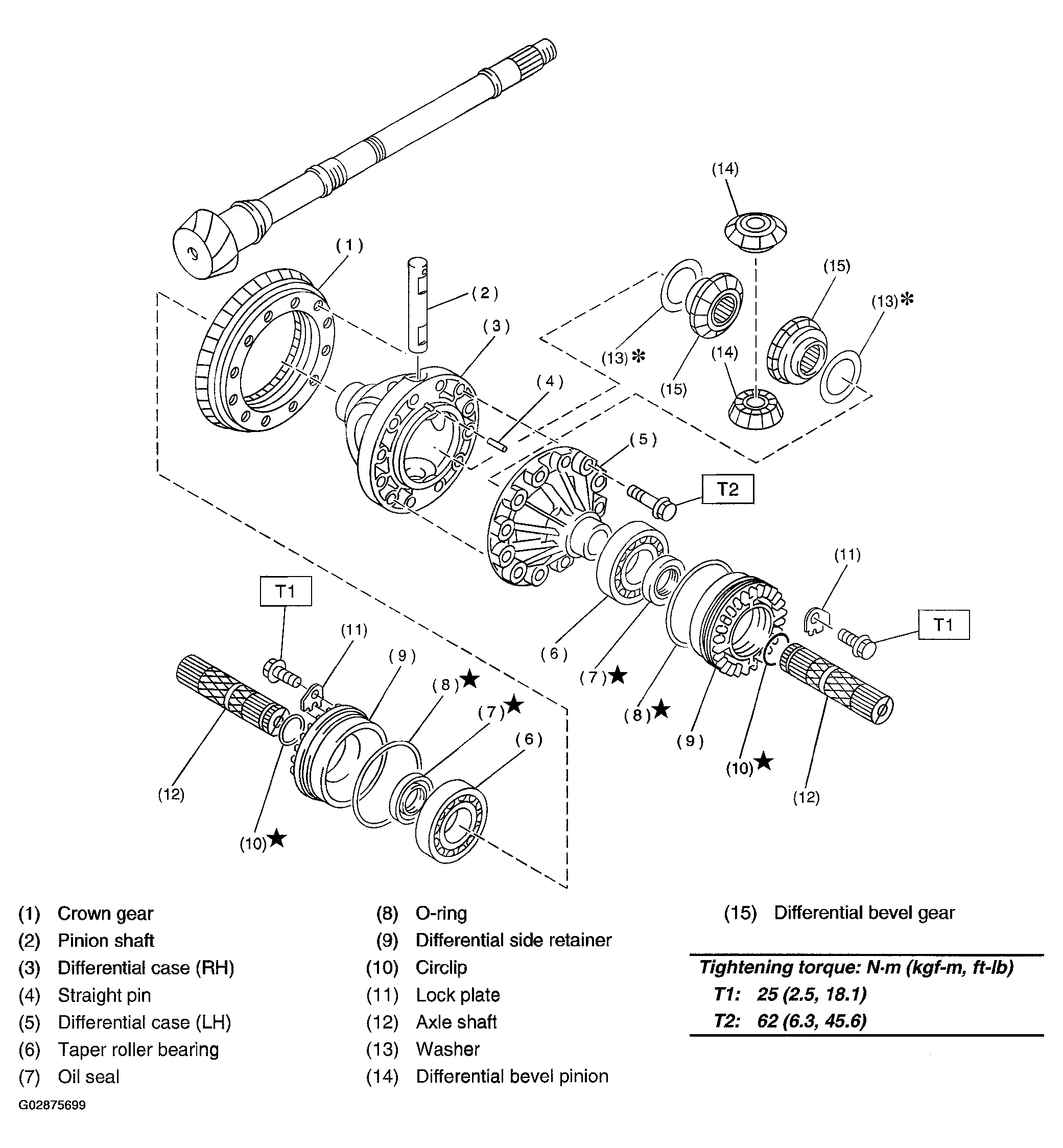

Fig 1: Exploded View Of Differential Gear With Torque Specifications

G02875699

Courtesy of SUBARU OF AMERICA, INC.
