Transmission Mounting

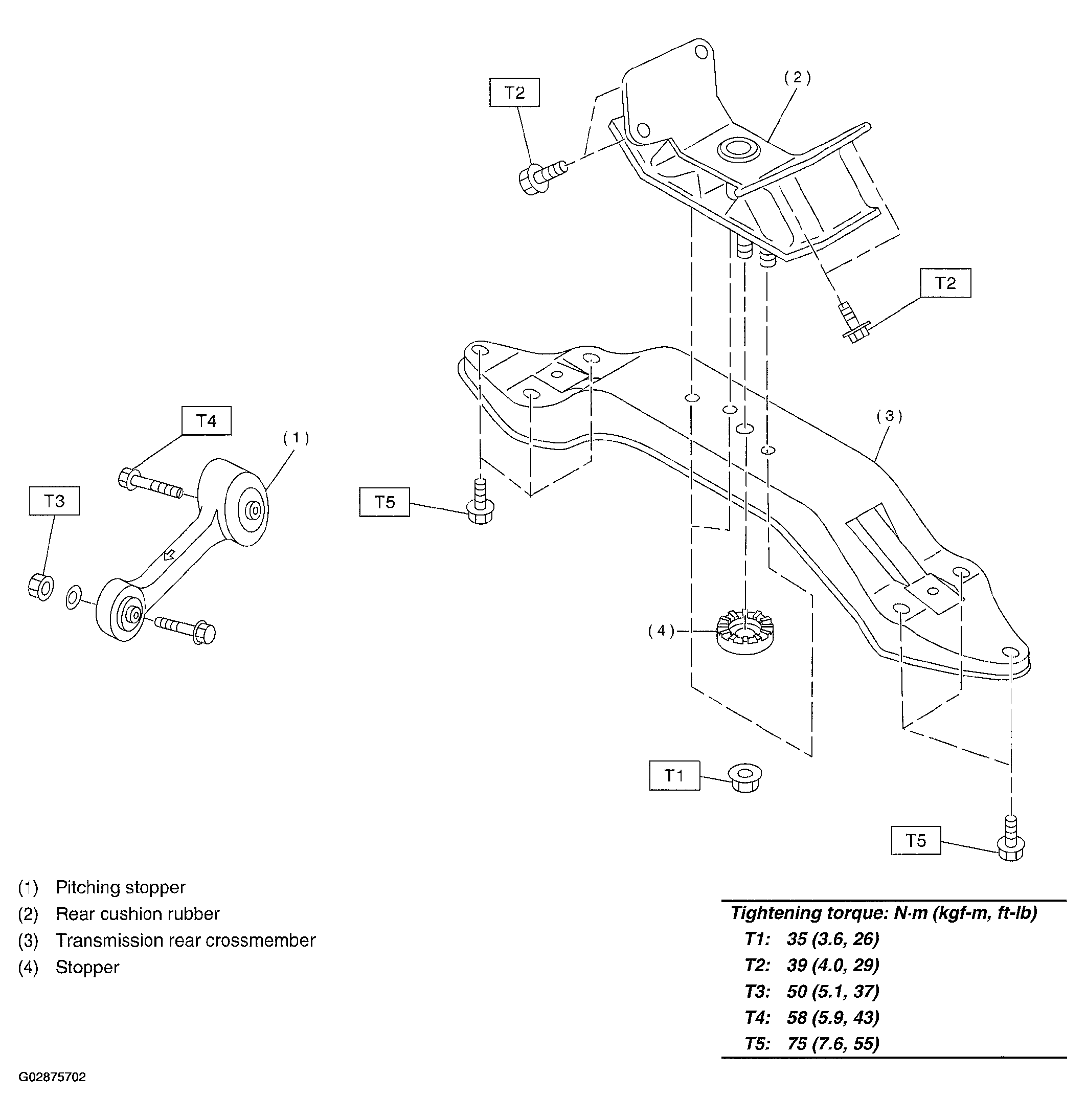

Fig 1: Exploded View Of Transmission Mounting With Torque Specifications

G02875702

Courtesy of SUBARU OF AMERICA, INC.
