Oil Pump: Assembly

  1. Install oil pump rotor assembly to oil pump housing.

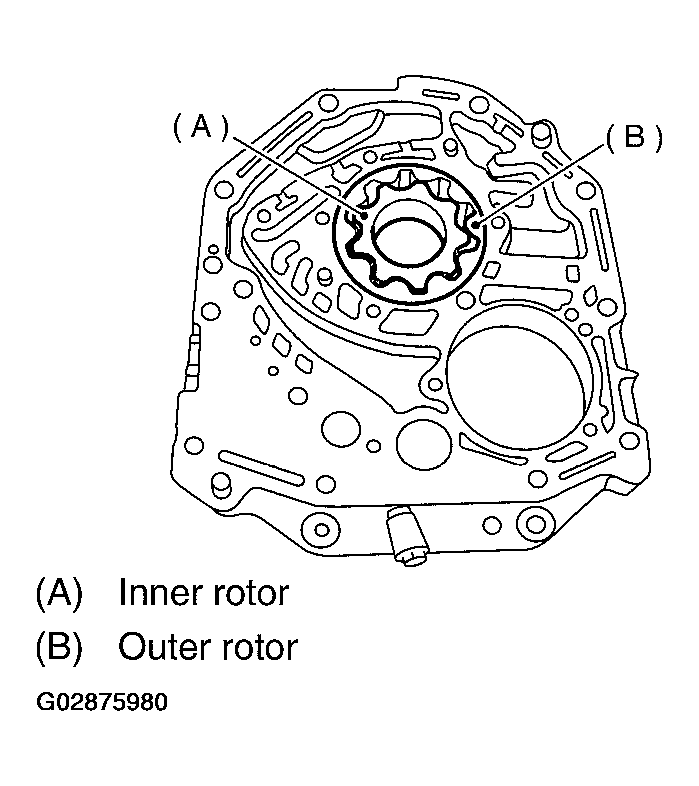

    Fig 1: Installing Oil Pump Rotor Assembly
    G02875980Courtesy of SUBARU OF AMERICA, INC.
  2. Align both pivots with the pivot holes of the cover, and install the oil pump cover being careful not to apply undue force to the pivots.
    1. Tightening torque:  25 N.m (23 kgf-m, 18.1 ft-lb)

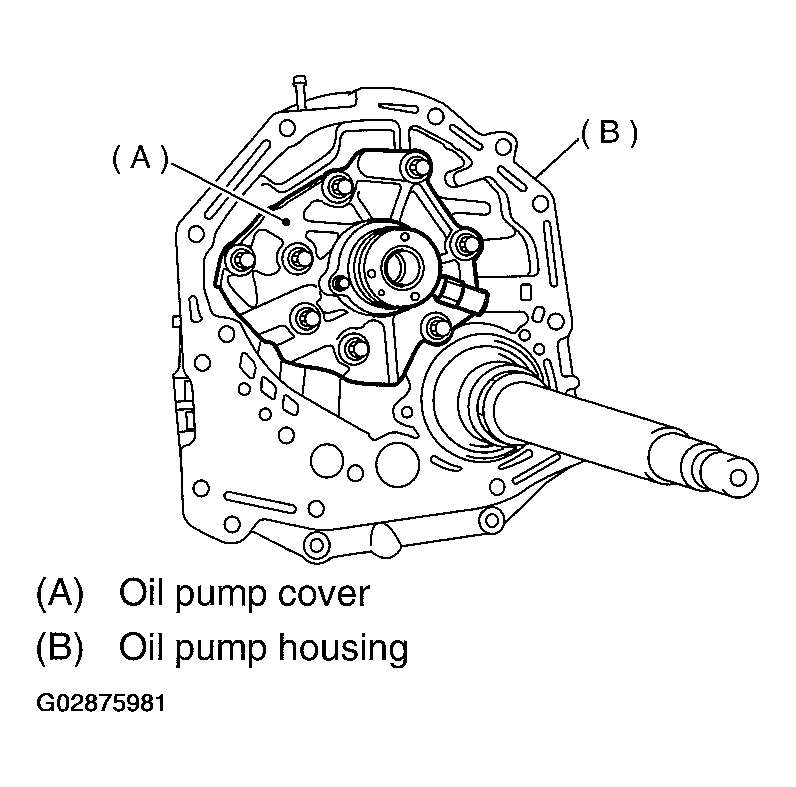

    Fig 2: Installing Oil Pump Cover
    G02875981Courtesy of SUBARU OF AMERICA, INC.
  3. After assembling, turn the oil pump shaft to check for smooth rotation of the rotor.
  4. Install the oil seal retainer and new seal rings. After adjusting the drive pinion backlash and tooth contact. < Ref. to ADJUSTMENT , Oil Pump.>

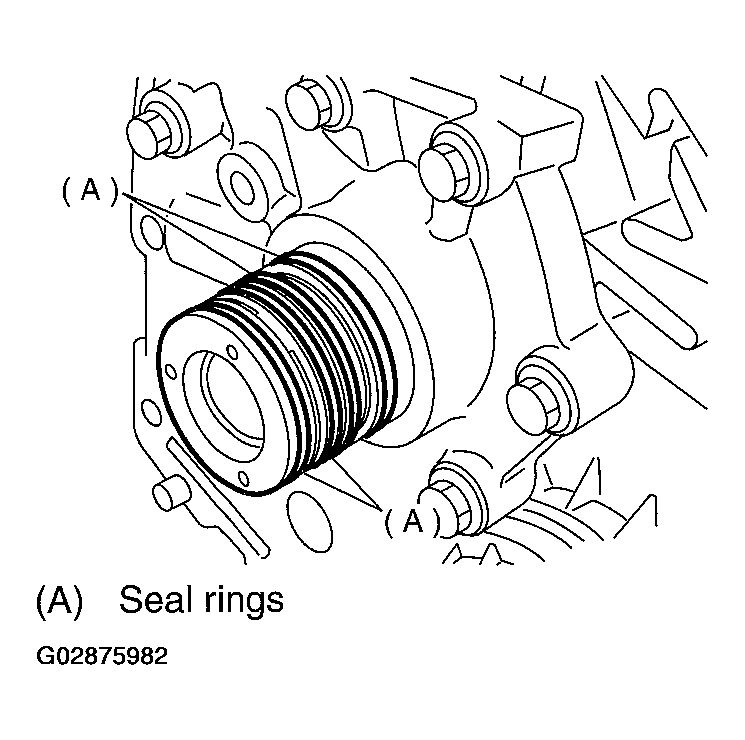

    Fig 3: Installing Oil Seal Retainer & New Seal Rings
    G02875982Courtesy of SUBARU OF AMERICA, INC.
