Crankshaft Position Sensor: Removal

  1. Disconnect battery ground cable.

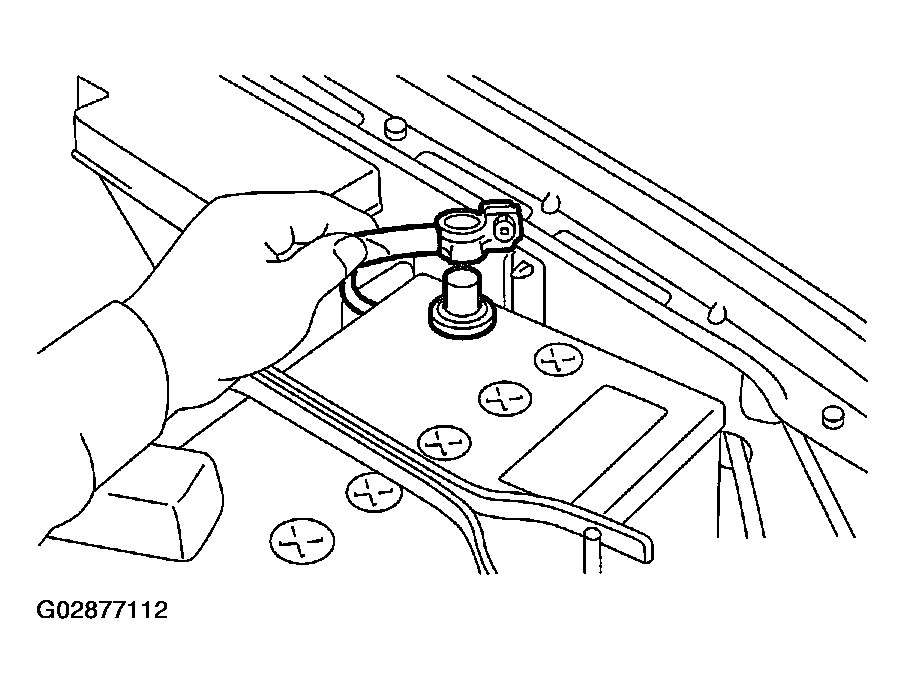

    Fig 1: Disconnecting Battery Ground Cable
    G02877112Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air intake chamber.

    < Ref. to REMOVAL , Air Intake Chamber.>

  3. Remove engine harness bracket from intake manifold.

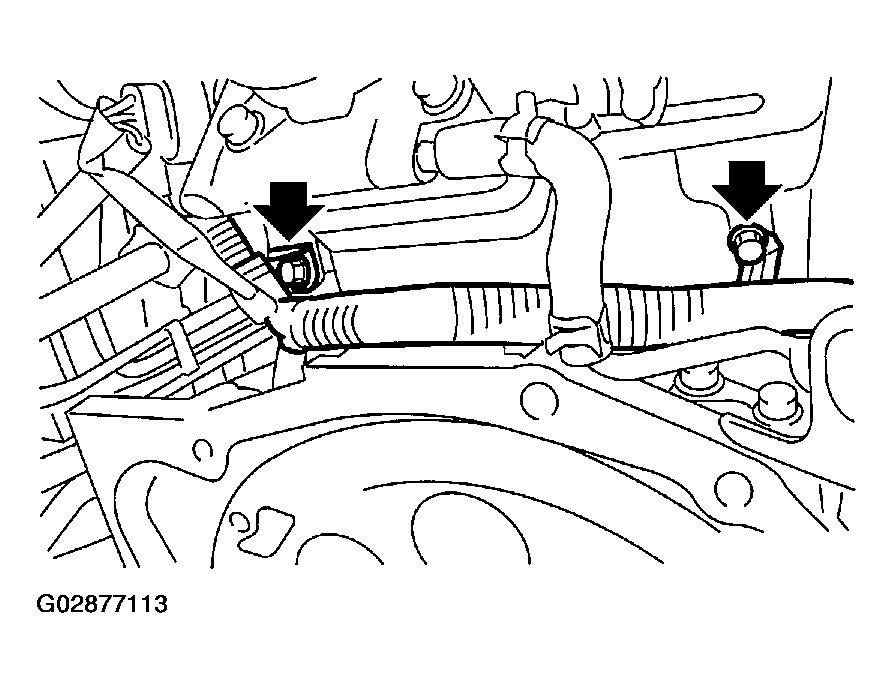

    Fig 2: Removing Engine Harness Bracket From Intake Manifold
    G02877113Courtesy of SUBARU OF AMERICA, INC.
  4. Remove service hole cover.

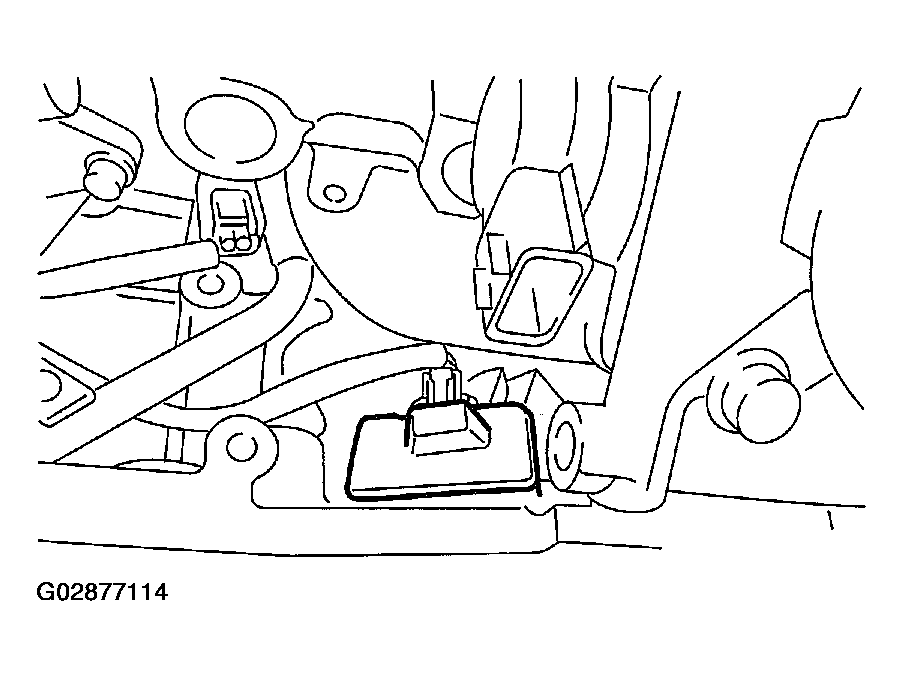

    Fig 3: Removing Service Hole Cover
    G02877114Courtesy of SUBARU OF AMERICA, INC.
  5. Remove bolt which install crankshaft position sensor to cylinder block.
  6. Remove crankshaft position sensor, and disconnect connector from it.

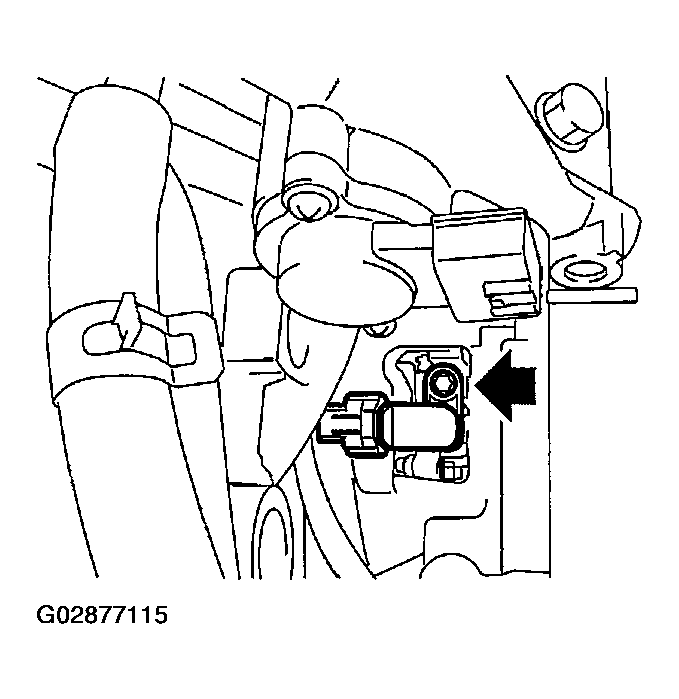

    Fig 4: Removing Crankshaft Position Sensor
    G02877115Courtesy of SUBARU OF AMERICA, INC.
