Engine Coolant Temperature Sensor: Removal

  1. Disconnect battery ground cable.

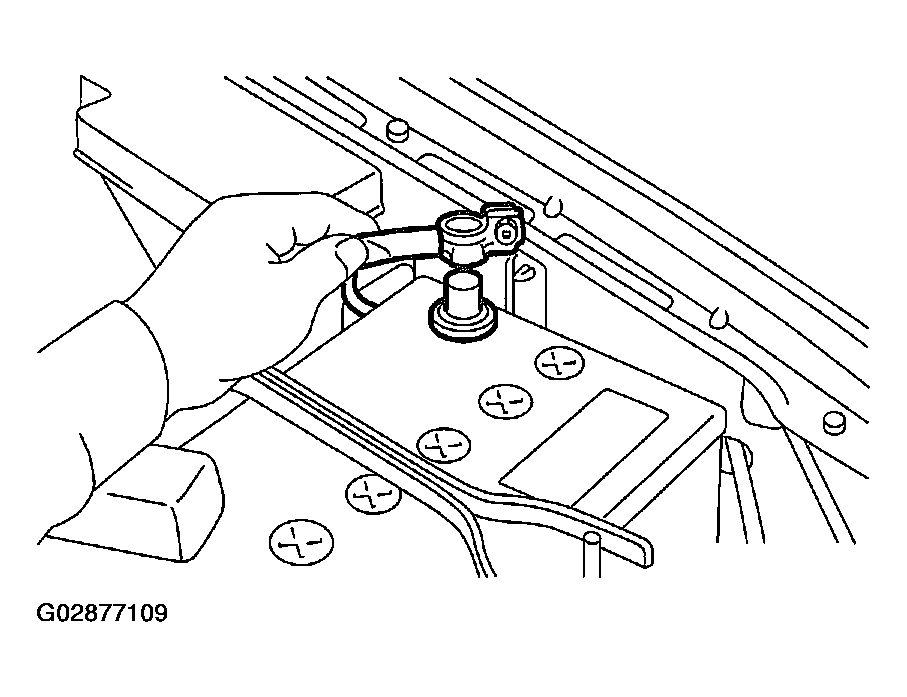

    Fig 1: Disconnecting Battery Ground Cable
    G02877109Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from engine coolant temperature sensor.
  3. Remove engine coolant temperature sensor.

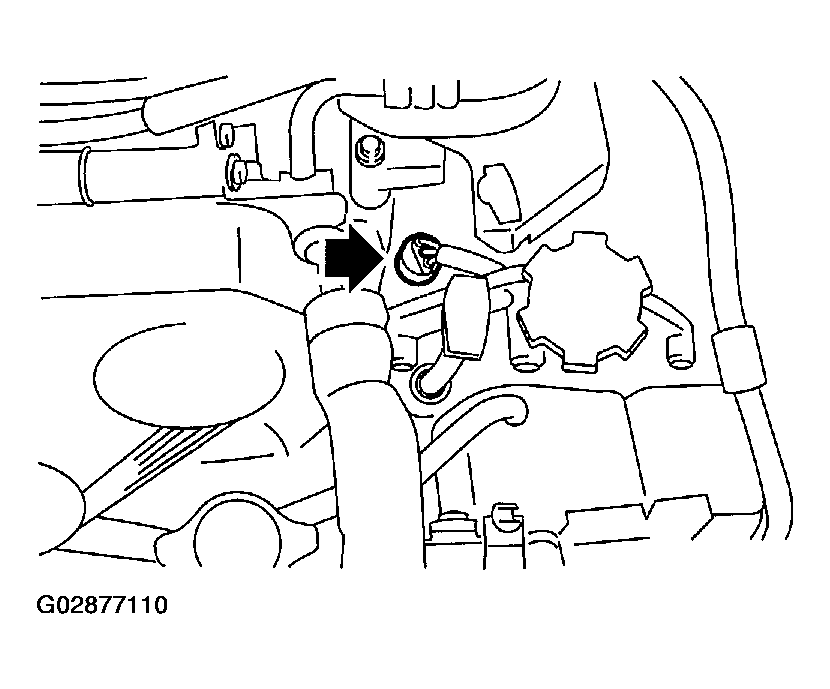

    Fig 2: Removing Engine Coolant Temperature Sensor
    G02877110Courtesy of SUBARU OF AMERICA, INC.
