LH Side

Install in the reverse order of removal.

NOTE: Replace O-rings and insulators with new ones.

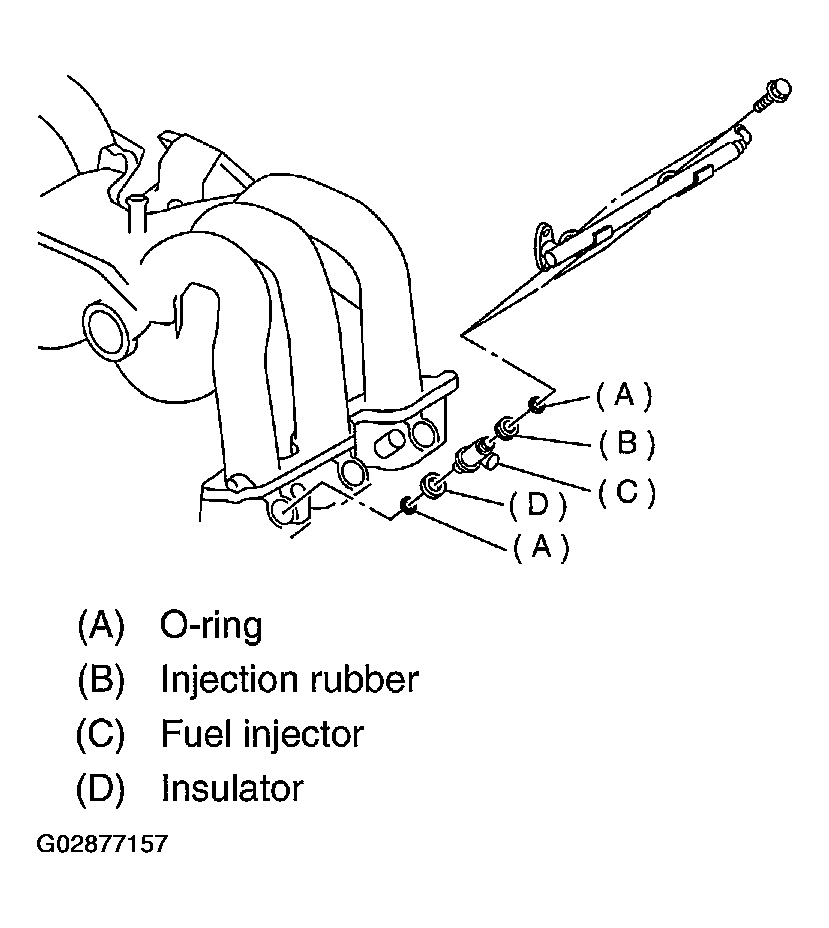

Fig 1: Replacing O-Rings & Insulators

G02877157

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)

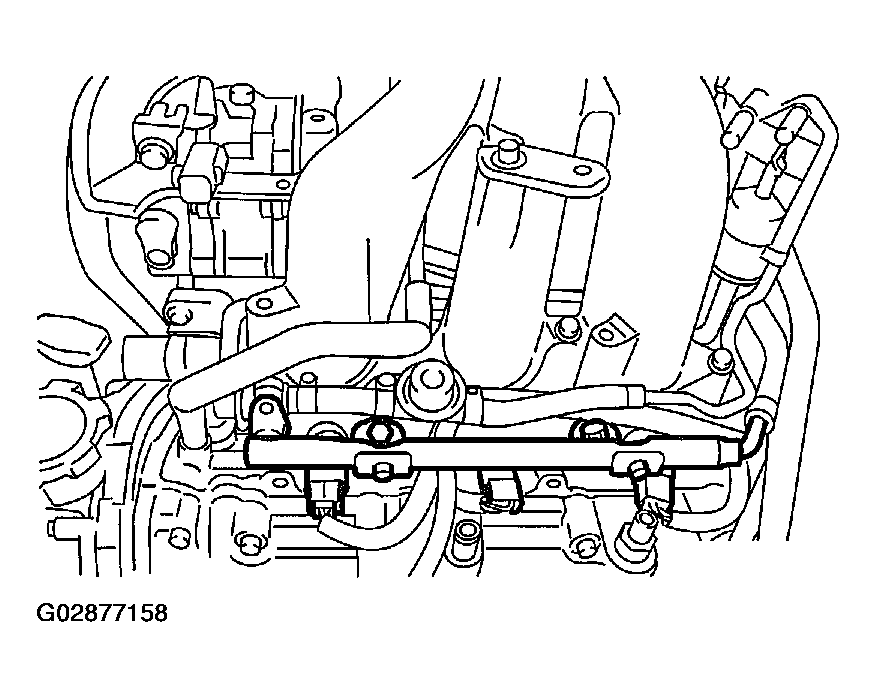

Fig 2: Installing Injector Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)

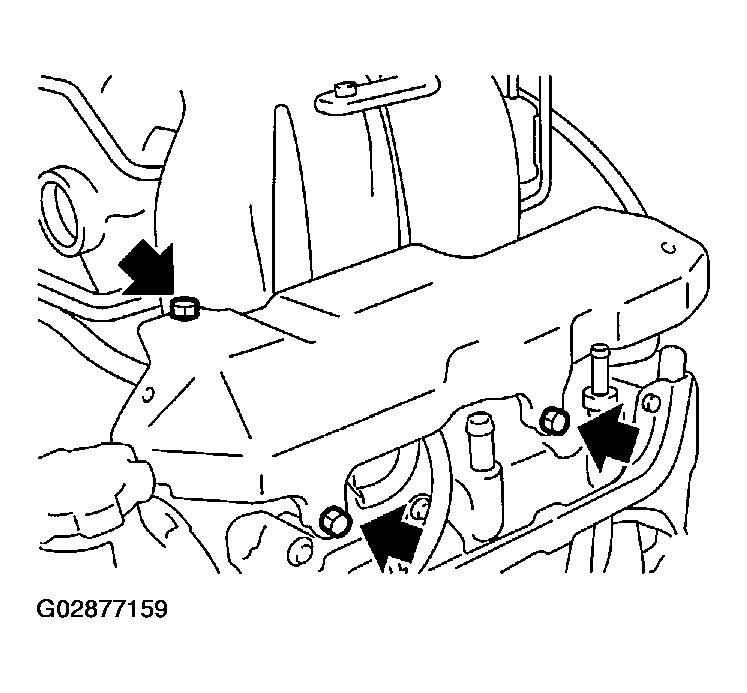

Fig 3: Installing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.
