Home >> Subaru >> 2003 >> Outback L.L. Bean Edition >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems, H6DO) >> General Description >> Component >> Intake Manifold

Intake Manifold

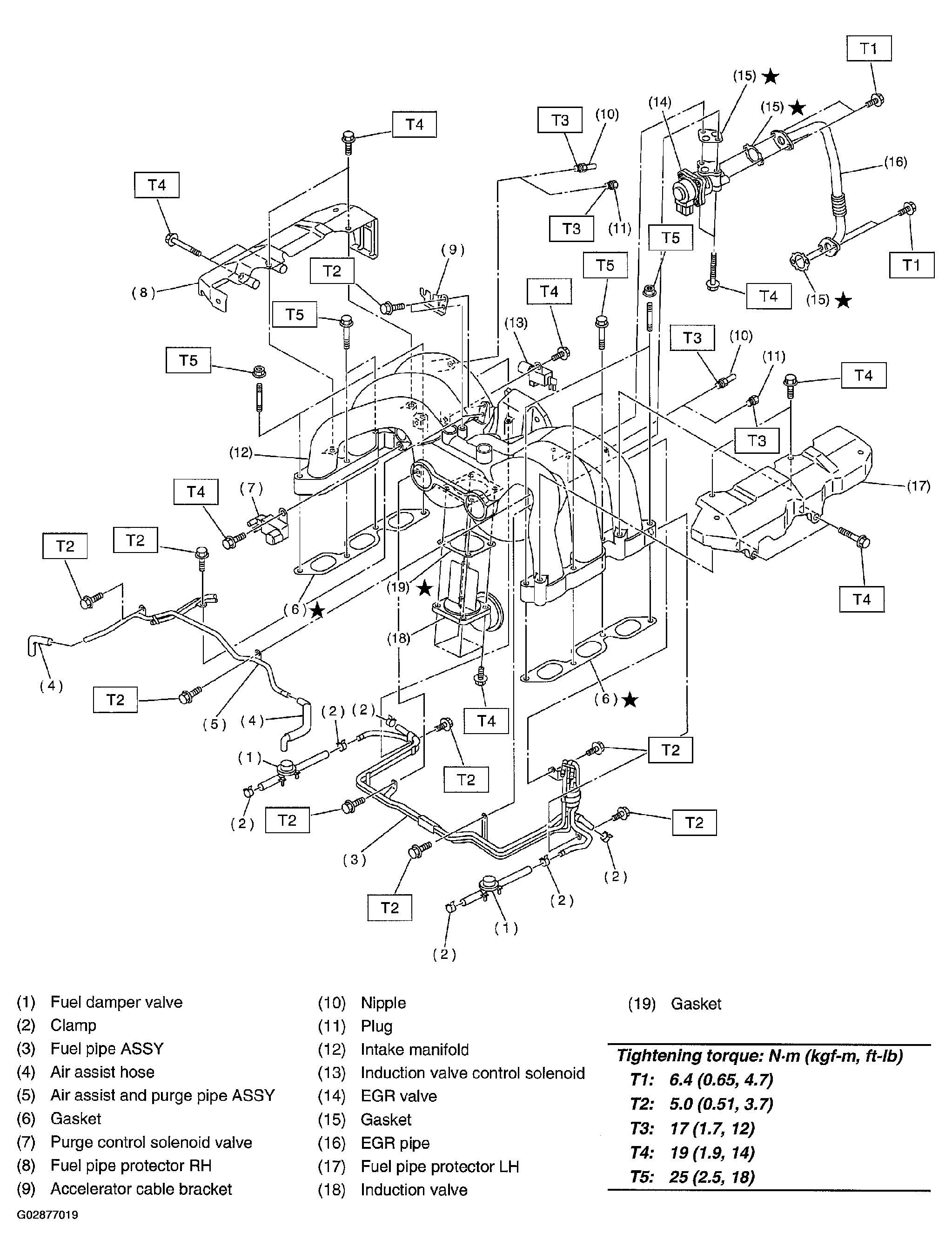

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
G02877019Courtesy of SUBARU OF AMERICA, INC.
